Headlamp
>>
System Diagram
>>
Headlamp Park Position Lamp
Headlamp Park Position Lamp

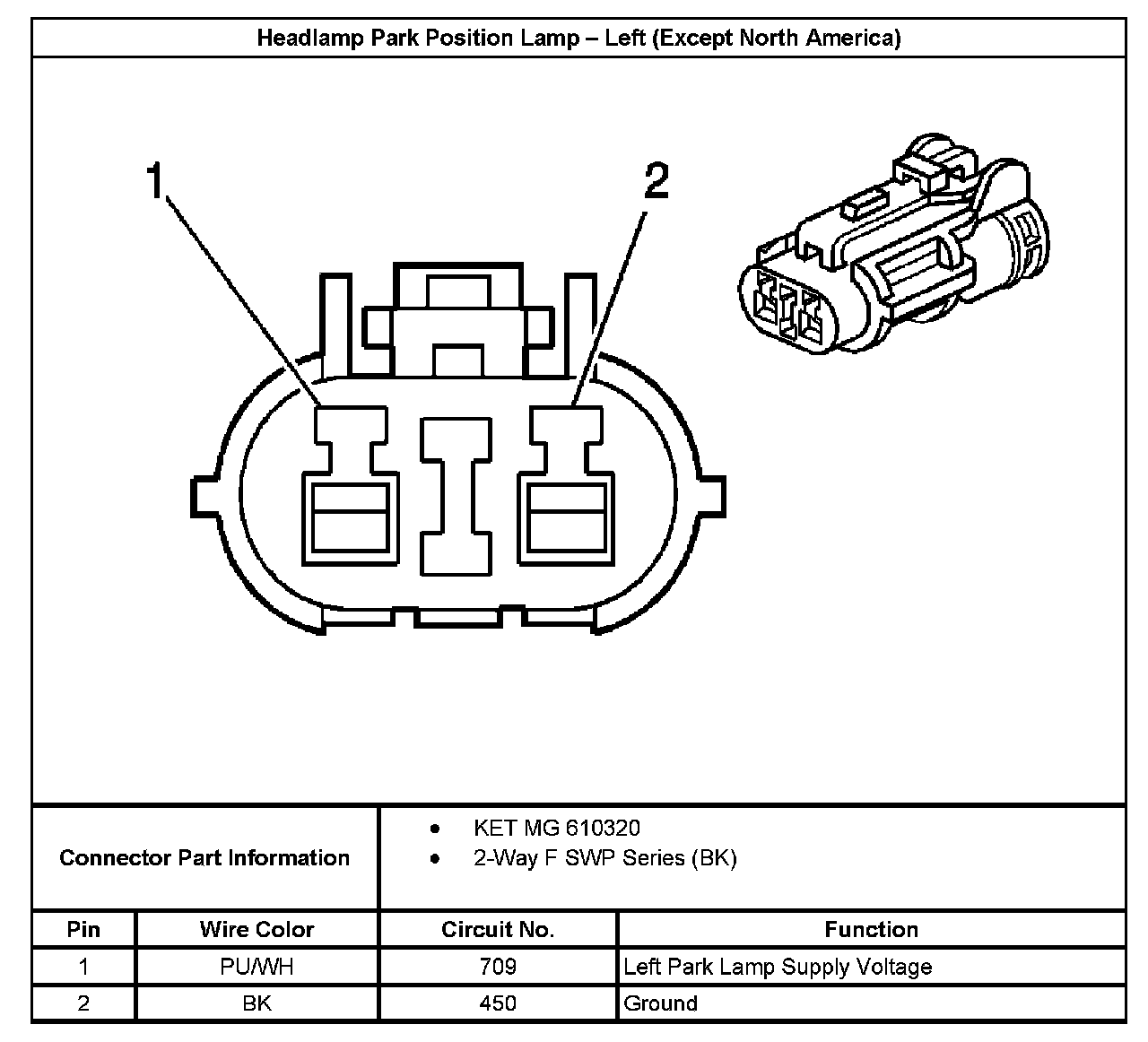

Headlamp Park Position Lamp - Left (Except North America):

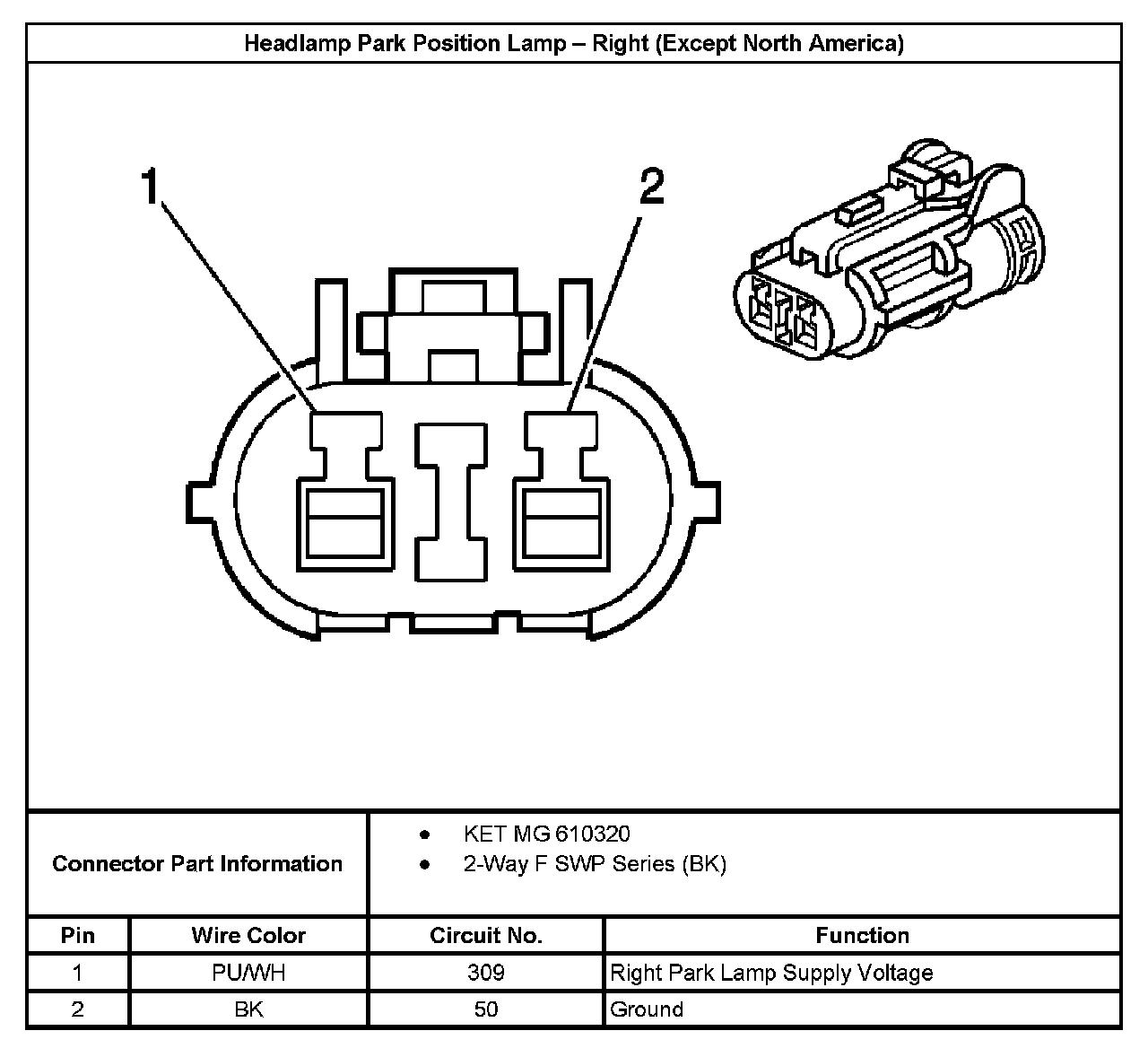

Headlamp Park Position Lamp - Right (Except North America):
