C416
C416

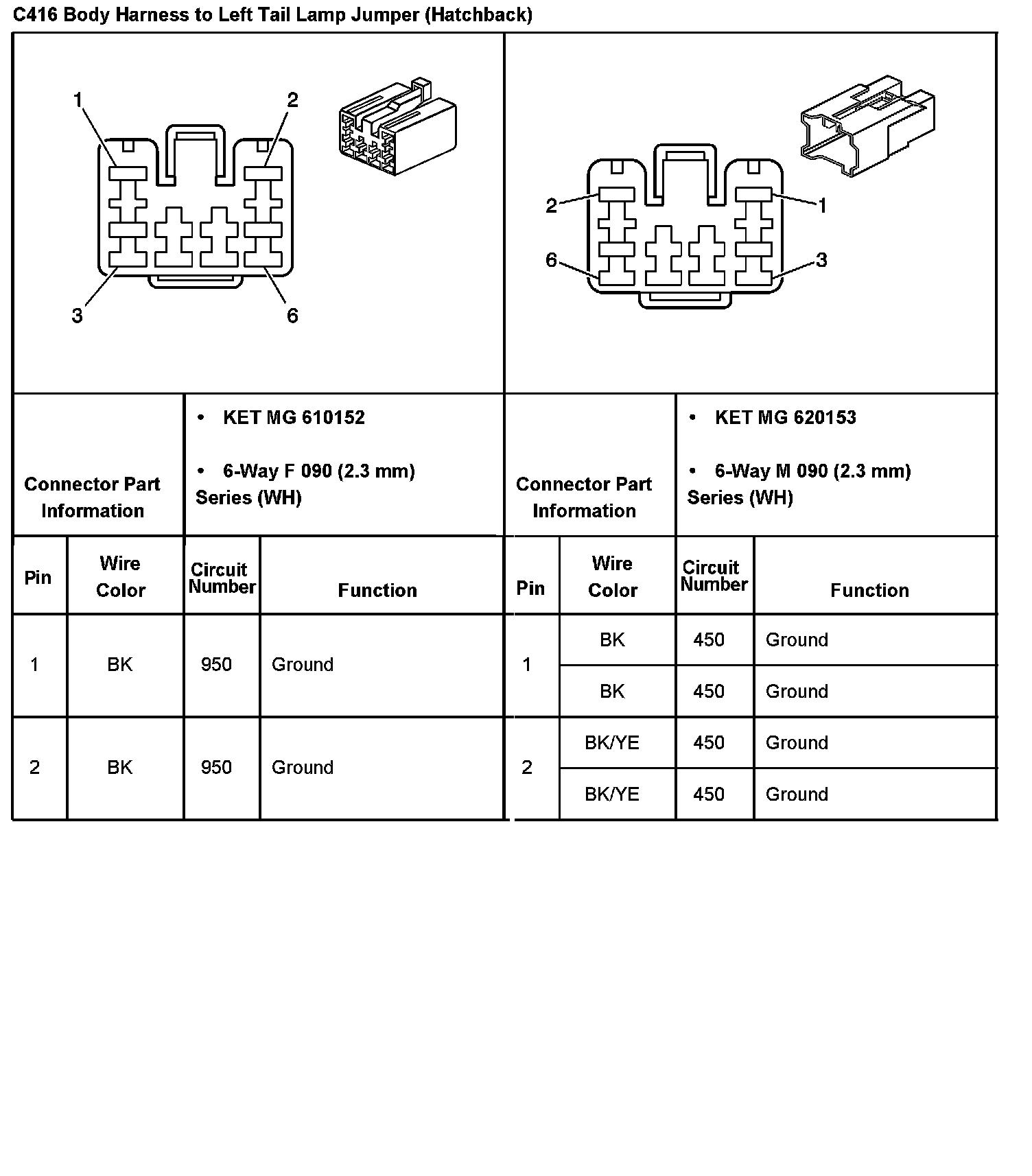

C416 Body Harness To Left Tail Lamp Jumper (Hatchback) Part 1:

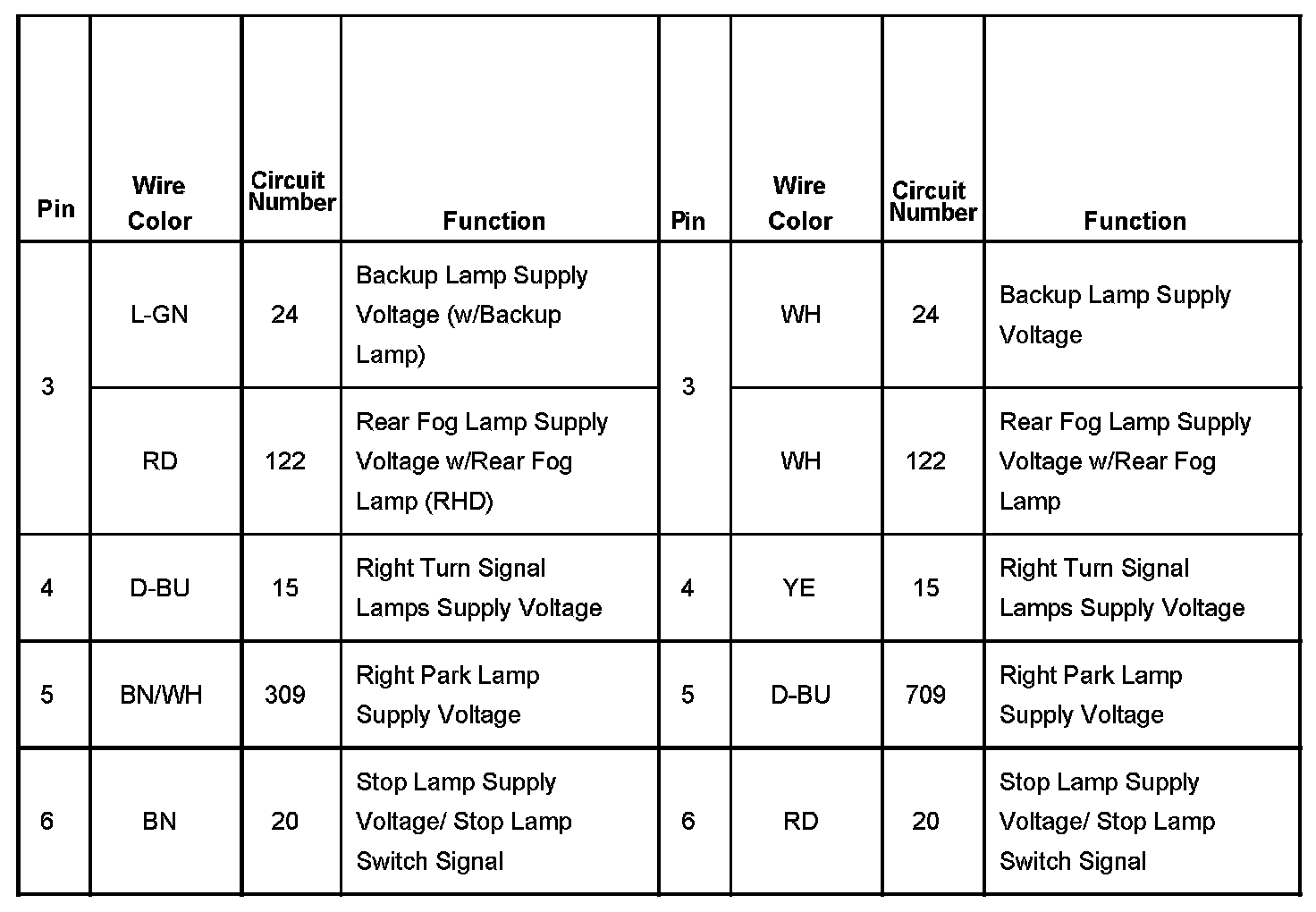

C416 Body Harness To Left Tail Lamp Jumper (Hatchback) Part 2:

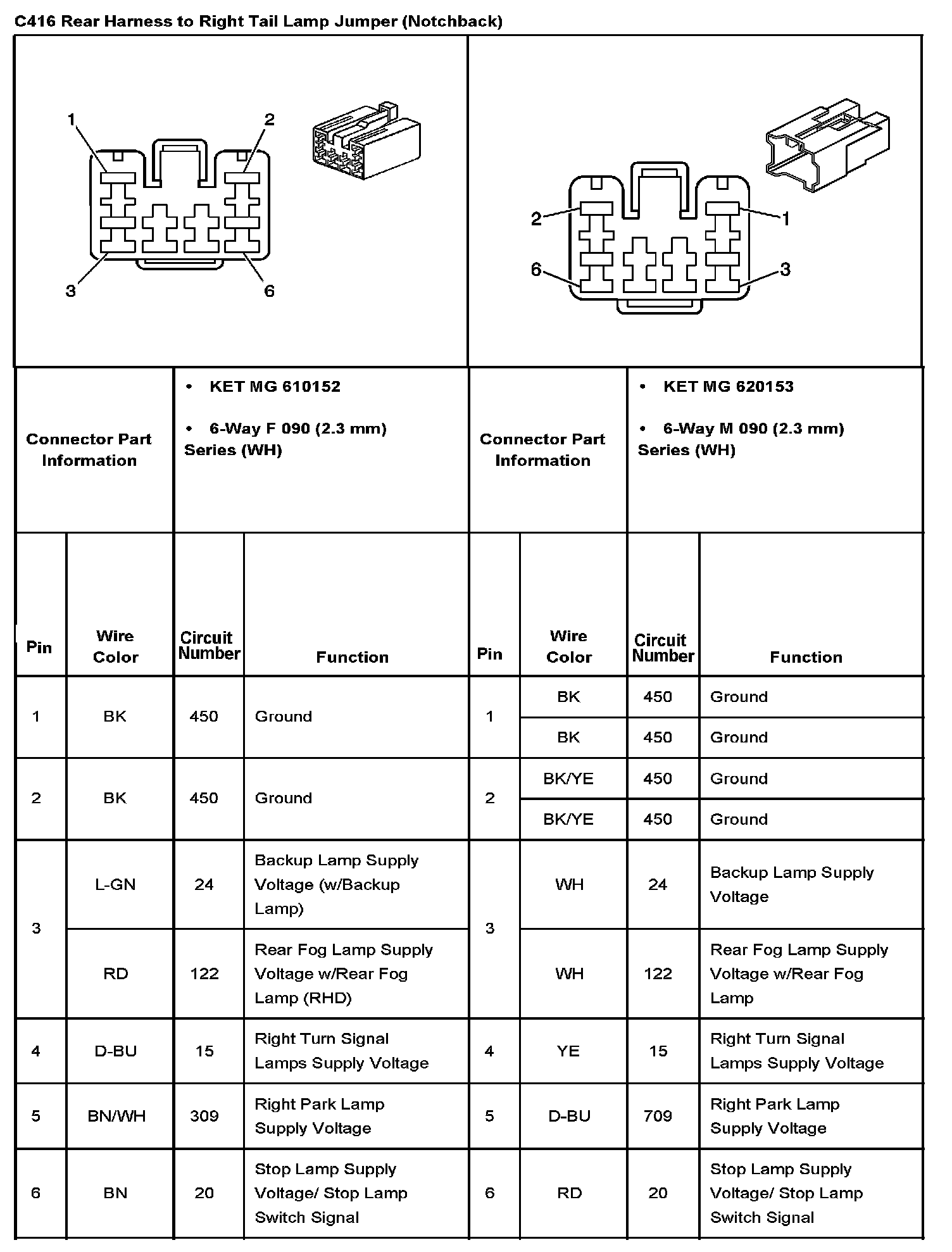

C416 Rear Harness To Right Tail Lamp Jumper (Notchback):
