C201
C201

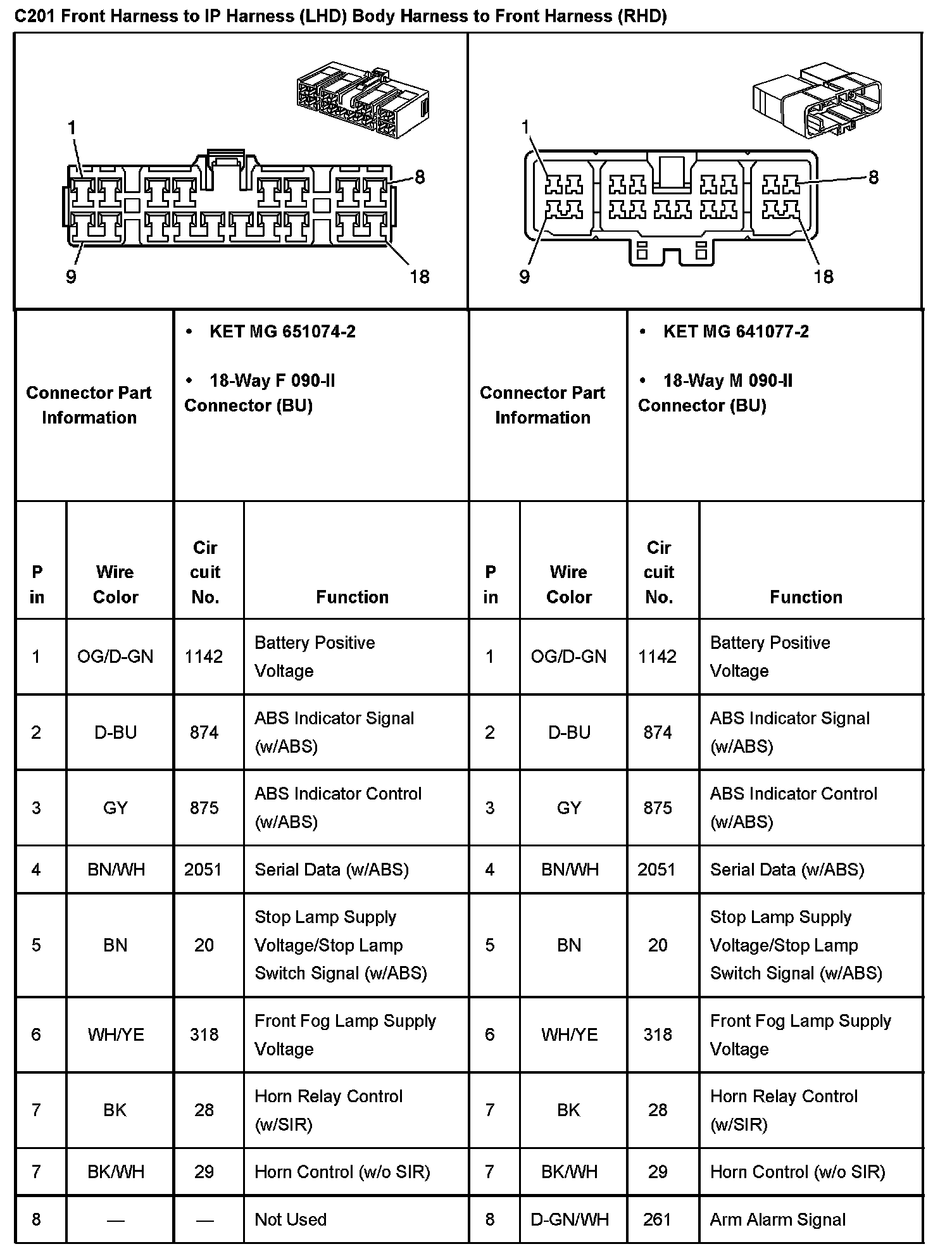

C201 Front Harness To IP Harness (LHD) Body Harness To Front Harness (RHD) Part 1:
C201 Front Harness To IP Harness (LHD) Body Harness To Front Harness (RHD) Part 2:
