Clock Replacement - Console

CLOCK REPLACEMENT - CONSOLE

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution







1. Disconnect the negative battery cable.
2. Remove the instrument panel center upper cover.

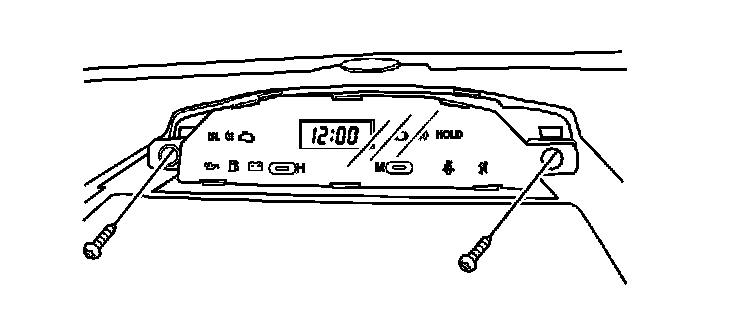

3. Remove the screws and the clock.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice

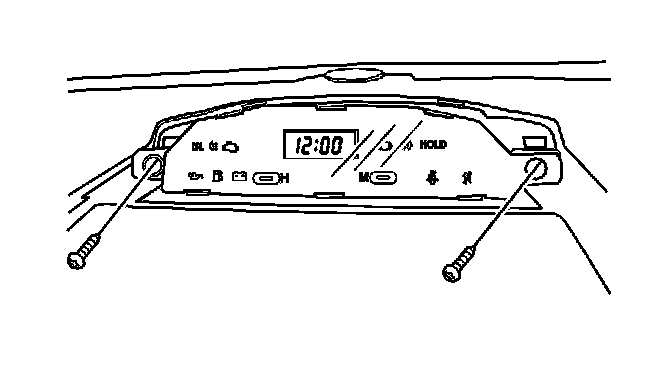

1. Install the clock with the screws.

Tighten
Tighten the clock screws to 2.5 N.m (23 lb in).

2. Install the instrument panel center upper cover.
3. Connect the negative battery cable.
