Trunk / Liftgate Lock Cylinder: Service and Repair

Lock Cylinder Replacement - Rear Compartment Lid

Removal Procedure





1. Remove the hatchback door lower garnish molding, if equipped. Refer to Hatchback Door Lower Garnish Molding Replacement (Garnish Molding Replacement - Hatchback Door Lower) in Interior Trim.
2. Disconnect the lock rod.

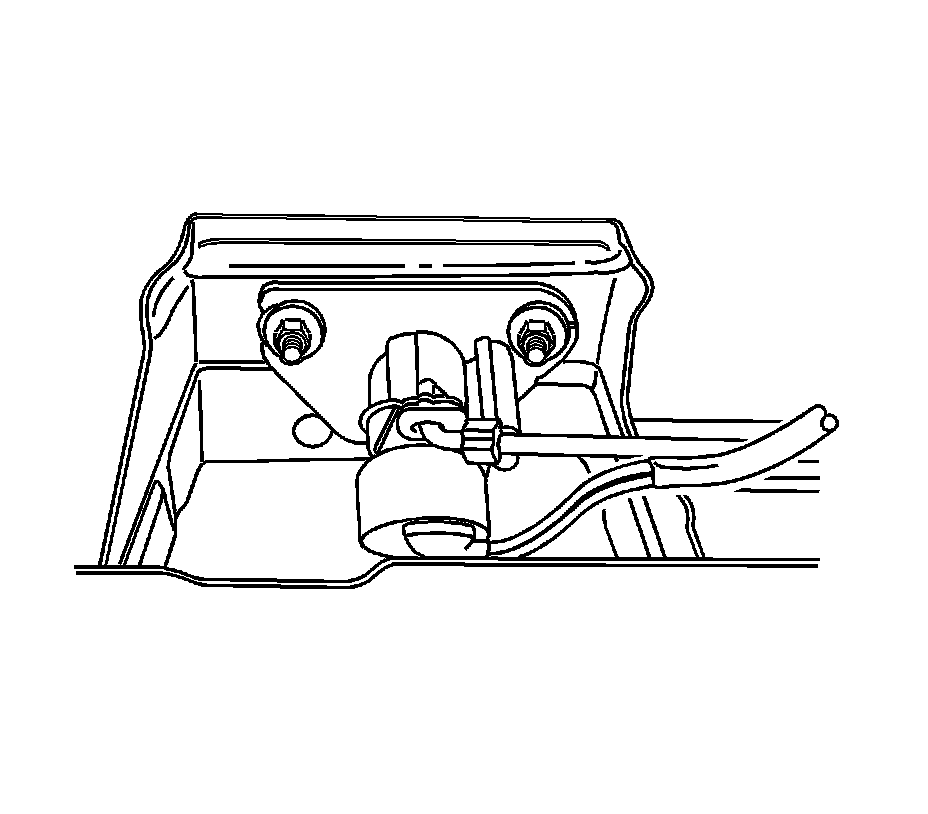

3. Remove the nuts and the lock cylinder.



Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the lock cylinder with the nuts.

Tighten the luggage compartment lock cylinder nuts to 3 N.m (27 lb in).

2. Connect the lock rod.
3. Install the hatchback door lower garnish molding, if equipped. Refer toHatchback Door Lower Garnish Molding Replacement (Garnish Molding Replacement - Hatchback Door Lower) in Interior Trim.
