Home >> Chevrolet >> 2005 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Power Trunk / Liftgate Lock Switch >> Diagrams

Power Trunk / Liftgate Lock Switch: Diagrams

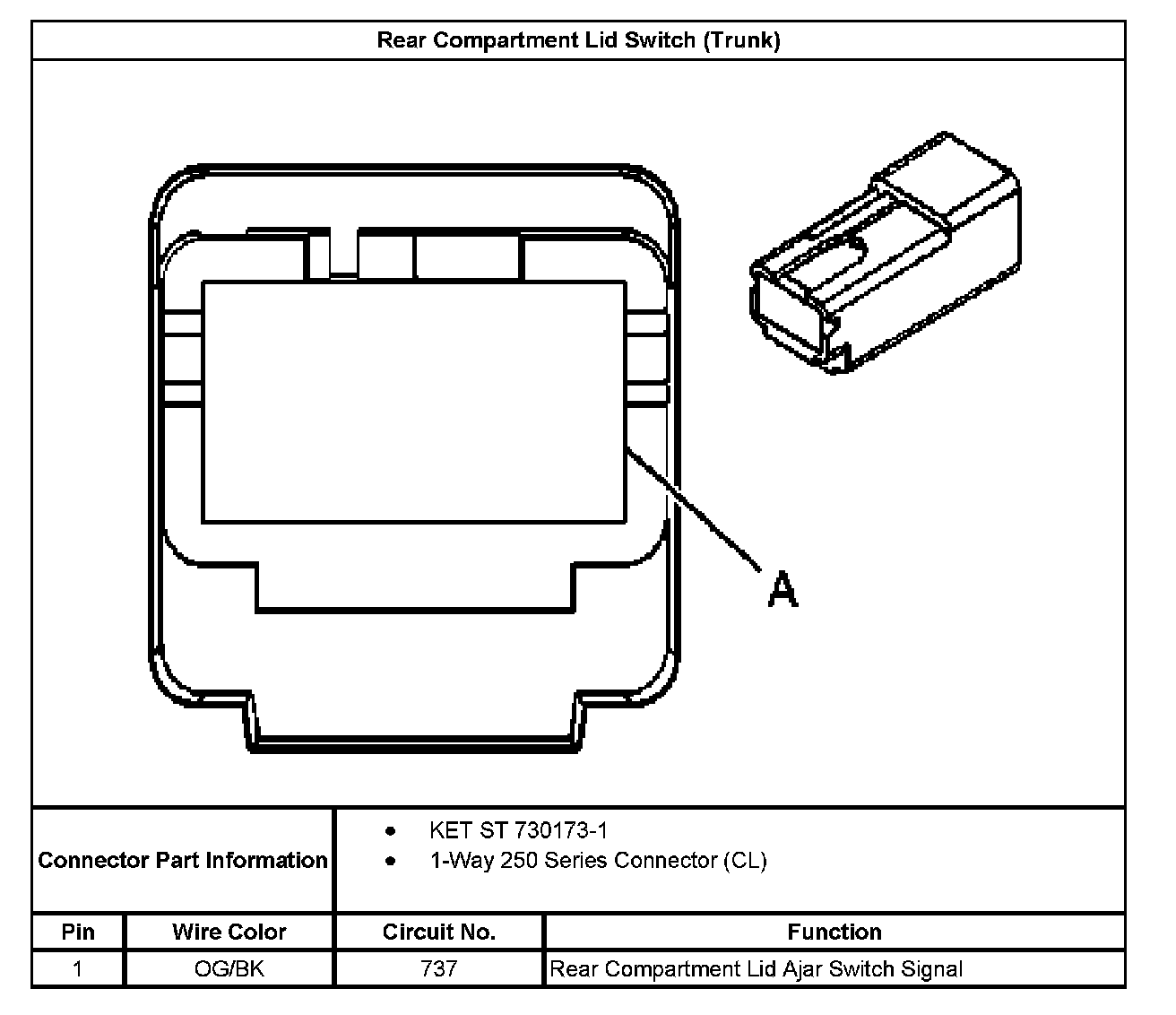

Rear Compartment Lid Switch (Trunk):
