Fuel Pressure Relief Procedure

FUEL PRESSURE RELIEF PROCEDURE

TOOLS REQUIRED
J 34730-1A Fuel Pressure Gage

RELIEF PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the fuel injector sight shield.
3. Loosen the fuel filler cap to relieve tank vapor pressure.

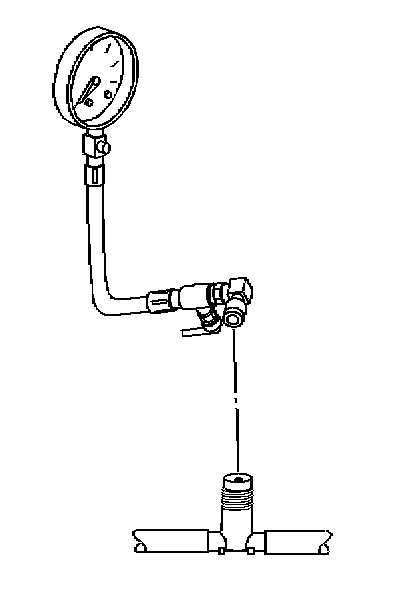

4. Connect the J 34730-1A to the fuel pressure connection. Wrap a shop towel around the fuel pressure connection while connecting the fuel pressure gage in order to avoid spillage.
5. Install the bleed hose into an approved container and open the valve to bleed the system pressure. The fuel connections are now safe for servicing.
6. Drain any fuel remaining in the fuel pressure gage into an approved container.
