Defogger Inoperative - Rear Window

DEFOGGER INOPERATIVE - REAR WINDOW

TEST DESCRIPTION

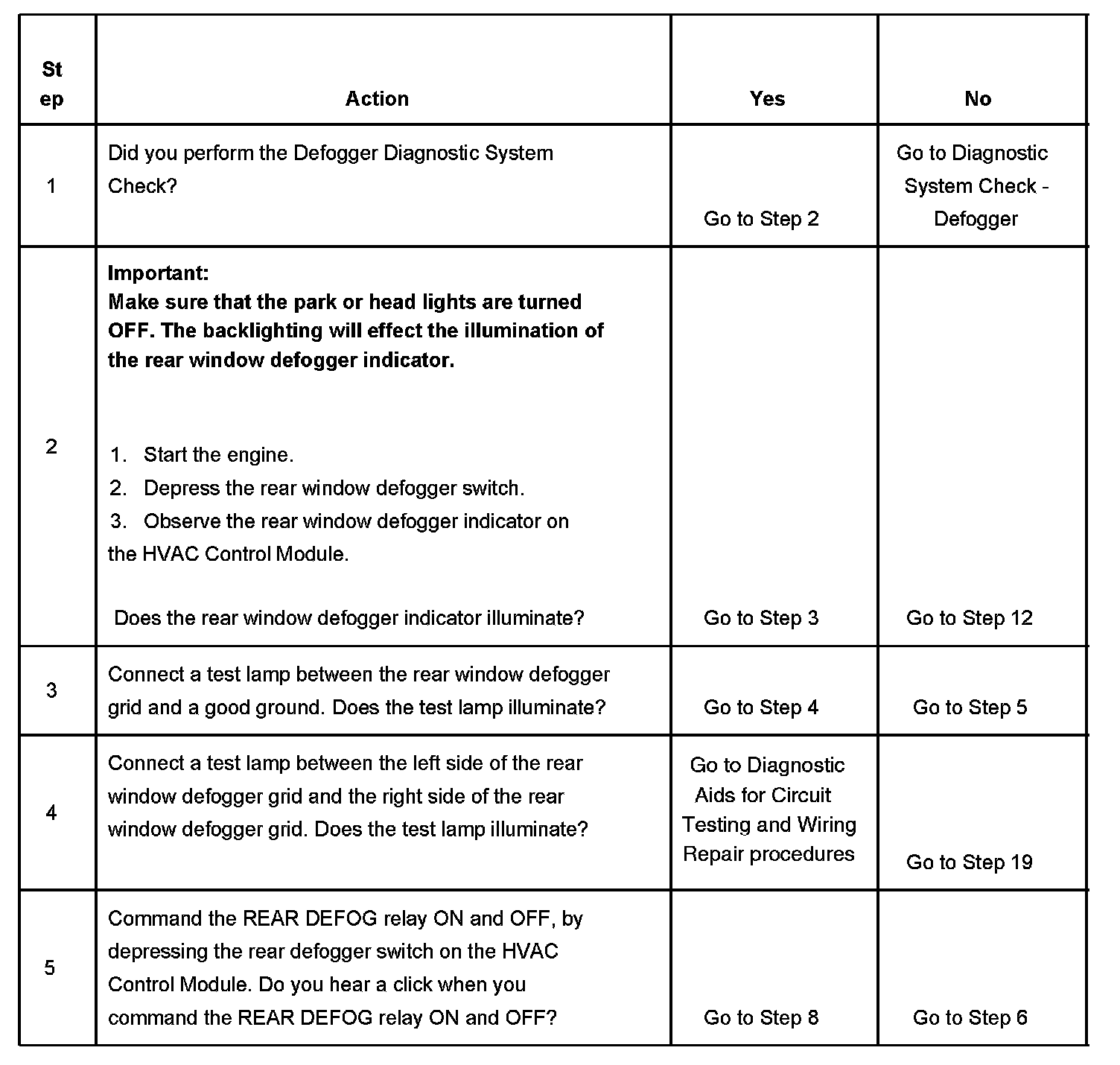

Steps 1 - 5:

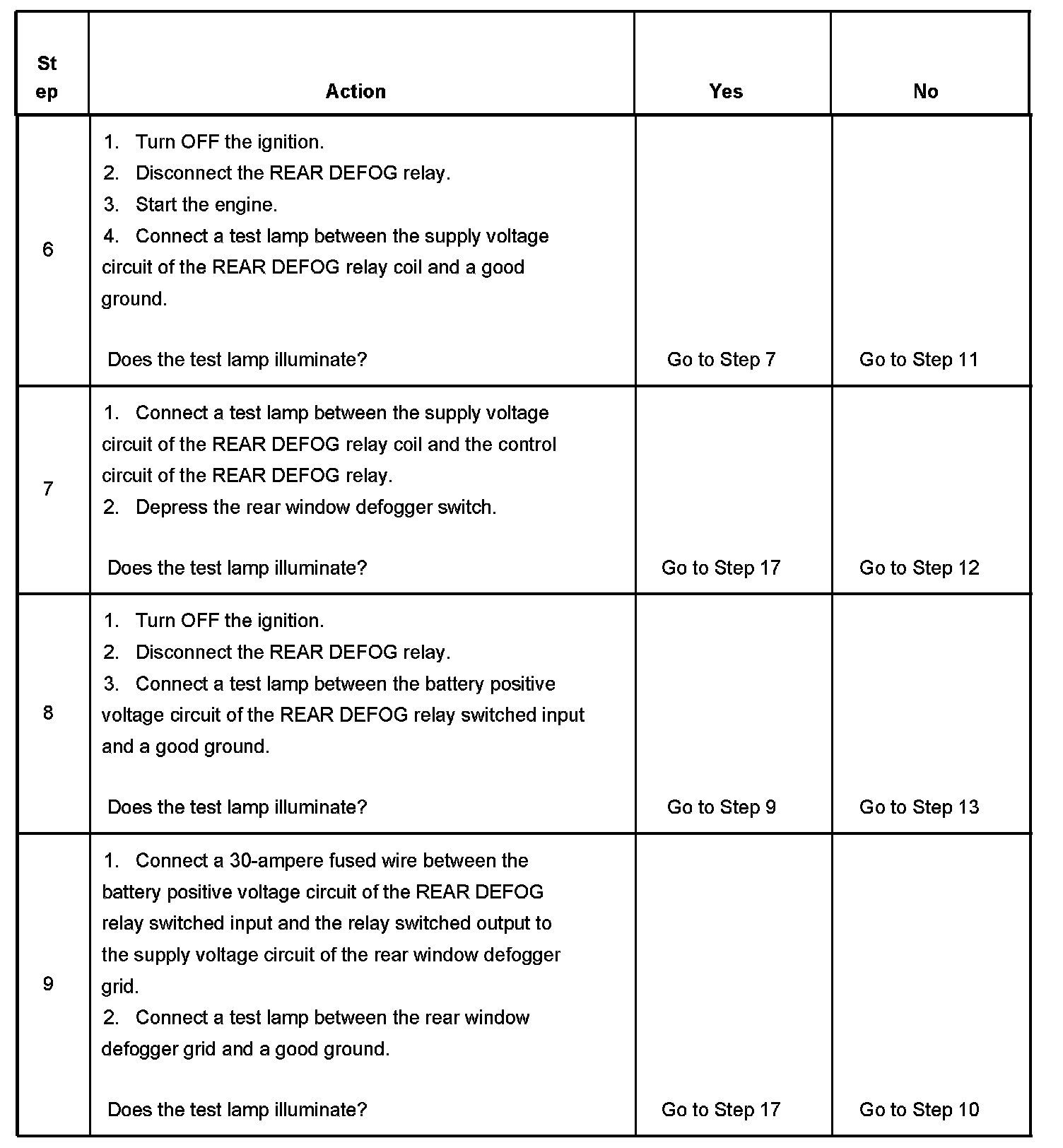

Steps 6 - 9:

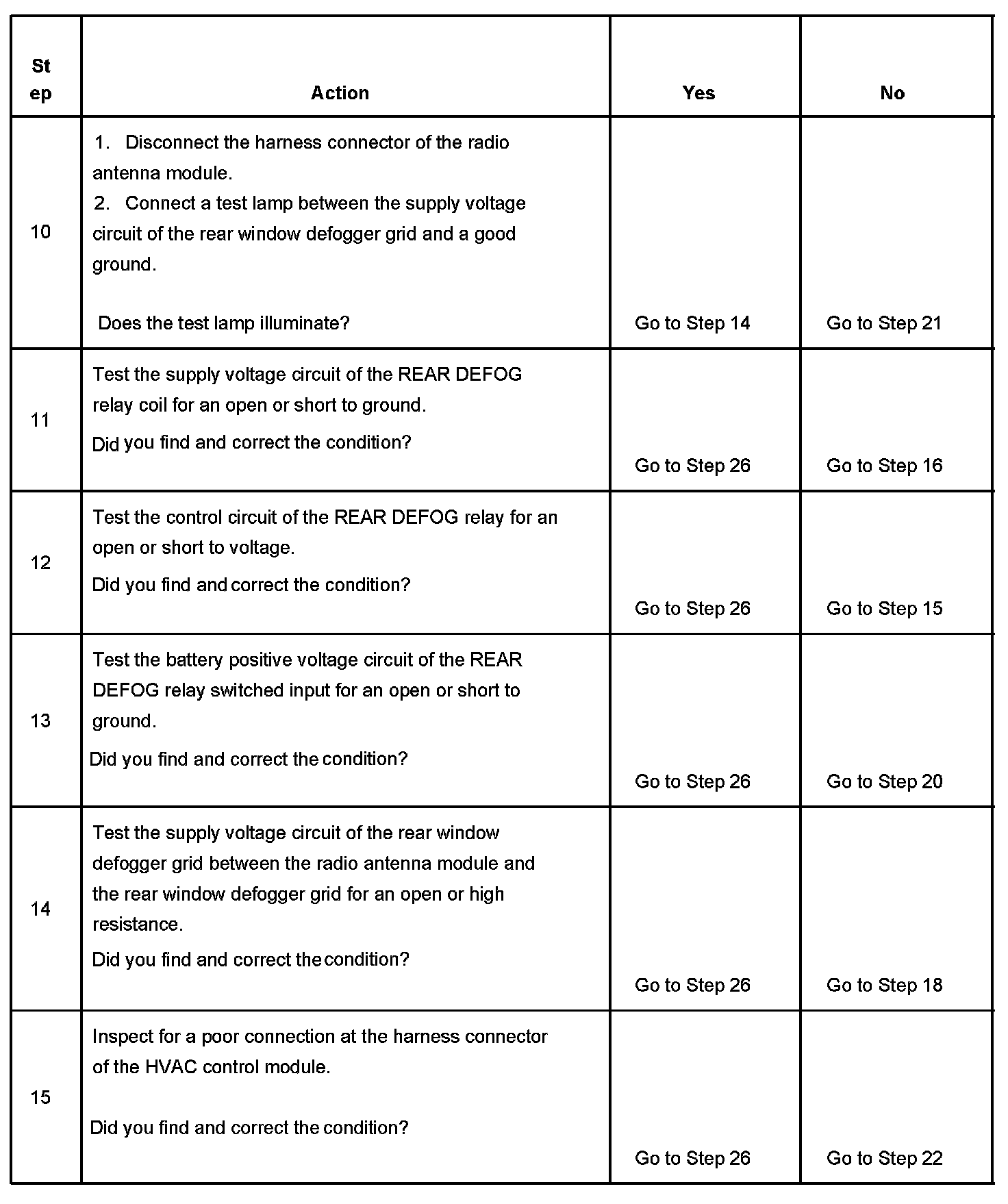

Steps 10 - 15:

Steps 16 - 22:

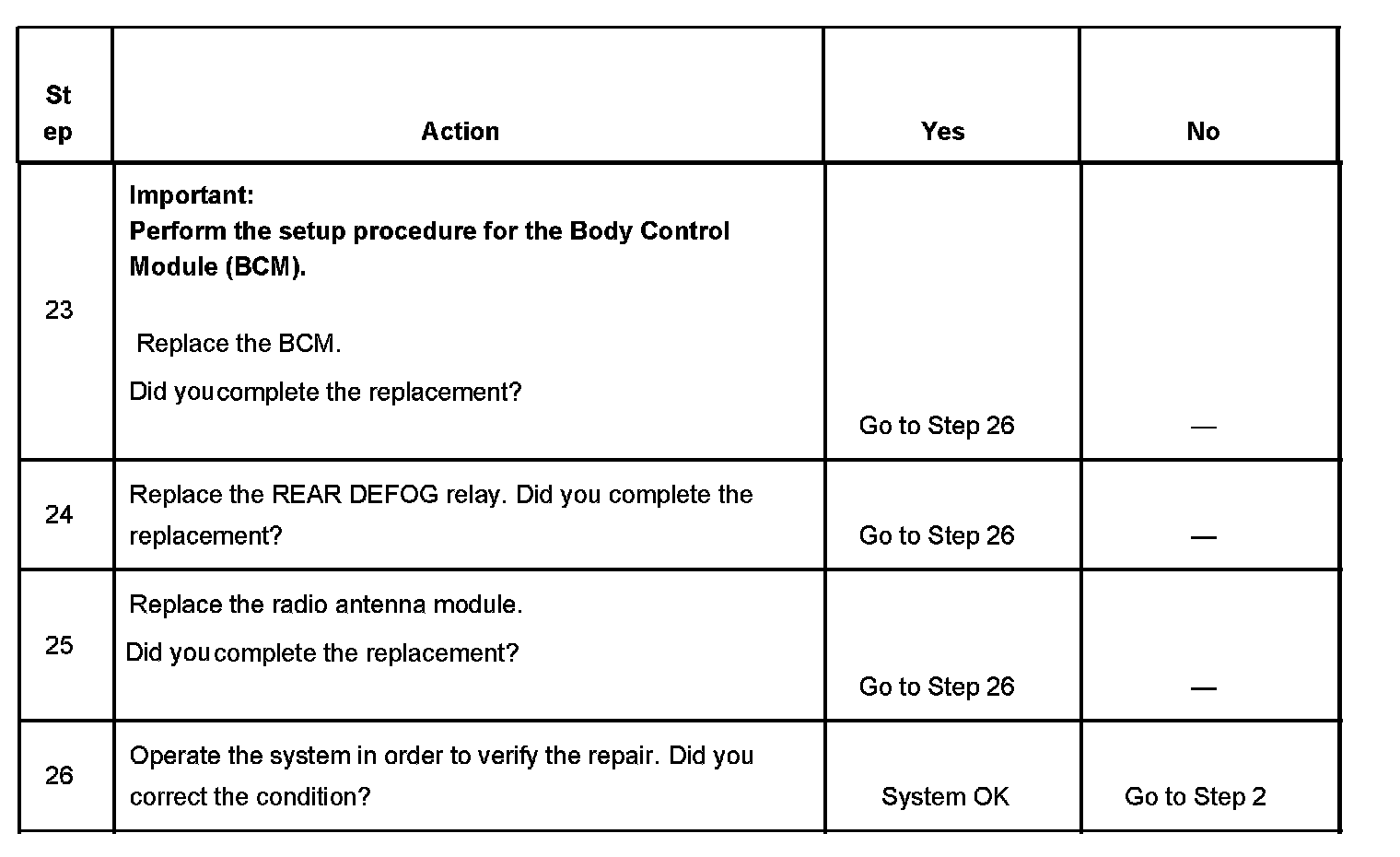

Steps 23 - 26:

The number below refers to the step number on the diagnostic table.
5. Listen for an audible click when the REAR DEFOG relay operates. Command both the ON and OFF states of the REAR DEFOG relay. Repeat the commands as necessary.
