Automatic Transmission Mount Replacement
Automatic Transmission Mount ReplacementRemoval Procedure
1. Raise and support tire vehicle.
2. Remove the left tire and wheel, assembly.

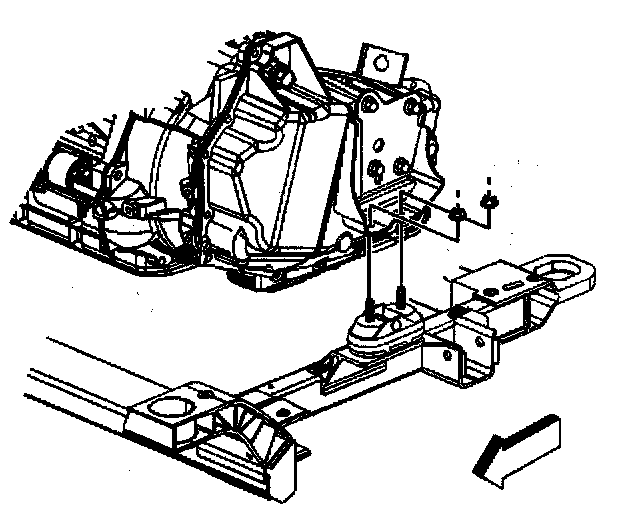

3. Remove left inner splash shield.
4. Position a transmission jack under the transaxle.
5. Remove the transaxle mount upper nuts from the transaxle bracket.
6. Carefully raise the transaxle assembly.
7. Remove the transaxle mount lower nuts from the frame.
8. Remove the transaxle mount from the frame.
Installation Procedure
1. Position the transaxle mount to the frame.
Notice: Refer to Fastener Notice in Service Precations.
2. Install the transaxle mount lower nuts to the frame.
Tighten the transaxle mount lower nuts to 63 Nm (46 ft. lbs.).
3. Lower the transaxle so the transaxle mount studs install into the transaxle bracket.
Notice: Refer to Fastener Notice in Service Precautions.
4. Install the transaxle mount upper nuts to the transaxle mount.
Tighten the transaxle mount upper nuts to 47 Nm (35 ft. lbs.).
5. Remove the transmission jack from the transaxle.
6. Install left inner splash shield.
7. Install the left wheel and tire assembly.
8. Lower the vehicle.
