Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Right I/P Junction Block
Right I/P Junction Block

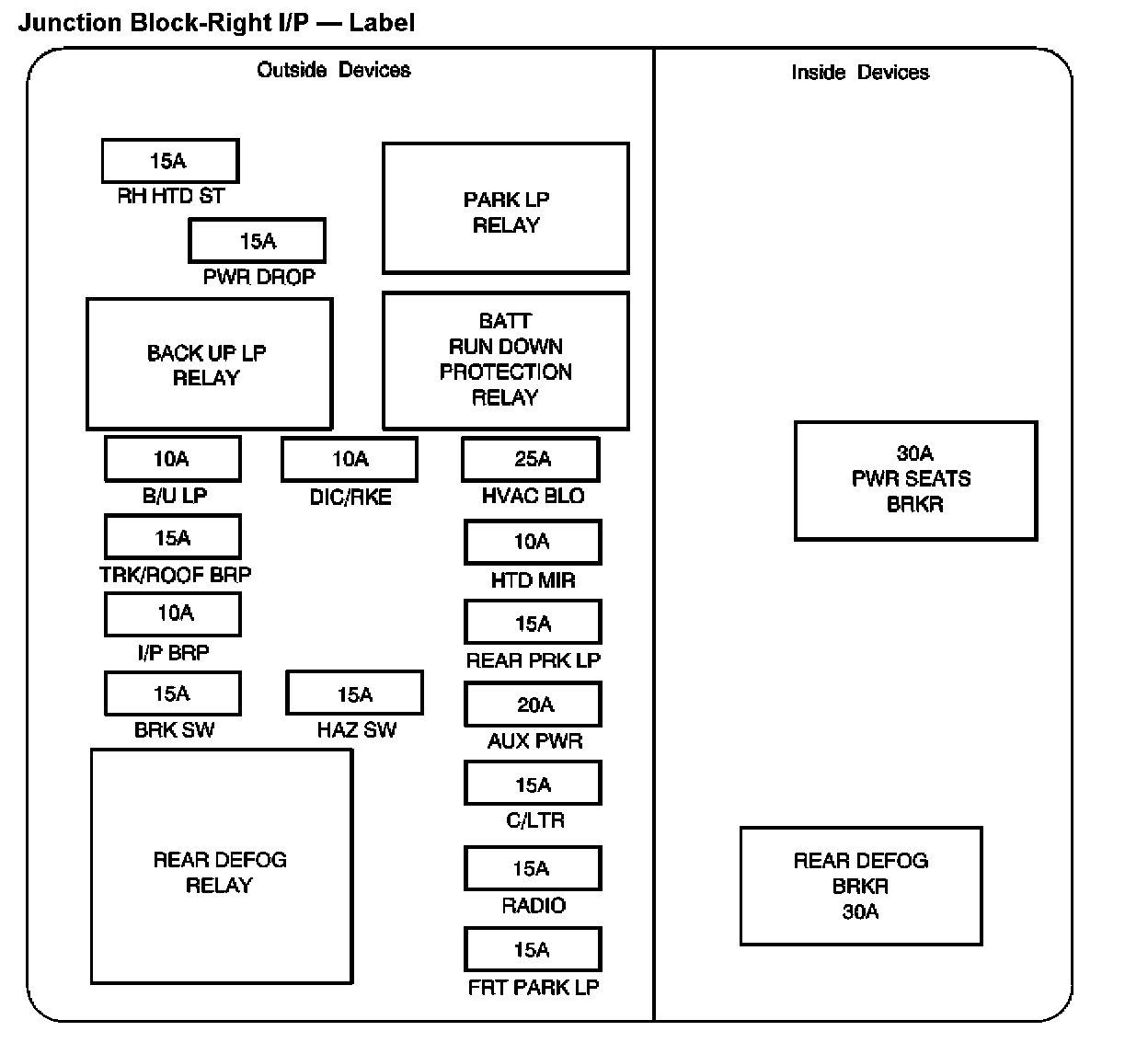

Location View:

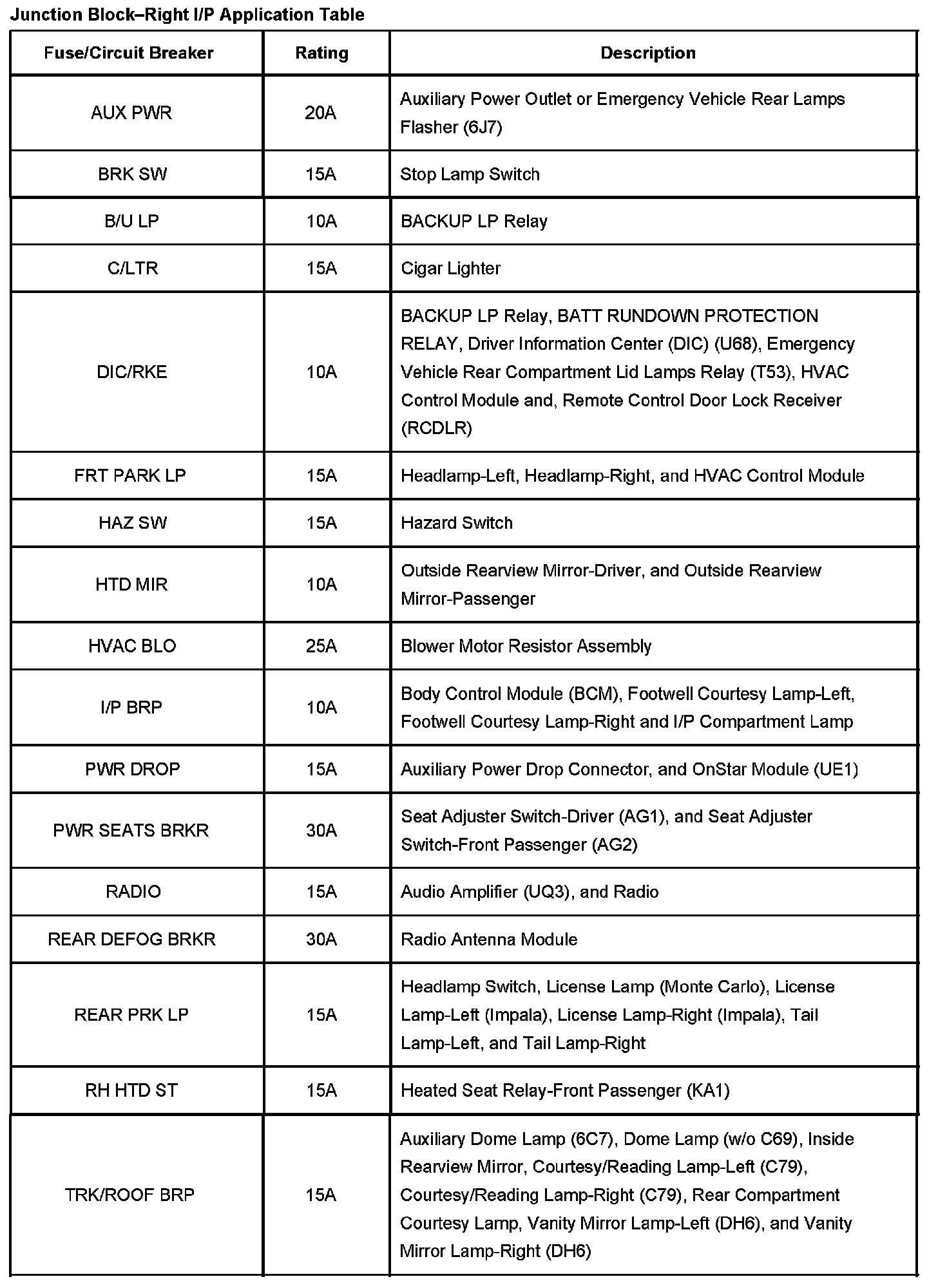

Application Table:
