Seat Belt Retractor Replacement - Rear

REMOVAL PROCEDURE
1. Remove the rear shelf trim panel.

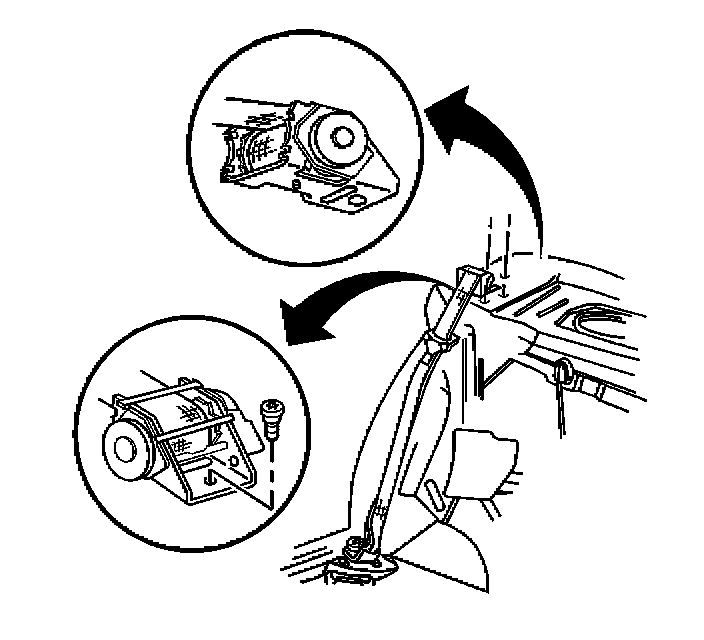

2. Remove the rear seat retractor seat belt bolt.

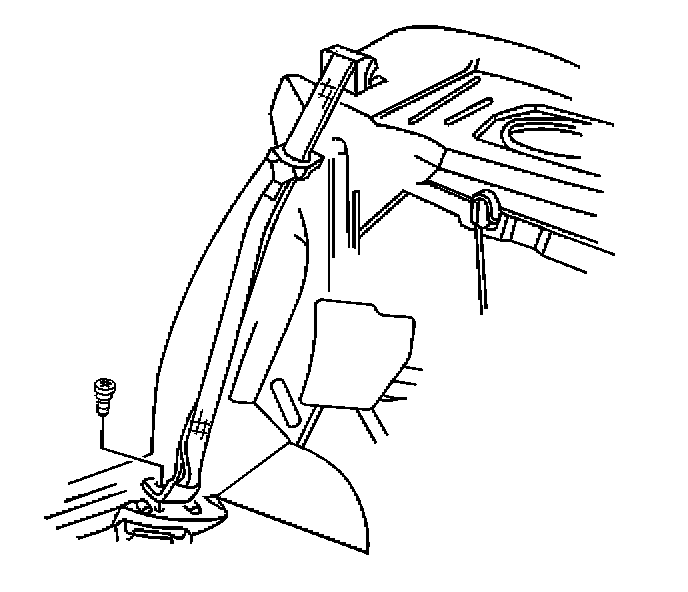

3. Remove the rear seat belt anchor bolt.
4. Remove the rear seat belt retractor from the vehicle.

INSTALLATION PROCEDURE




1. Install the rear seat retractor side belt to the vehicle.

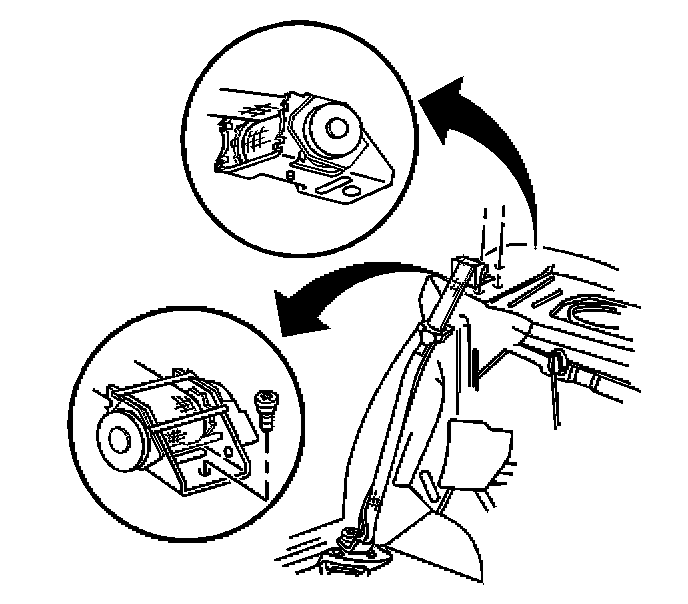

IMPORTANT: The anti-rotation tab must be in the proper hole in the rear shelf.

2. Install the rear seat belt retractor bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the rear seat belt retractor bolt to 68 N.m (50 lb ft).

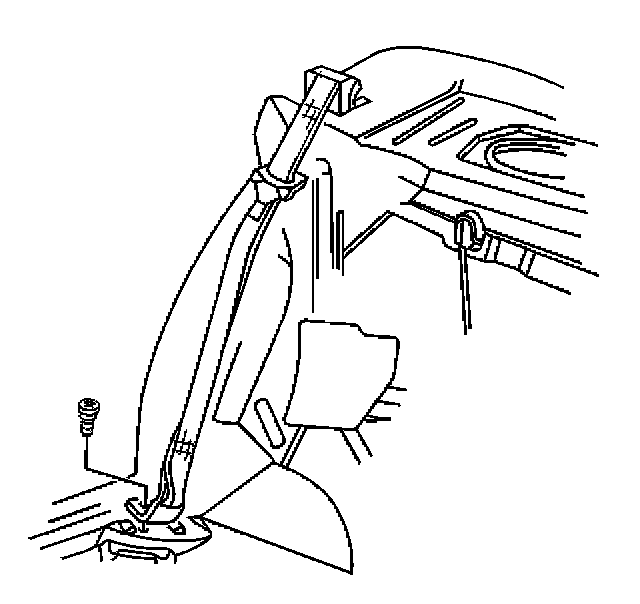

3. Install the rear seat belt anchor bolt.

Tighten
Tighten the rear seat belt anchor bolt to 42 N.m (31 lb ft).

4. Install the rear shelf rim panel.
