Accelerator Pedal: Service and Repair

ACCELERATOR CONTROLS PEDAL REPLACEMENT

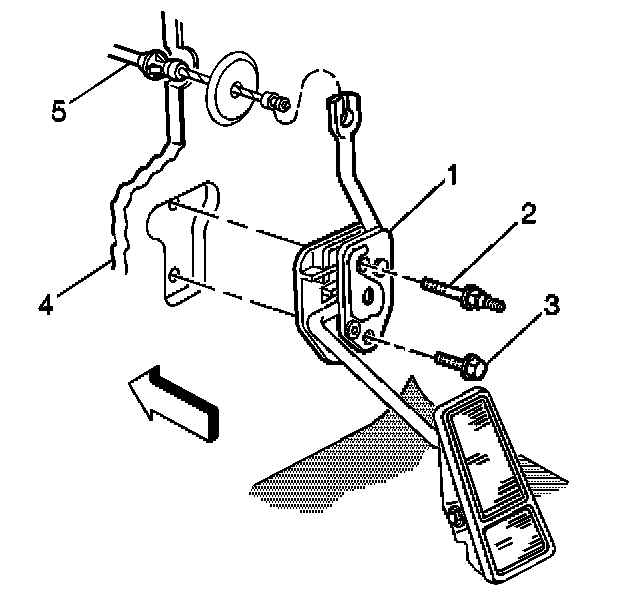

REMOVAL PROCEDURE




1. Remove the left instrument panel sound insulator.
2. Remove the accelerator cable (5) from the accelerator pedal (1).
3. Remove the bolt (3) and the stud (2) from the accelerator pedal (1).
4. Remove the accelerator pedal (1).

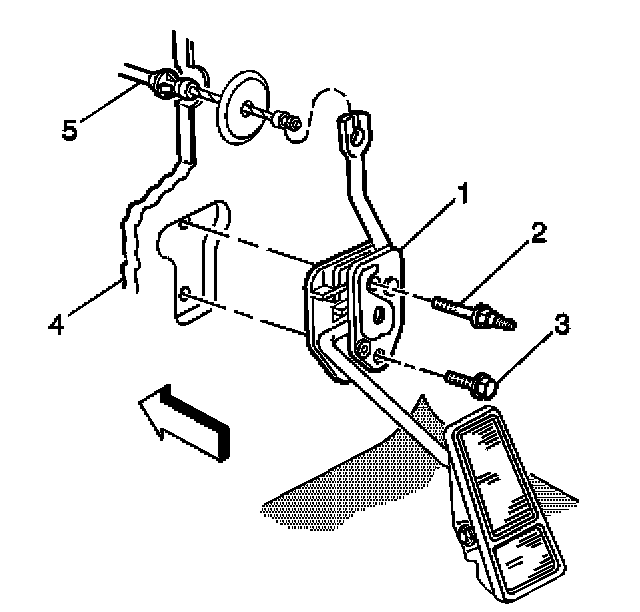

INSTALLATION PROCEDURE




1. Position the accelerator pedal (1) to the bulkhead (4).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the accelerator pedal bolt (3) and the stud (2).

Tighten
Tighten the bolt and the stud to 5 N.m (44 lb in).

3. Install the accelerator cable (5) to the accelerator pedal (1).

IMPORTANT: The throttle should operate freely without binding between a fully closed and a wide open throttle.

4. Verify for complete throttle opening and closing positions by operating the accelerator pedal. Inspect for proper carpet fit under the accelerator pedal.
5. Install the left instrument panel sound insulator.
