G203

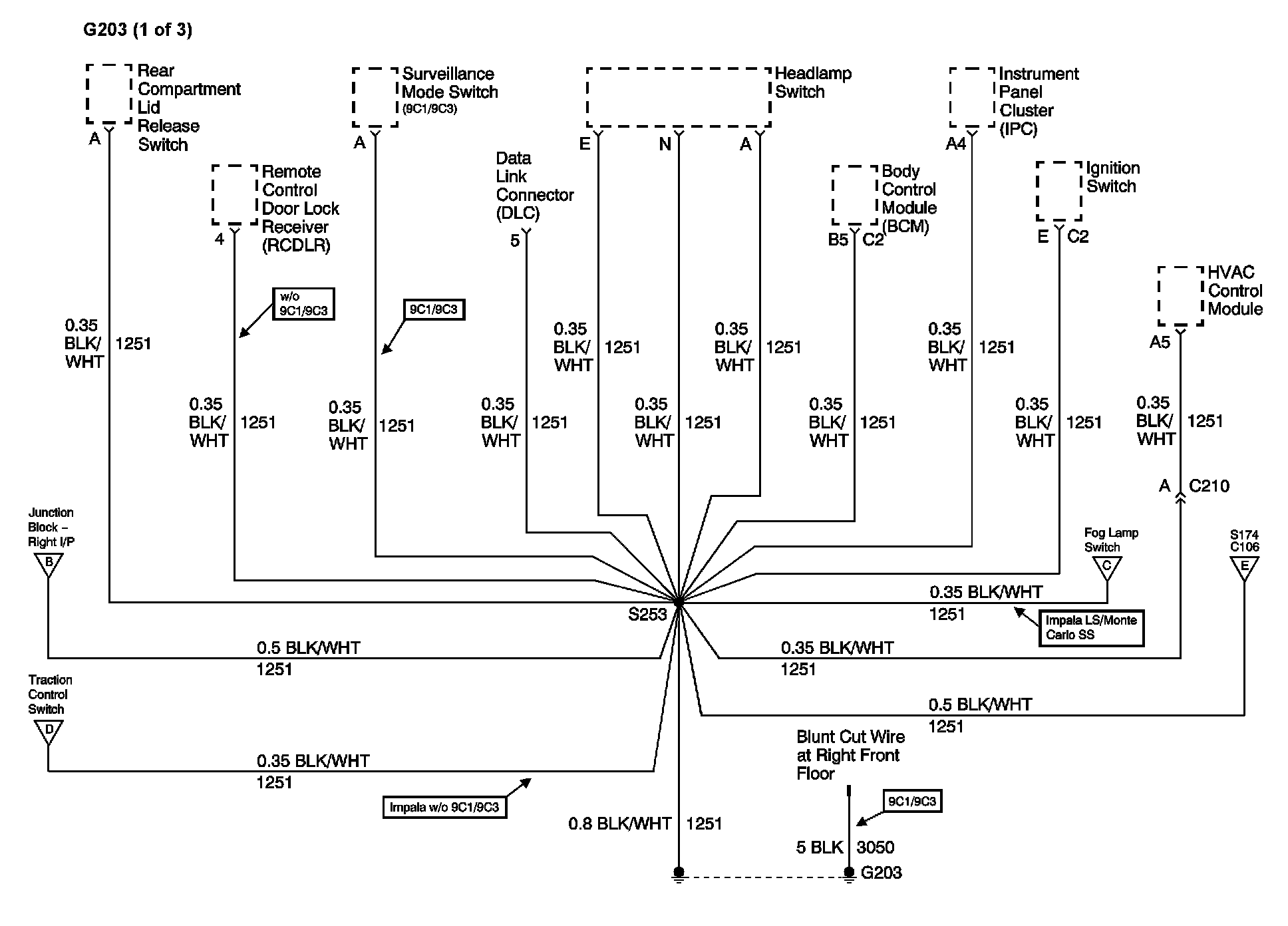

Ground Distribution Diagram 5 Part 1:

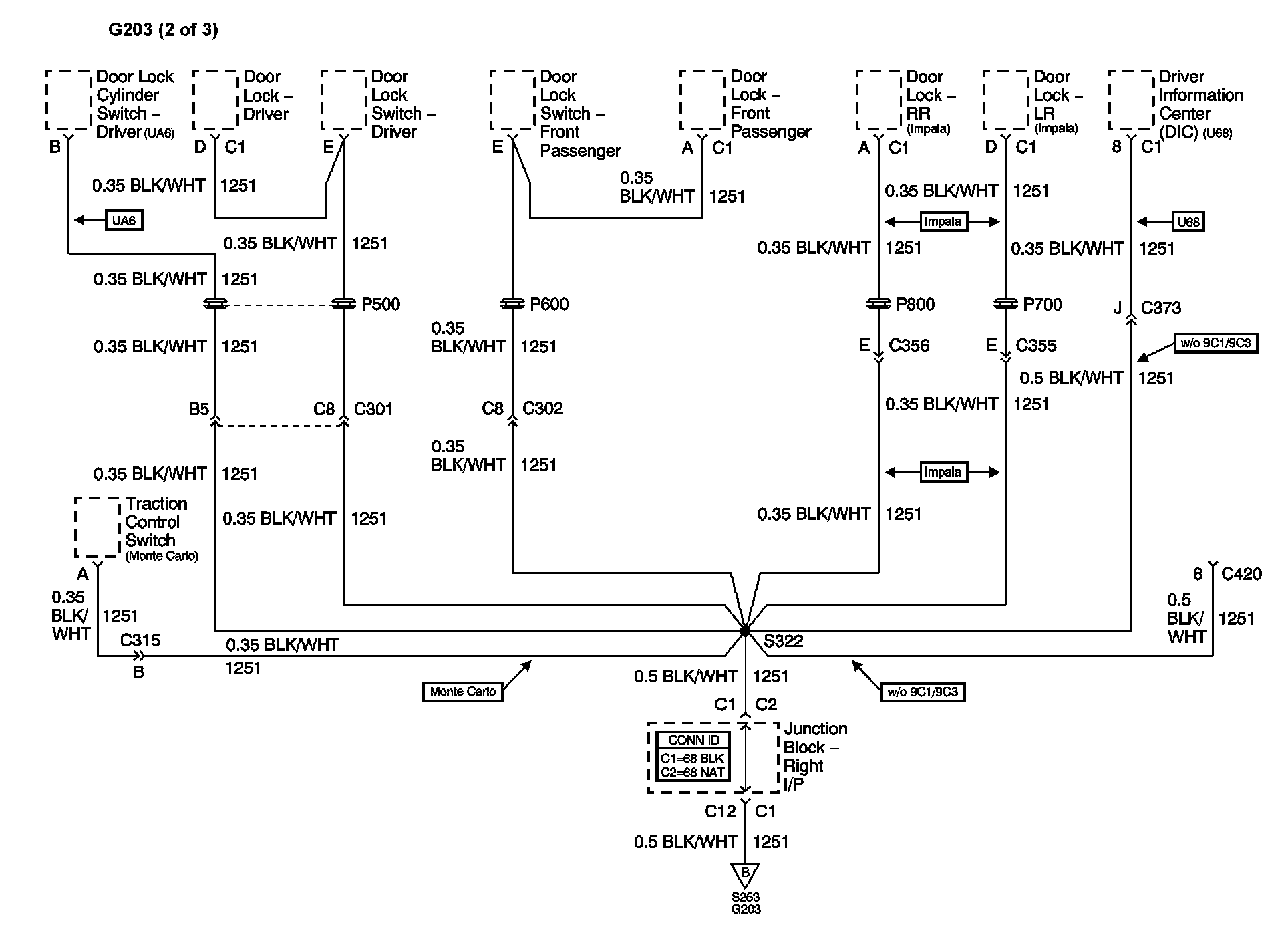

Ground Distribution Diagram 5 Part 2:

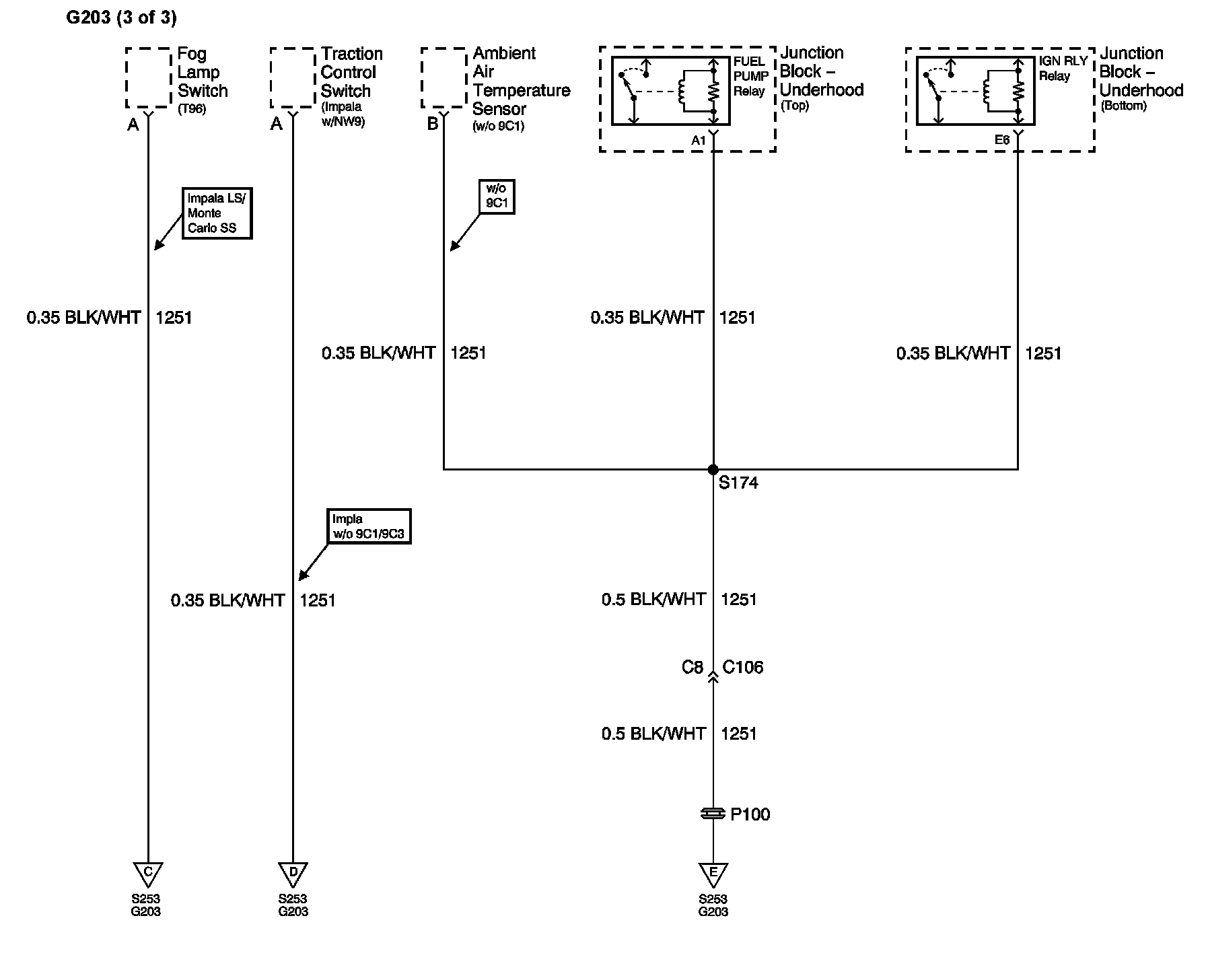

Ground Distribution Diagram 5 Part 3:
