Zone 9

1. Remove the key from the ignition.
Connect the inflatable restraint side impact module - LF connector (1), located under the driver seat.
2. Install the CPA to the side impact module - LF connector.




3. Connect the inflatable restraint I/P module connector, located at the RH side of the I/P.
4. Install the CPA to the I/P module connector.
5. Install the RH I/P access hole cover.




6. Connect the steering wheel module coil connector.
7. Install the CPA from the inflatable restraint steering wheel module coil connector located at the base of the steering column.
8. Install the LH insulator panel.

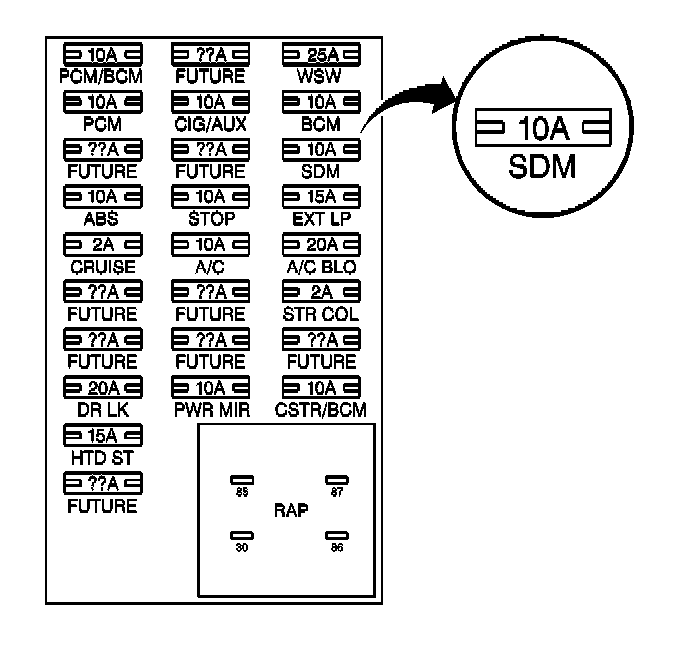

9. Install the SIR Fuse.
10. Install the LH I/P access hole cover.
11. Staying well away from all inflator modules and pretensioners, turn ON the ignition.
11.1. The AIR BAG indicator will flash seven times.
11.2. The AIR BAG indicator will then turn OFF.
12. Perform Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
