Courtesy Lamp Bulb: Service and Repair
ROOF SIDE RAIL LAMP REPLACEMENTREMOVAL PROCEDURE

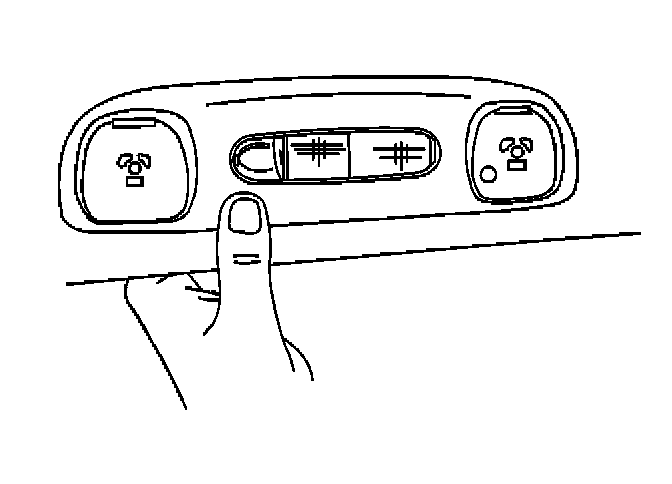

1. Open the assist handle covers using a small flat bladed tool.

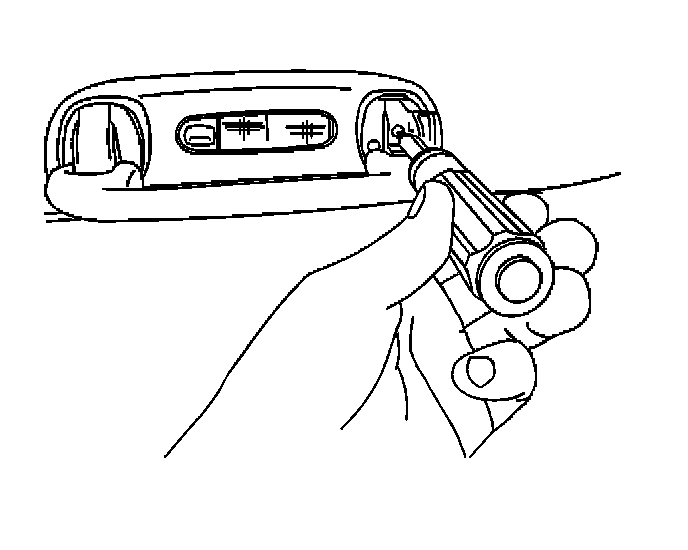

2. Remove the screws from the assist handle.

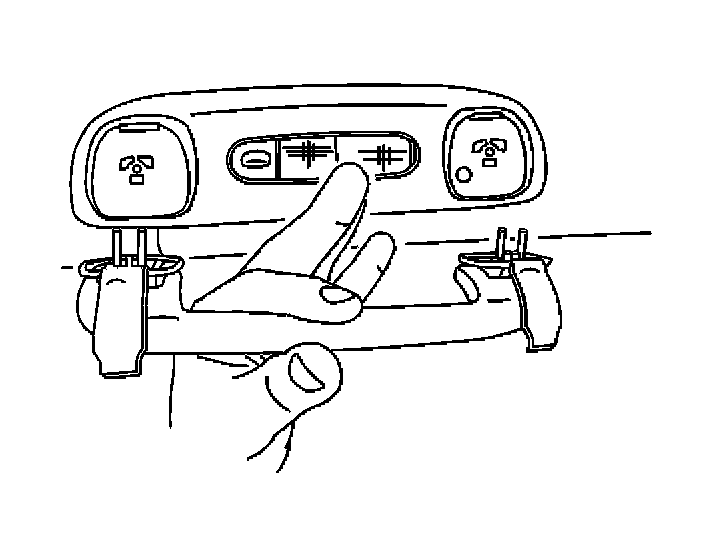

3. Remove the assist handle.
IMPORTANT: The side rail lamp base plate plastic retainers might drop out. Note the location of the retainers.

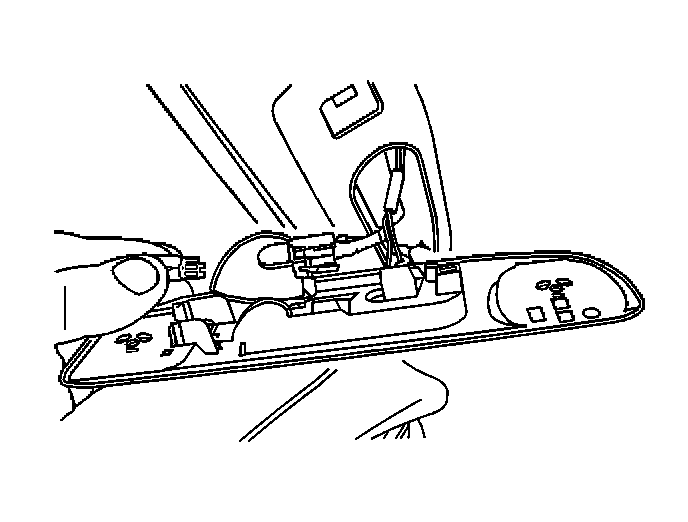

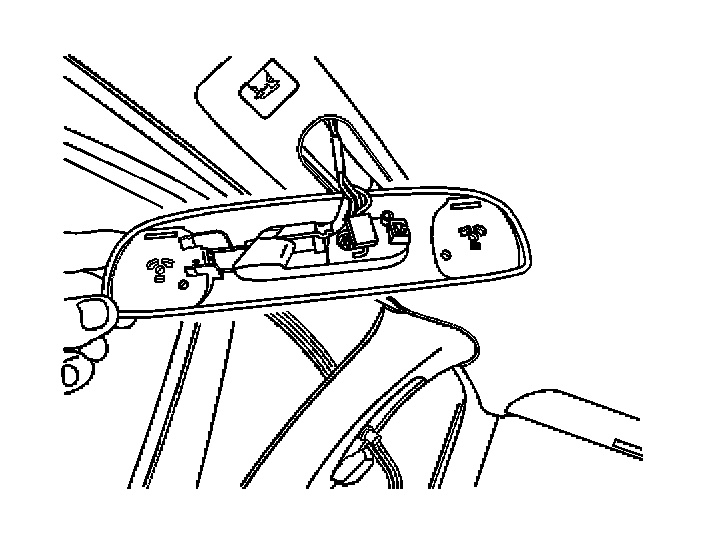

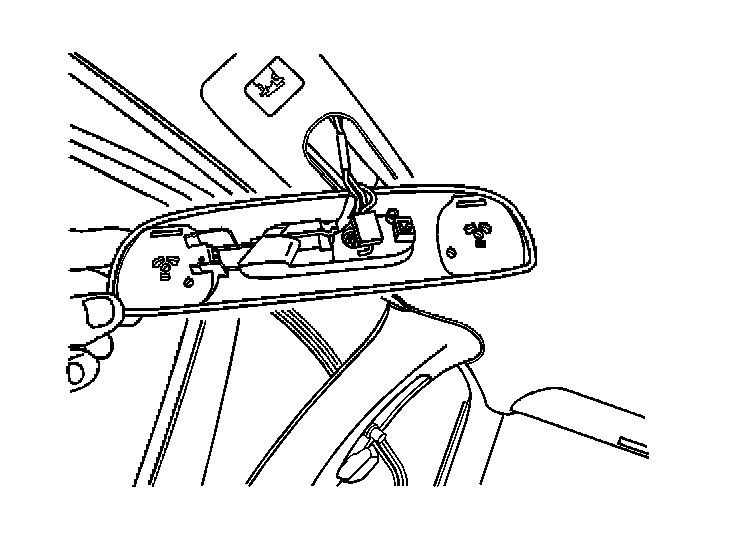

4. Remove the side rail lamp base plate.
5. Pull the service loop loose from the glue.

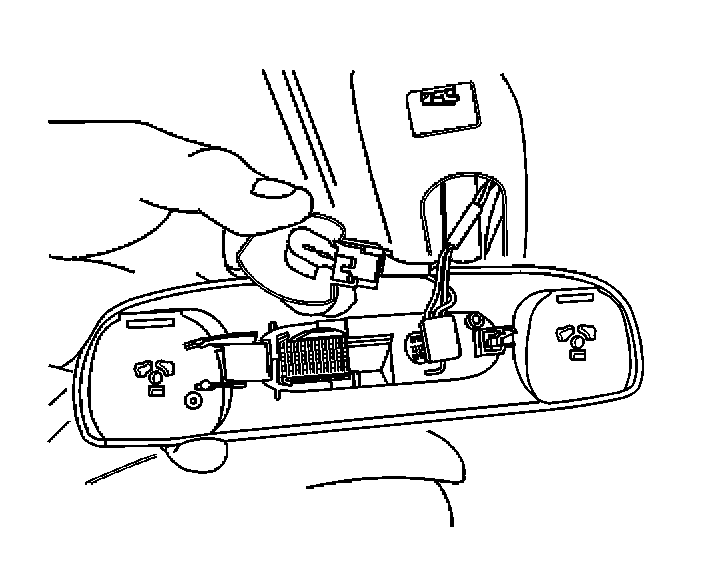

6. Disconnect the electrical connector from the side rail lamp.

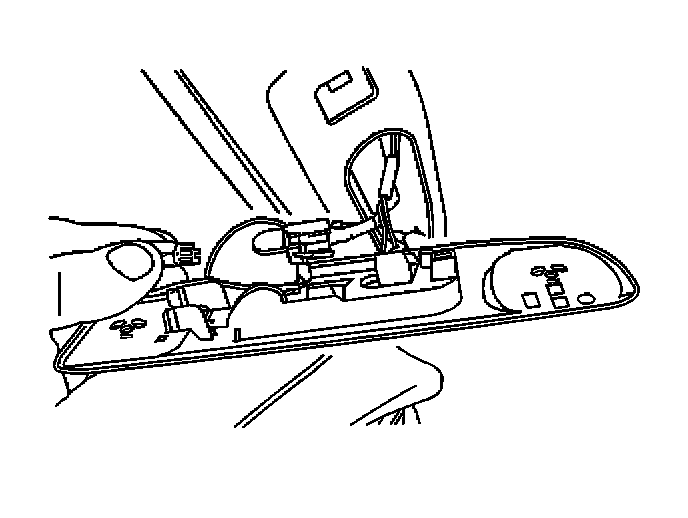

7. Remove the side rail lamp socket from the base plate by sliding off.
8. Remove the bulb if necessary.
INSTALLATION PROCEDURE
1. Install the bulb if necessary.
2. Install the side rail lamp socket to the base plate by sliding on.
3. Connect the electrical connector to the side rail lamp.
4. Install the service loop to glue using foam tape.
5. Align the side rail lamp base plate to the plastic retainers.

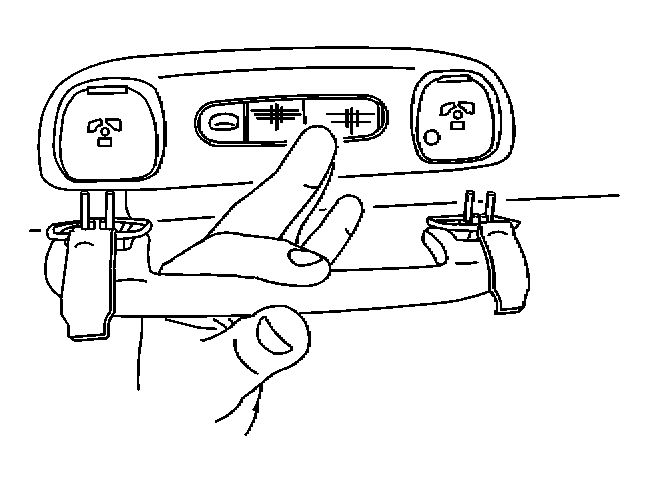

6. Position the side rail lamp assist handle to the base plate and the plastic retainers.
NOTE: Refer to Fastener Notice in Service Precautions.
7. Install the screws to the side rail lamp assist handle.
Tighten
Tighten the side rail lamp assist handle screws to 2 N.m (18 lb in).
8. Close the assist handle covers pressing into place until fully seated.
