Engine Mount Strut Bracket Replacement - Left
Engine Mount Strut Bracket Replacement - LeftRemoval Procedure
1. Drain the cooling system.
2. Remove the engine coolant temperature sensor.

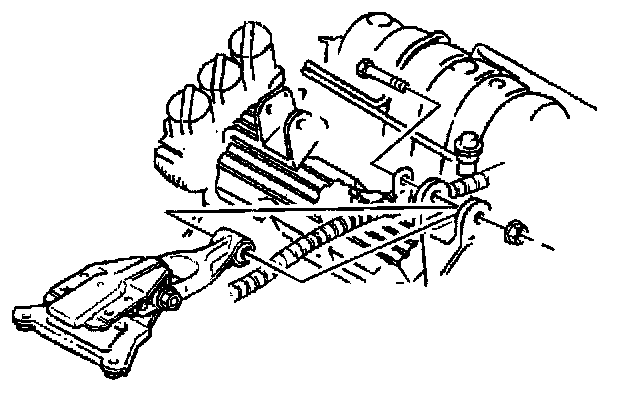

3. Remove the engine mount strut at the left engine mount strut bracket.

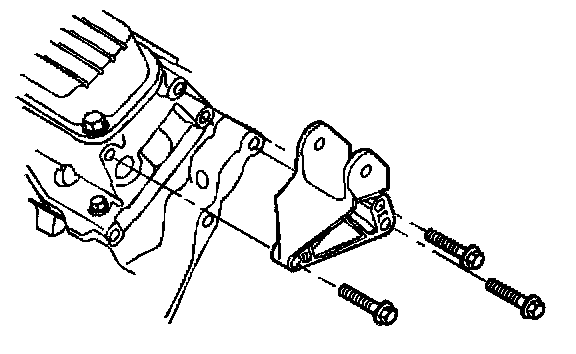

4. Remove the engine mount strut bracket bolts.
5. Remove the engine mount strut bracket.
Installation Procedure
1. Install the engine mount strut bracket.
Notice: Refer to Fastener Notice in Service Precautions.

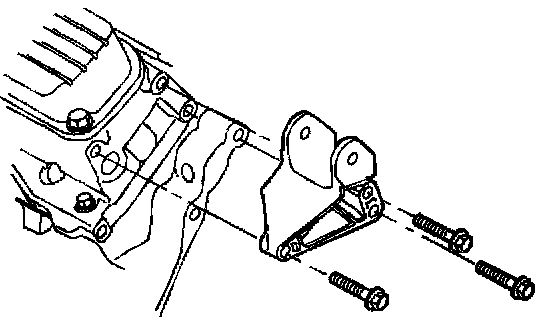

2. Install the engine mount strut bracket bolts.
- Tighten the engine mount strut bracket bolts to 50 Nm (37 ft. lbs.).

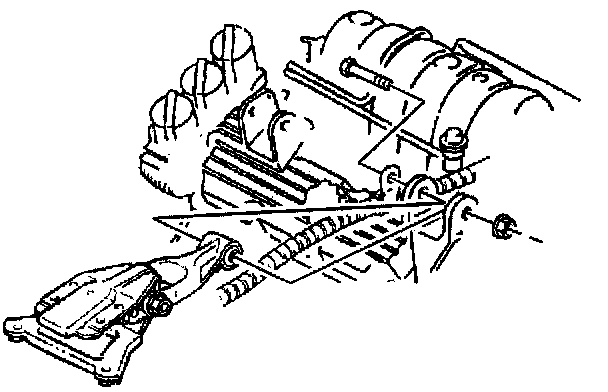

3. Install the engine mount strut to the left engine mount strut bracket.
4. Install the engine coolant temperature sensor.
- Tighten the sensor to 25 Nm (18 ft. lbs.).
5. Fill the cooling system.
