Valve Rocker Arm Cover Replacement (Right)

Valve Rocker Arm Cover Replacement - Right

Removal Procedure





1. Disconnect the negative battery cable.
2. Remove the fuel injector sight shield.
3. Remove the drive belt tensioner.
4. Remove the right side spark plug wires from the spark plugs.

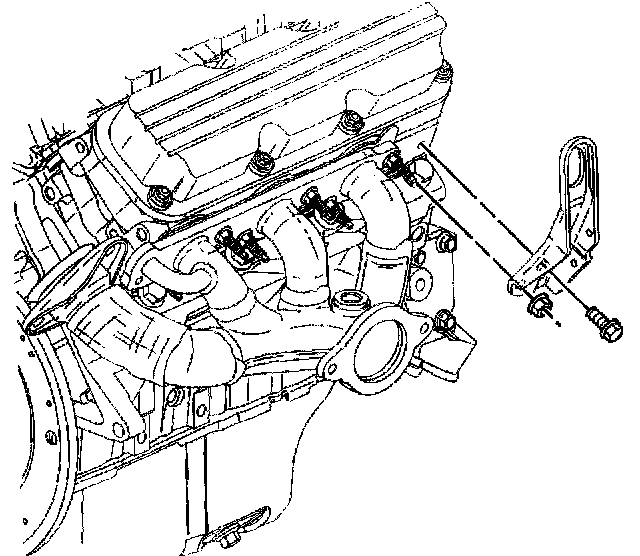

5. Remove the right side engine lift bracket bolt and the nut.
6. Remove the right side engine lift bracket.

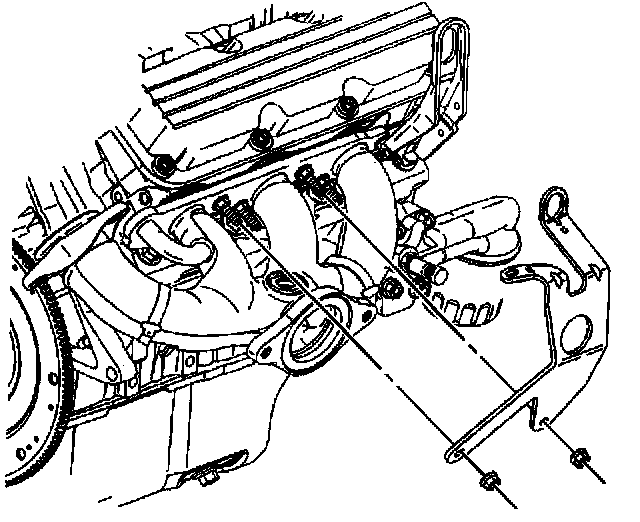

7. Remove the fuel injector sight shield bracket nuts.
8. Remove the fuel injector sight shield bracket.

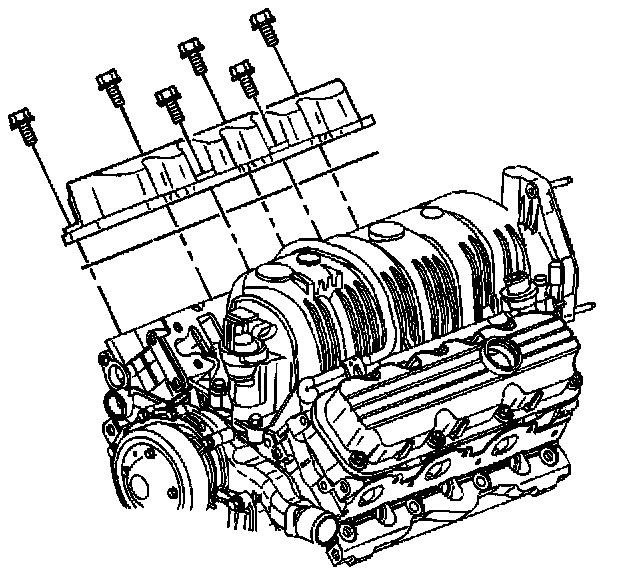

9. Remove the right side valve rocker arm cover bolts.

Important: If the valve rocker arm cover adheres to the cylinder head, remove the valve rocker arm cover by bumping the end of the valve rocker arm cover with the palm of your hand or a soft rubber mallet.

10. Remove the right side valve rocker arm cover.
11. Remove the right side valve rocker arm cover gasket.
12. Clean the valve rocker arm cover mating surface.
13. Clean the valve rocker arm cover bolts of all thread locking adhesive.

Installation Procedure





1. Install the new valve rocker arm cover gasket. Ensure that the valve rocker arm cover gasket is seated properly in the valve rocker arm cover groove.
2. Install the right side valve rocker arm cover.
3. Apply thread lock compound GM P/N 12345493 (Canadian P/N 10953488) or equivalent to the valve rocker arm cover bolt threads.

Notice: Refer to Fastener Notice in Service Precautions.

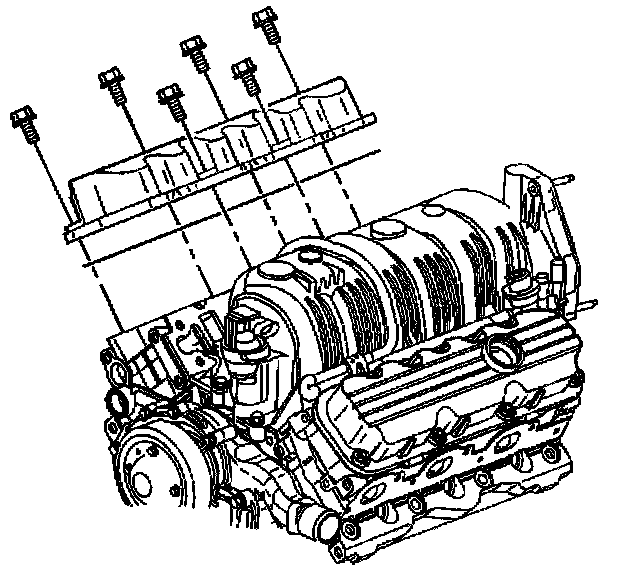

4. Install the right valve rocker arm cover bolts.
- Tighten the bolts to 10 Nm (89 inch lbs.).

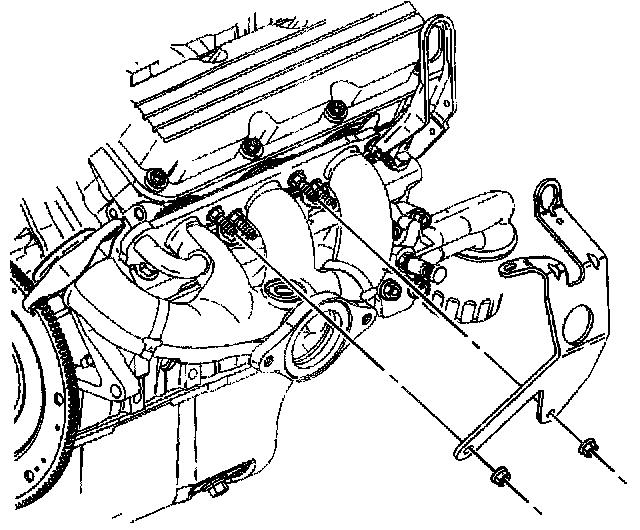

5. Install the fuel injector sight shield bracket to the exhaust manifold studs.
6. Install the fuel injector sight shield bracket nuts.
- Tighten the nuts to 30 Nm (22 ft. lbs.).





7. Install the right side engine lift bracket.
8. Install the right side engine lift bracket bolt and the nut.
- Tighten the bolt and the nut to 30 Nm (22 ft. lbs.).
9. Install the right side spark plug wires to the spark plugs.
10. Install the drive belt tensioner.
11. Install the fuel injector sight shield.
12. Connect the negative battery cable.
13. Check and fill crankcase as necessary
14. Inspect for oil leaks.
