Home >> Chevrolet >> 2004 >> Monte Carlo V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Harness >> Console and Floor View

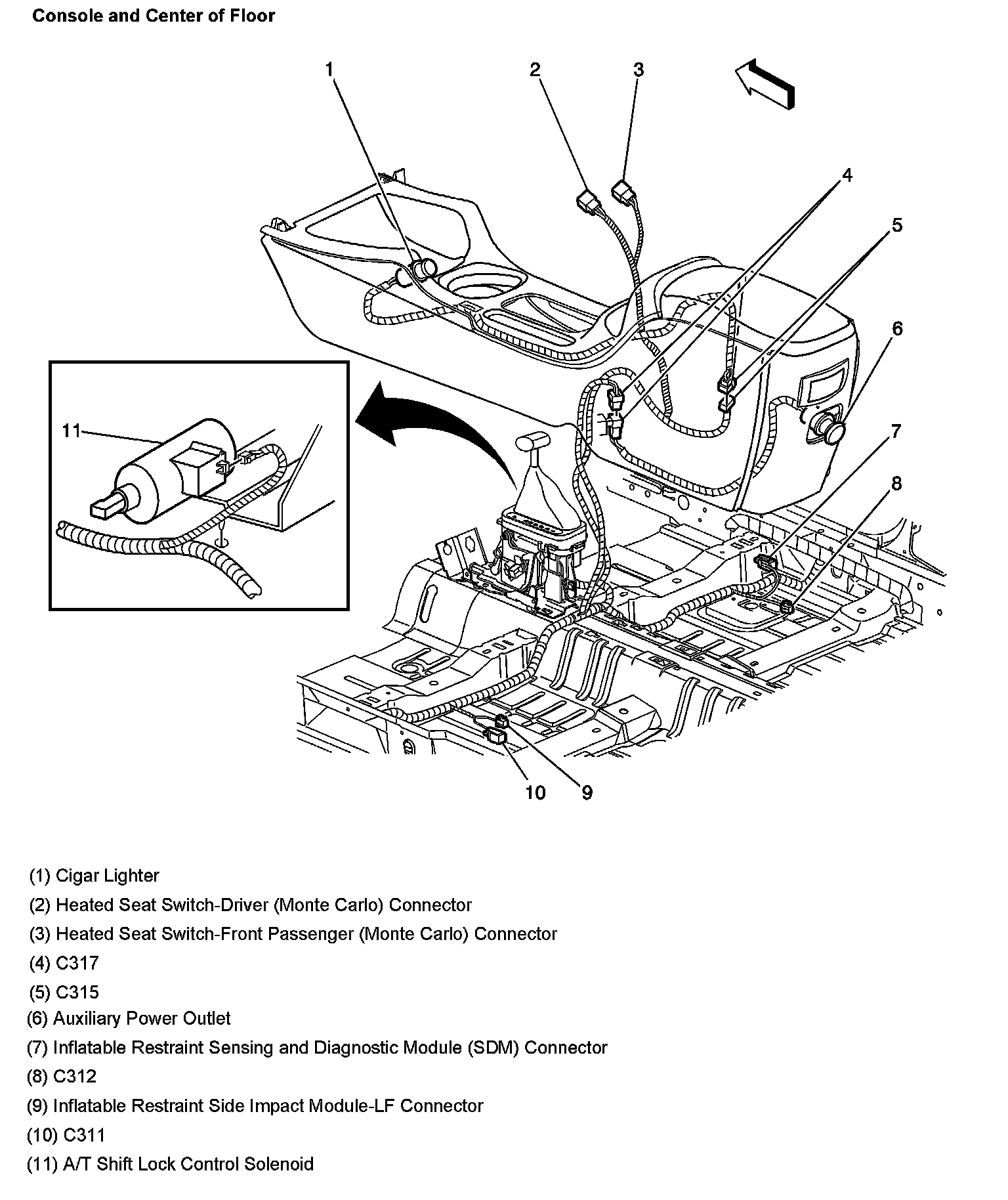

Console and Floor View

Console And Center Of Floor:
