Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C400 - C901
>>
C901
C901

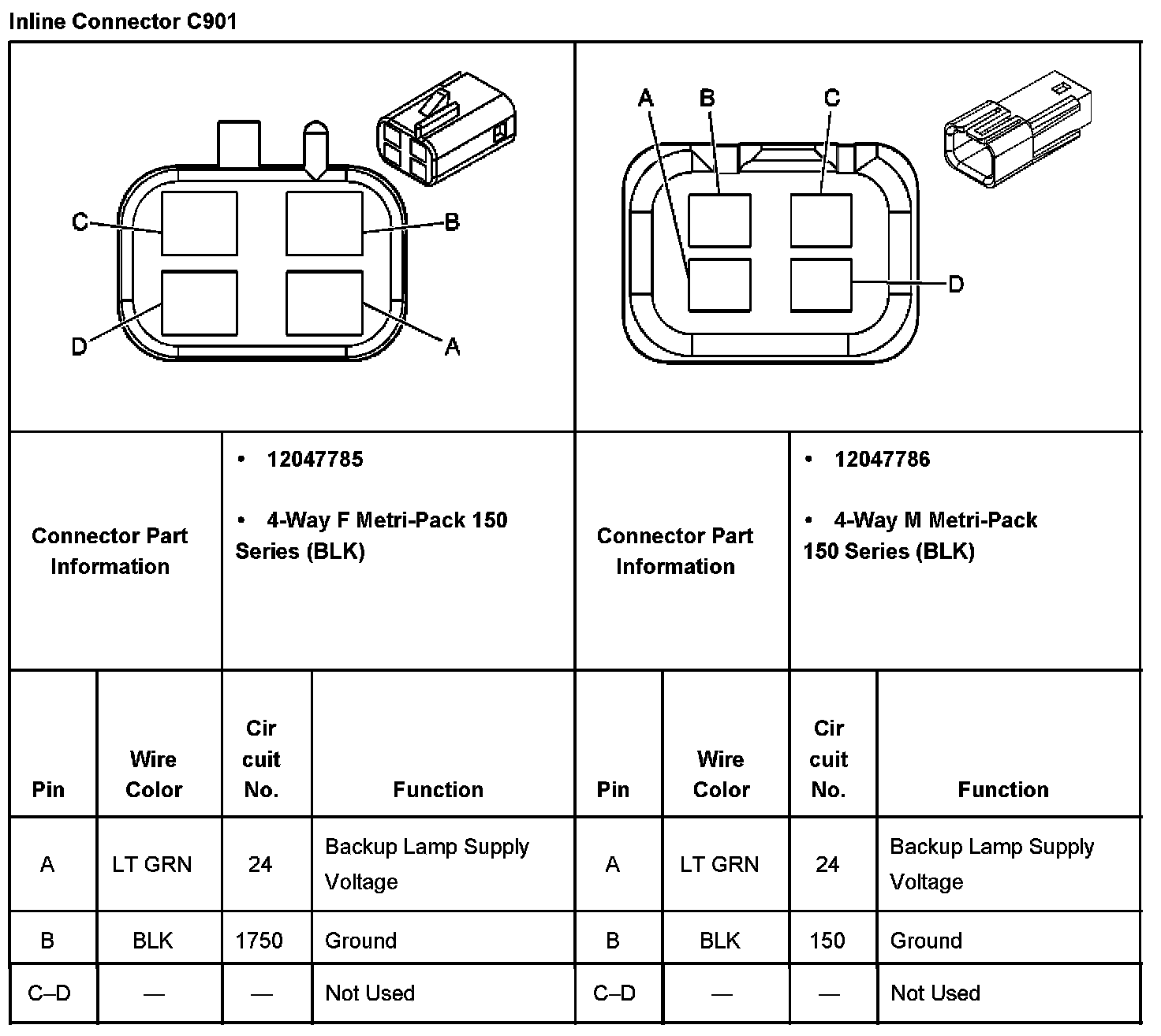

Inline Connector C901:
