Home
>>
Chevrolet
>>
2004
>>
Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C400 - C901
>>
C409
C409

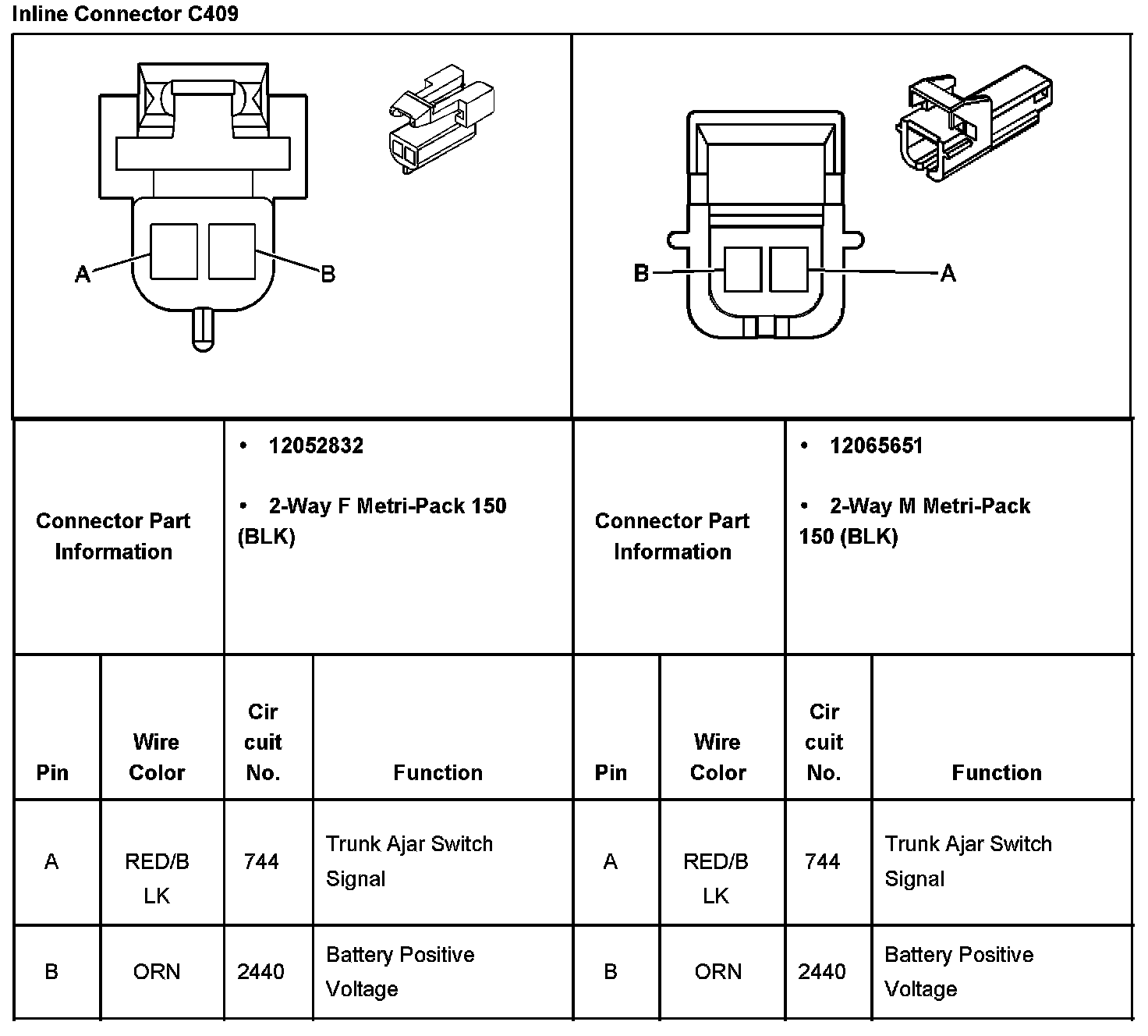

Inline Connector C409:
