Sunshade Anchor Replacement

SUNSHADE ANCHOR REPLACEMENT

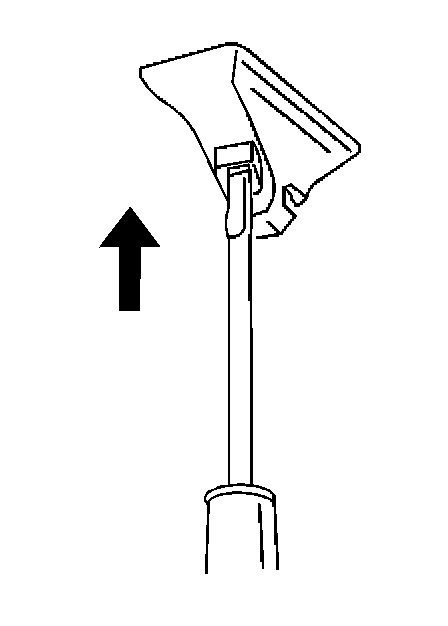

REMOVAL PROCEDURE




1. Unhook the sunshade from the sunshade anchor.
2. Remove the screw from the sunshade anchor.
3. Remove the sunshade anchor from the roof.

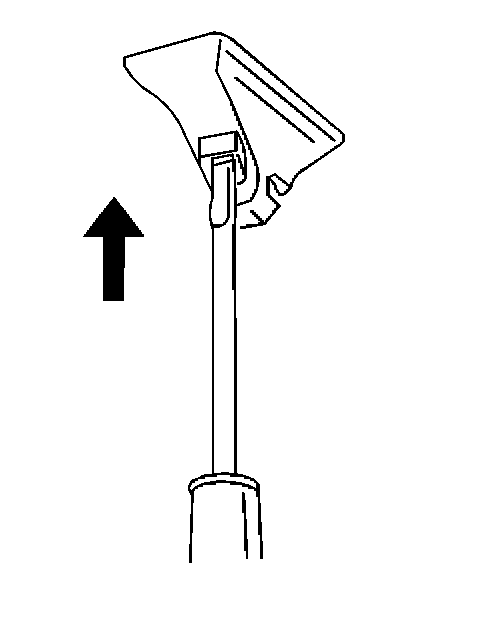

INSTALLATION PROCEDURE




1. Position the sunshade anchor to the mounting position in the roof.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screw to the sunroof anchor.

Tighten
Tighten the sunroof anchor screw to 3 N.m (27 lb in).

3. Reposition the sunshade to the original position.
