Trunk / Liftgate Hinge: Service and Repair

Hinge Replacement - Rear Compartment Lid

Removal Procedure




1. Remove the rear compartment lid.

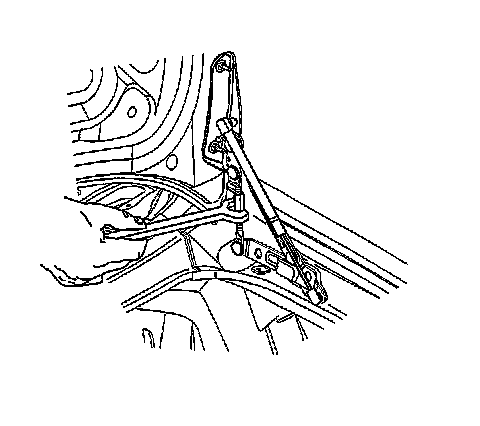

2. Remove the rear compartment lid struts.
3. Use a grease pencil in order to mark the quarter panel hinge to the quarter panel.

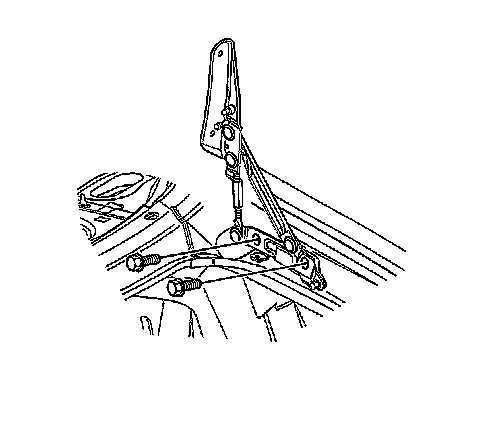

4. Remove the bolts from the rear compartment hinge.
5. Remove the rear compartment hinge from the quarter panel.

Installation Procedure




1. Align the rear compartment hinge to the quarter panel.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the rear compartment hinge to rear quarter bolts.

Tighten the rear compartment hinge to rear quarter bolts to 25 N.m (18 lb ft).

3. Install the rear compartment lid.
4. Install the rear compartment lid struts.




5. Adjust the rear compartment lid hinge as required.
