Cowl Moulding / Trim: Service and Repair

Air Inlet Grille Panel Replacement

Tools Required

J 38778Door Trim Pad Clip Remover

Removal Procedure

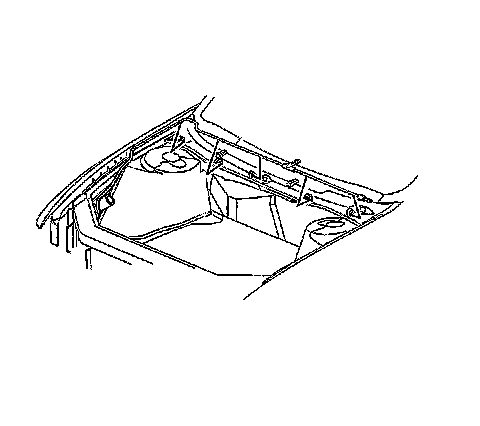

1. Open the hood.
2. Remove the wiper arms.
3. Disconnect the windshield wiper washer hose from the air inlet grille.

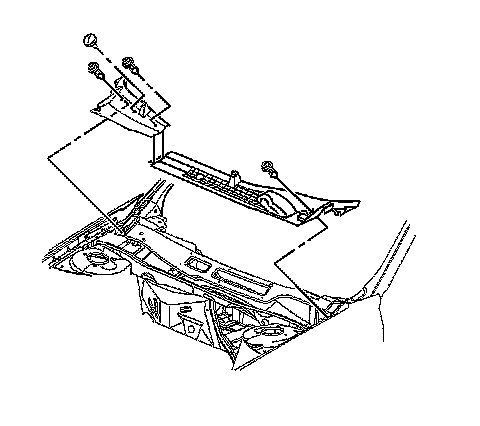

4. Use the J 38778 to remove the push-in retainers from the air inlet grille.
5. Remove the air inlet grille from the vehicle.

Installation Procedure




1. Install the air inlet grille to the vehicle.
2. Install the push-in retainers to the air inlet grille.




3. Install the windshield wiper washer hose to the air inlet grille.
4. Install the wiper arms.
5. Close the hood.
