Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER REPLACEMENT

REMOVAL PROCEDURE




1. Remove the fuel tank.

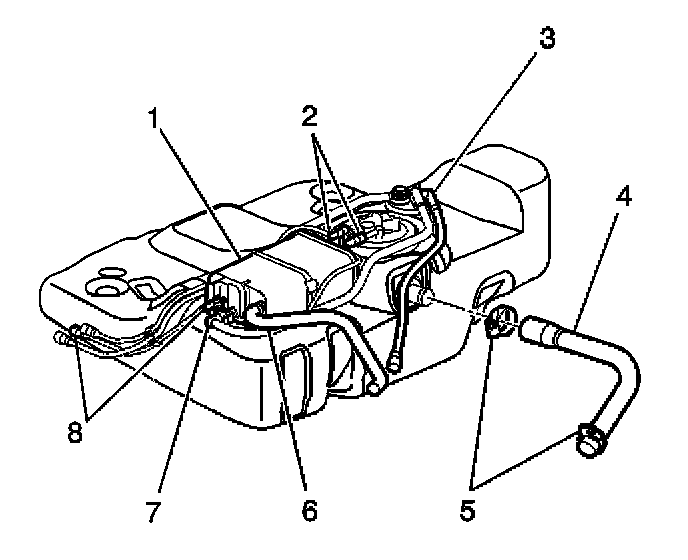

2. Disconnect the EVAP vent hose (6), the vapor pipe (7) and the purge pipe (8) from the canister (1).

IMPORTANT: Replace the retaining strap when replacing the EVAP canister.

3. Release the canister from the retaining strap.
4. Remove the canister from the fuel tank.

INSTALLATION PROCEDURE




1. Position the canister on the fuel tank.
2. Secure the canister to the fuel tank with a new retaining strap.

NOTE: Refer to Nylon Pipes Notice in Service Precautions.

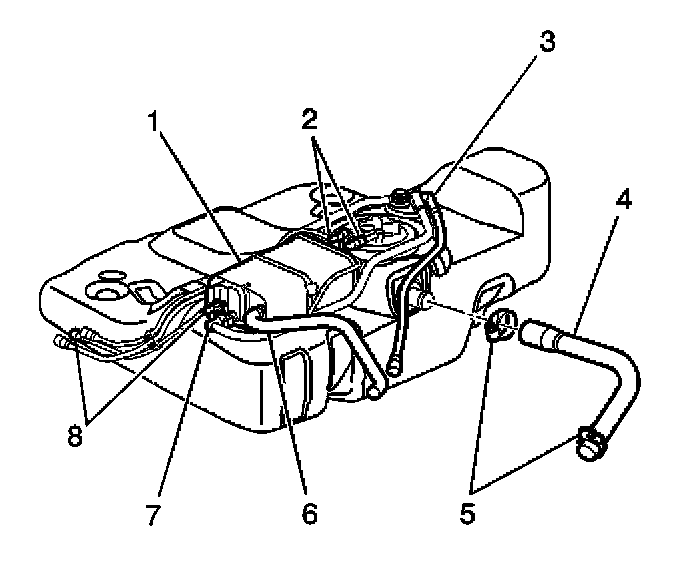

3. Connect the EVAP vent hose (6), the vapor pipe (7) and the purge pipe (8) to the canister (1).
4. Install the fuel tank.
