Canister Purge Solenoid: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID VALVE REPLACEMENT

REMOVAL PROCEDURE

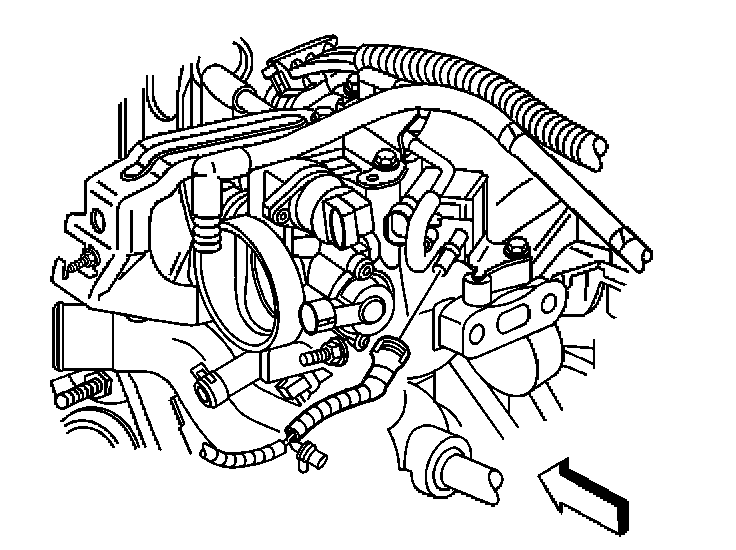

1. Disconnect the evaporative emission (EVAP) canister purge valve electrical connector.

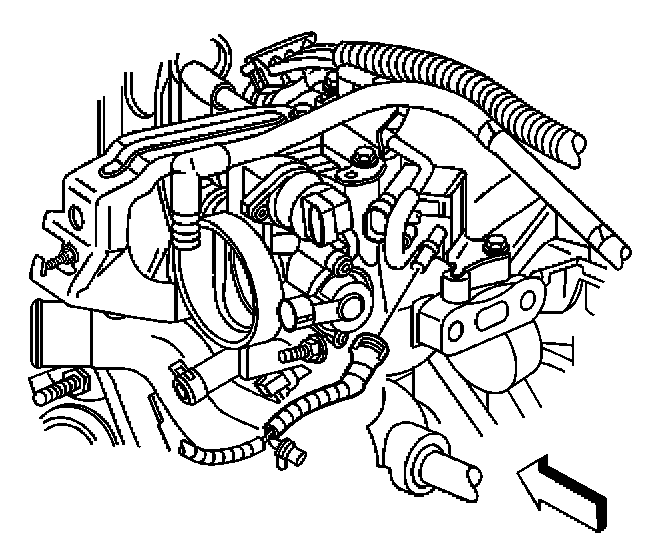

2. Disconnect the EVAP canister purge pipe from the EVAP canister purge valve.
3. Disconnect the vacuum supply hose from the EVAP canister purge valve.

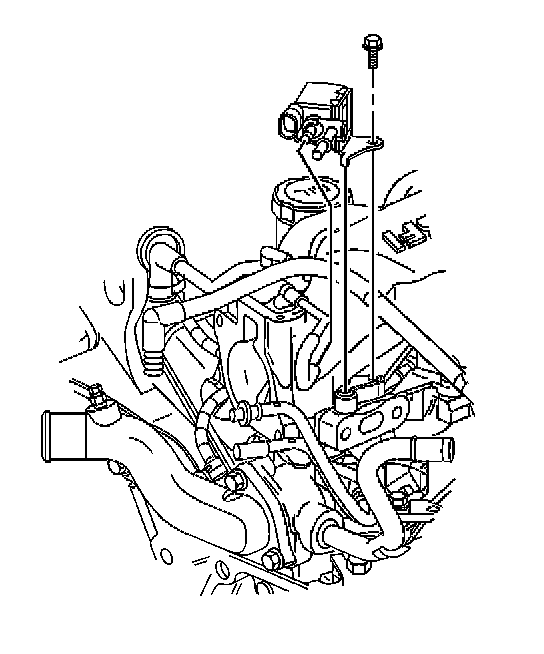

4. Remove the EVAP canister purge valve bolt.
5. Remove the EVAP canister purge valve from the intake manifold.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Position the EVAP canister purge valve to the intake manifold.
2. Install the EVAP canister purge valve bolt.

Tighten
Tighten the bolt to 10 N.m (89 lb in).




3. Connect the vacuum supply hose to the EVAP canister purge valve.
4. Connect the EVAP canister purge pipe to the EVAP canister purge valve.
5. Connect the EVAP canister purge valve electrical connector.
