85. Exhaust Manifold Installation - Left

Exhaust Manifold Installation - Left (trial)





Notice: Refer to Fastener Notice in Service Precautions.

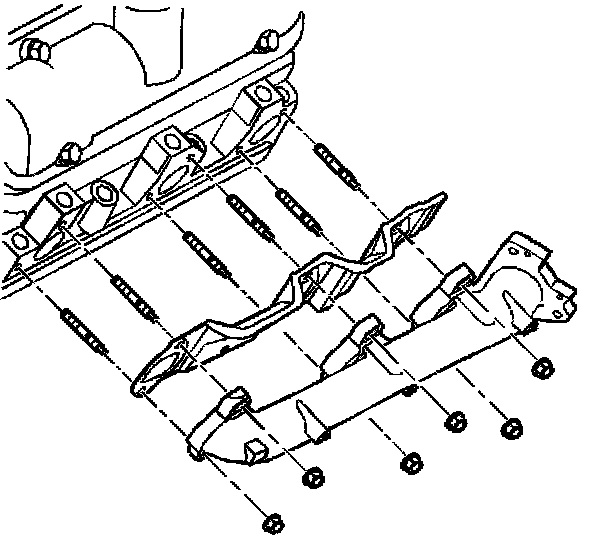

1. Install the exhaust manifold studs.
- Tighten the exhaust manifold studs to 18 Nm (13 ft. lbs.).
2. Install the exhaust manifold gasket.
3. Install the exhaust manifold.
4. Install the exhaust manifold nuts in sequence.
- Tighten the exhaust manifold nuts in sequence to 16 Nm (12 ft. lbs.).
5. Install the left side spark plugs.
- Tighten the spark plugs to 20 Nm (15 ft. lbs.) when installing spark plugs into a new cylinder head.
- Tighten the spark plugs to 15 Nm (13 ft. lbs.) when reinstalling after initial installation.





6. Install the exhaust manifold heat shield.
7. Install the exhaust manifold heat shield bolts.
- Tighten the exhaust manifold heat shield bolts to 10 Nm (89 inch lbs.).
