Oil Pump Drive Replacement
Oil Pump Drive ReplacementRemoval Procedure
1. Remove the upper intake manifold.

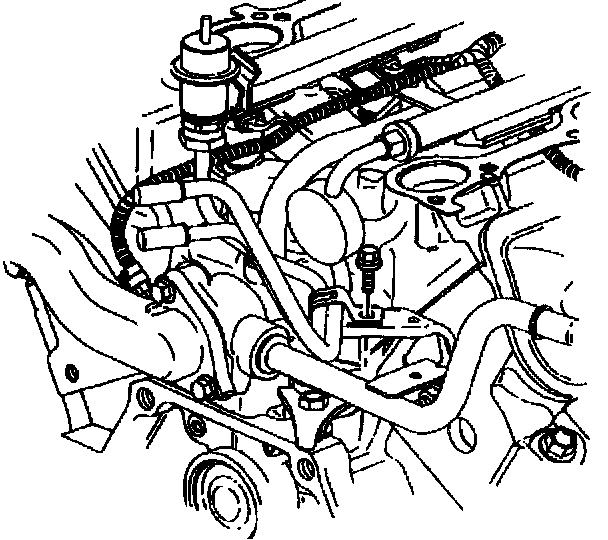

2. Remove the fuel pipe clip bolt.
3. Remove the fuel pipe clip.
4. Remove the fuel feed and the fuel return pipes from the fuel injector rail.

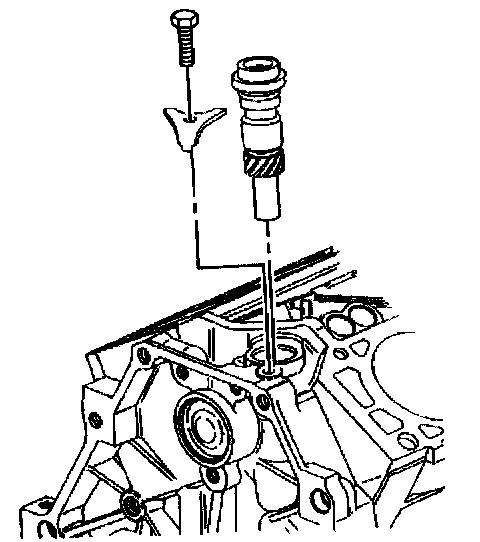

5. Remove the oil pump drive bolt.
6. Remove the oil pump drive clamp.
7. Remove the oil pump drive.
8. Remove the oil pump drive seal.
Installation Procedure
1. Install the oil pump drive seal. Coat the seal or bore in the engine block with engine oil.
2. Coat the drive gear on the drive with prelude GM P/N 1052367 (Canadian P/N 992869) or the equivalent for the full 360 degrees.
3. Install the oil pump drive.
4. Install the oil pump drive clamp.
Notice: Refer to Fastener Notice in Service Precautions.

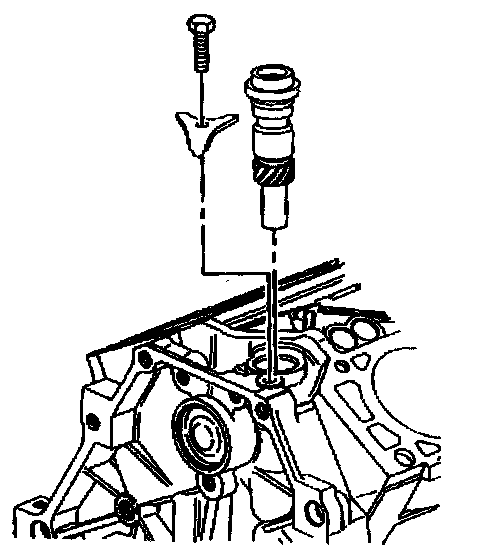

5. Install the oil pump drive clamp bolt.
- Tighten the bolt to 36 Nm (27 ft. lbs.).
6. Install the fuel feed and the fuel return pipes to the fuel injector rail.
7. Install the fuel pipe clip to the fuel lines.

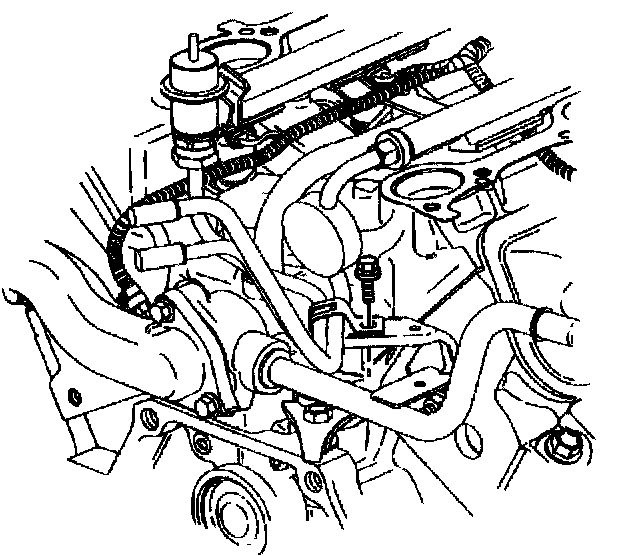

8. Install the fuel pipe clip bolt.
- Tighten the bolt to 8 Nm (71 inch lbs.).
9. Install the upper intake manifold.
