Transmission Control Replacement

Transmission Control Replacement

Tools Required

J 36346 Fascia Retainer Remover

Removal Procedure

1. Remove the console. Refer to Console Replacement in Instrument Panel, Gauge., and Console.

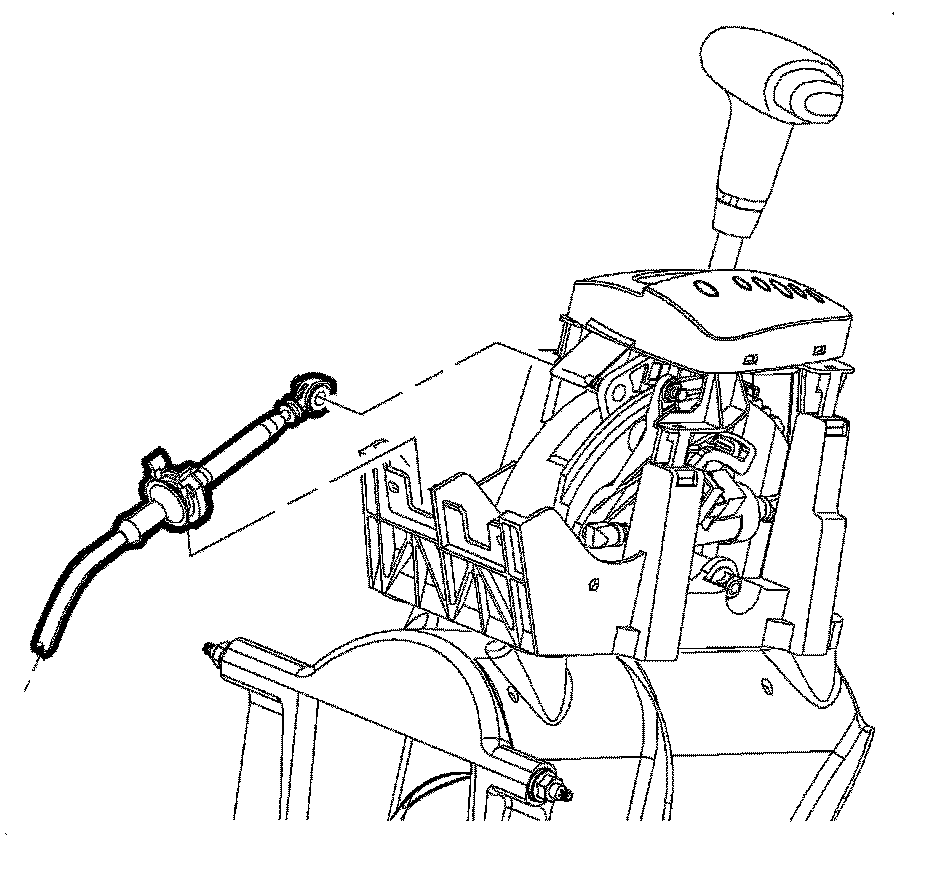

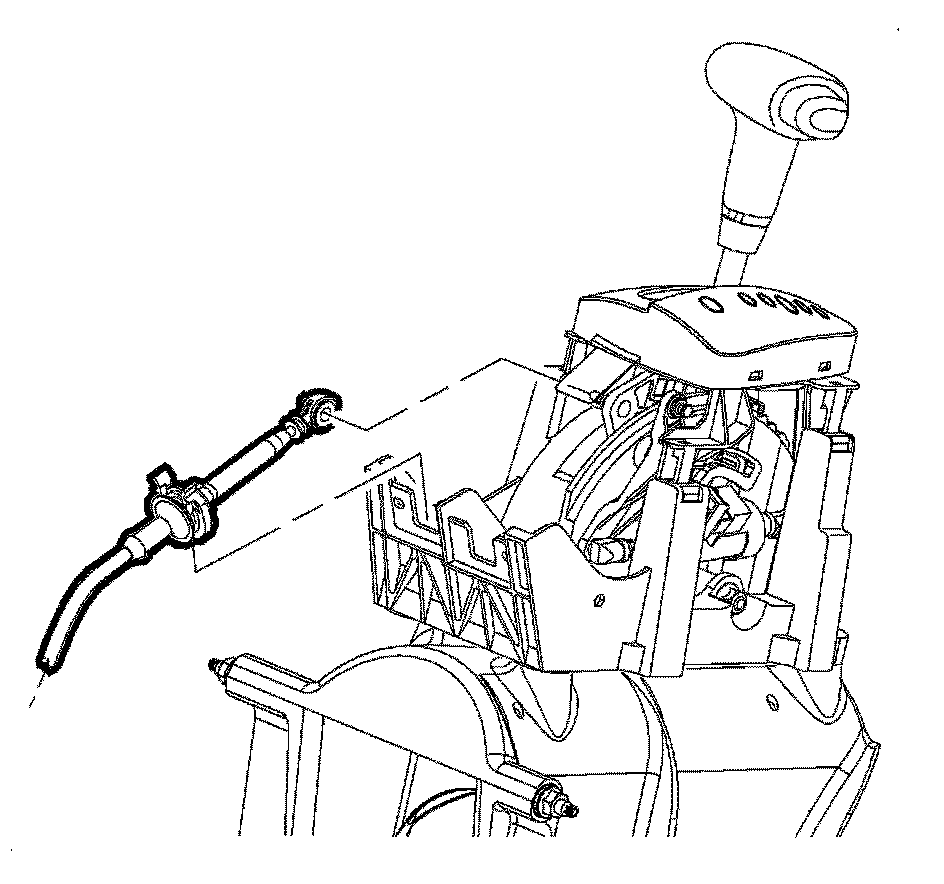

2. Using a J 36346 , disconnect the shifter cable from the control assembly pin.
3. Remove the shifter cable from the control assembly.

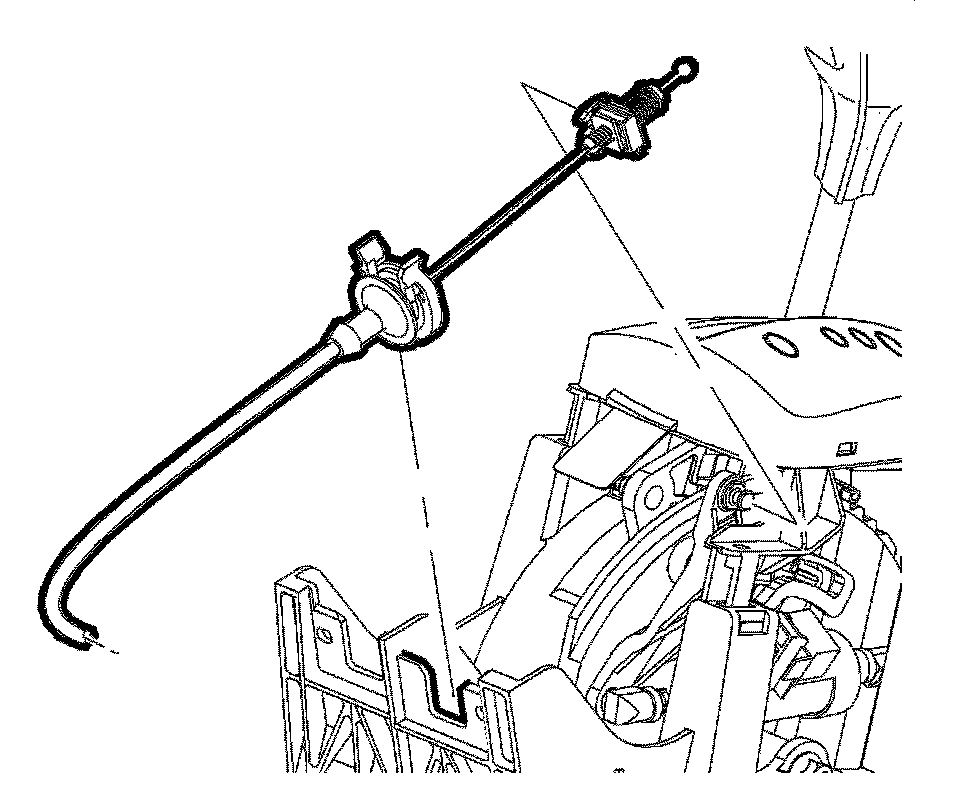

4. Disconnect the park lock cable assembly from the pin on the control assembly.

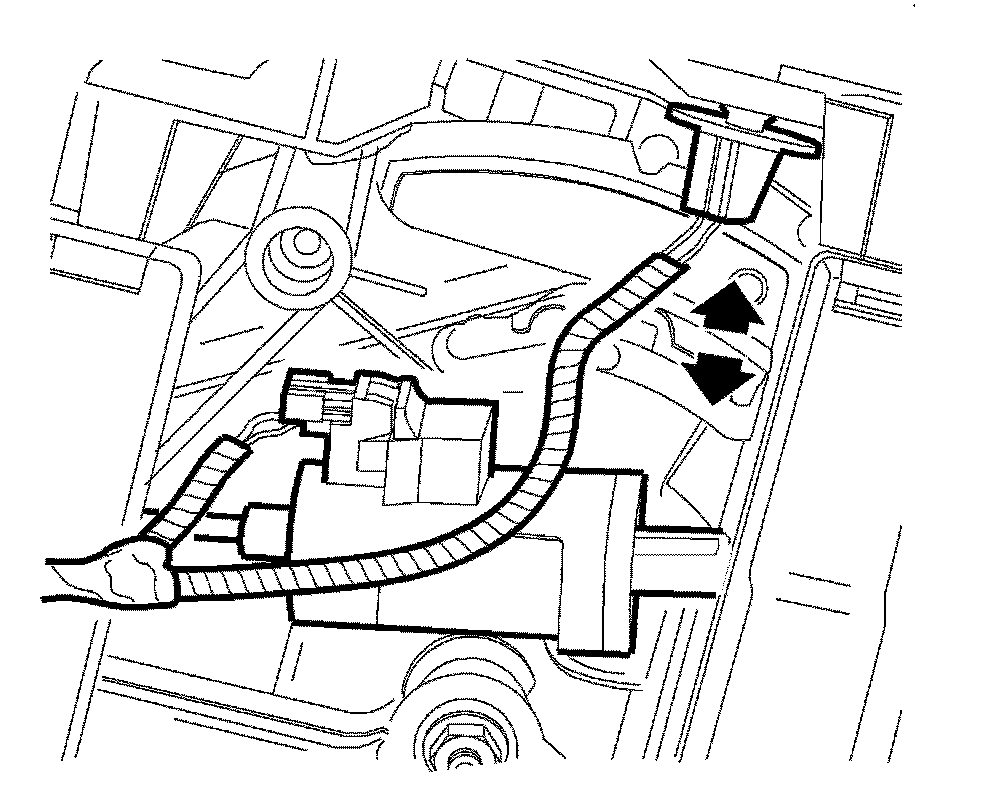

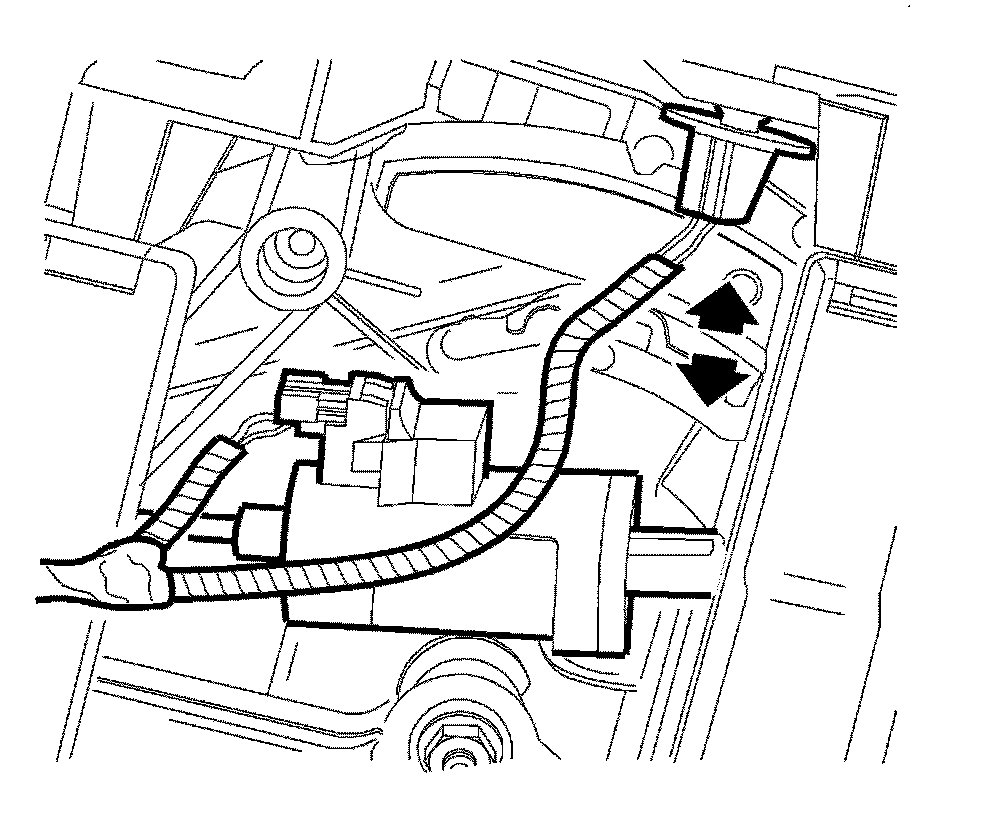

5. Remove the indicator bulb by rotating the bulb a quarter turn and pulling out.

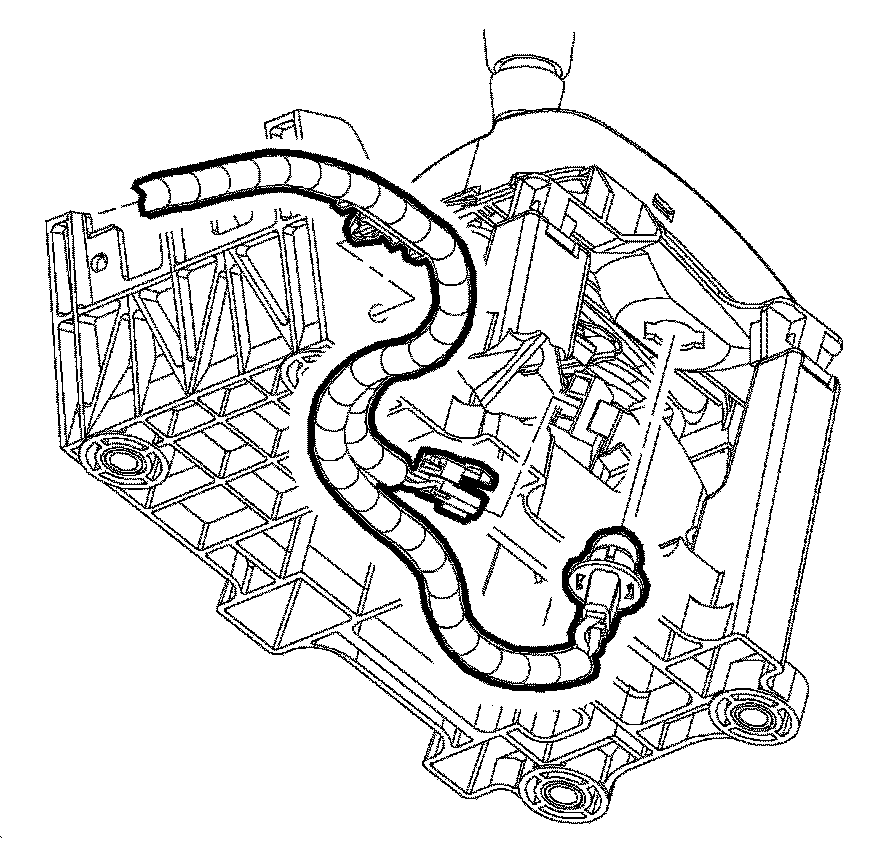

6. Disconnect the control assembly electrical connectors.

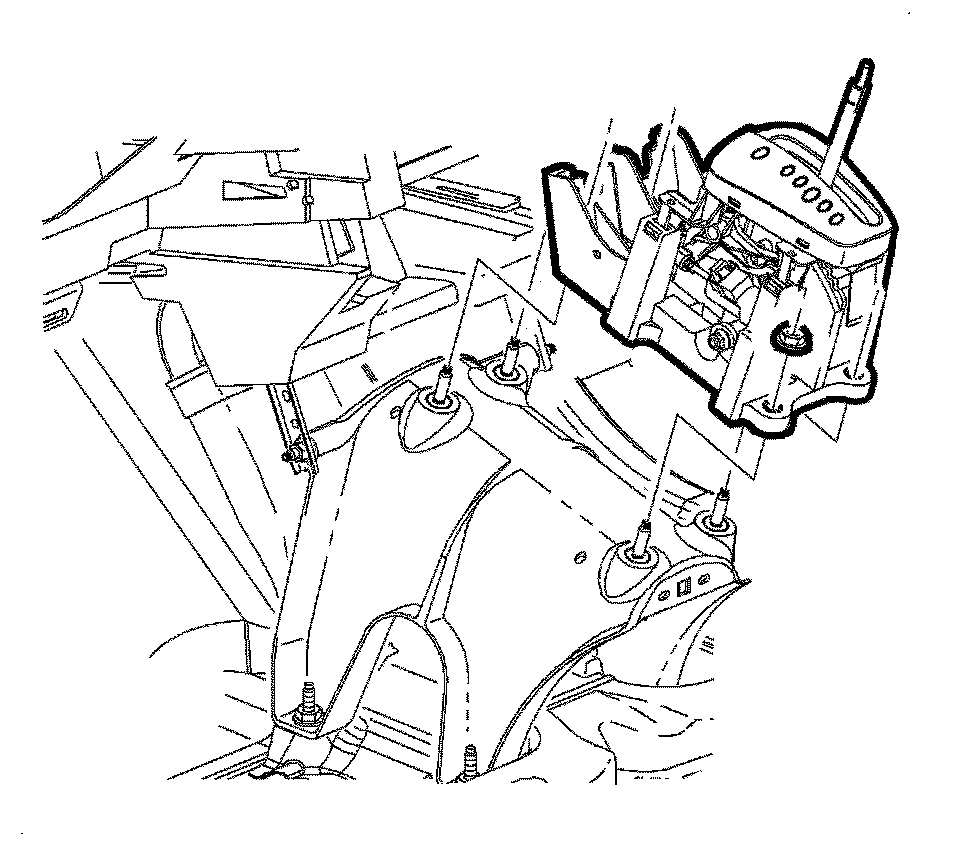

7. Remove the nuts from the control assembly.
8. Remove the control assembly and replace if necessary.

Installation Procedure

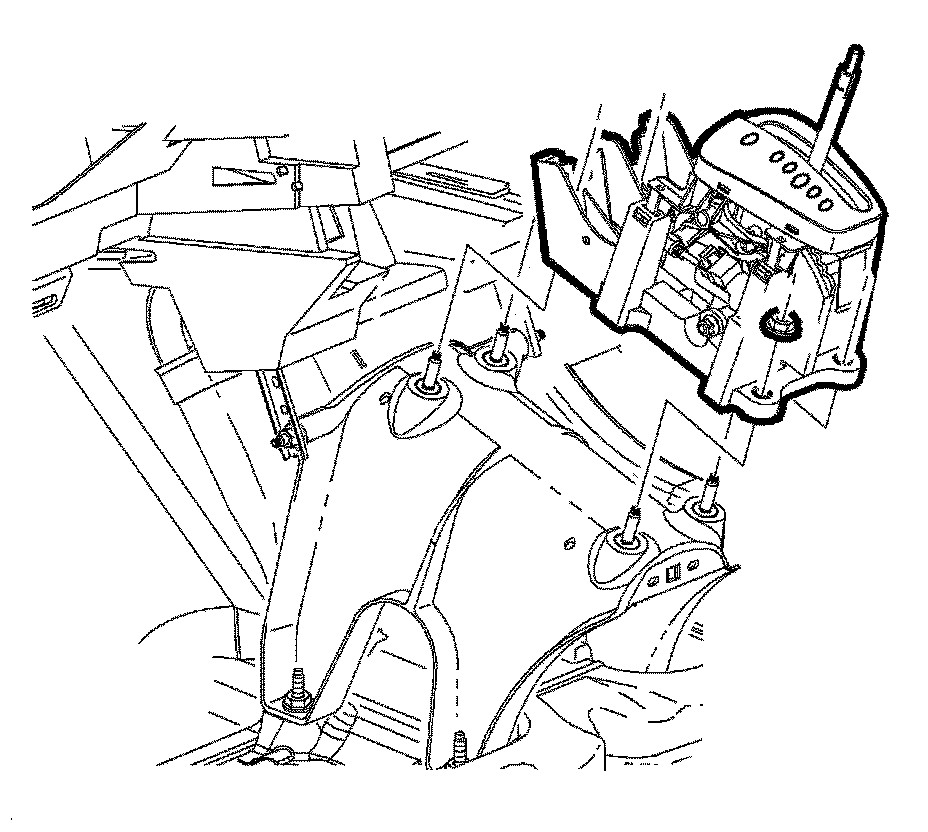

1. Install the control assembly.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

2. Install the control assembly bolts.

Tighten
Tighten the control assembly bolts to 25 Nm (18 lb ft).






3. Connect the control assembly electrical connectors.






4. Install the indicator bulb by inserting and rotating one-quarter turn.

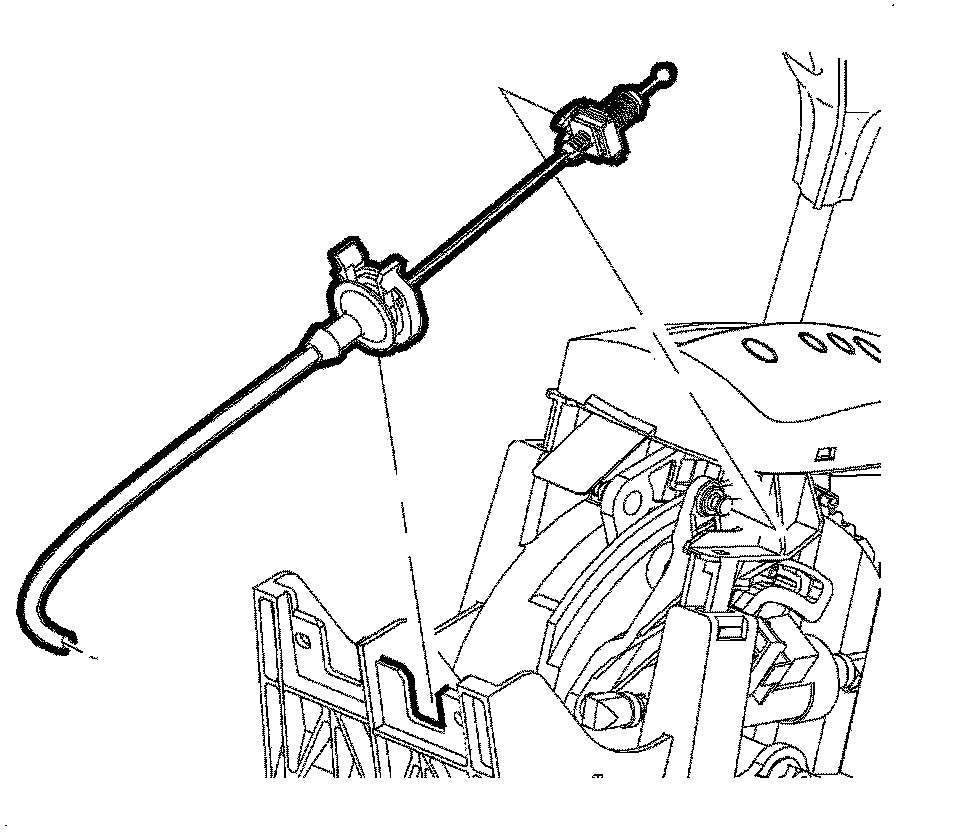

5. Install the park lock cable onto the control assembly.
6. Connect the park lock cable onto the control assembly pin.






7. Install the shifter cable onto the control assembly.
8. Connect the shifter cable onto the control assembly pin.
9. Install the console.
