Parking Lock Cable: Service and Repair
Park Lock Cable ReplacementRemoval Procedure
Caution: Refer to Battery Disconnect Caution in Service Precautions.
1. Disconnect the negative battery cable.
2. Remove the console.
3. Remove the left sound insulator.
4. Remove the knee bolster.
5. Place the transmission shift lever in the P (Park) position.
Important: Do not proceed to the next step with the key in any other position.
6. Turn the ignition key to the RUN position

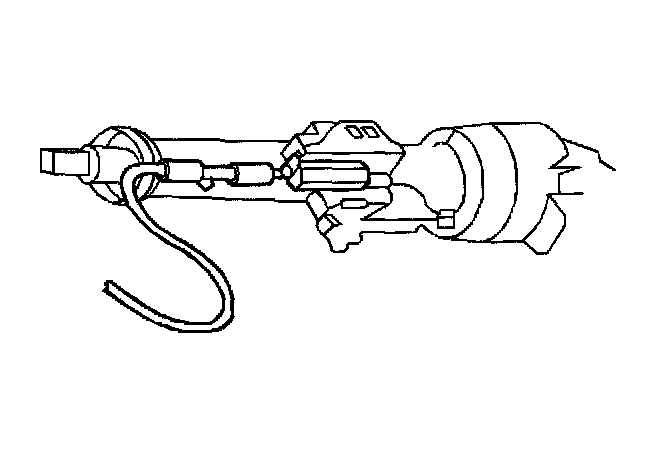

7. Insert a screwdriver blade into the slot provided in the ignition switch inhibitor.
8. Depress the cable latch. Pull the control cable from the inhibitor.

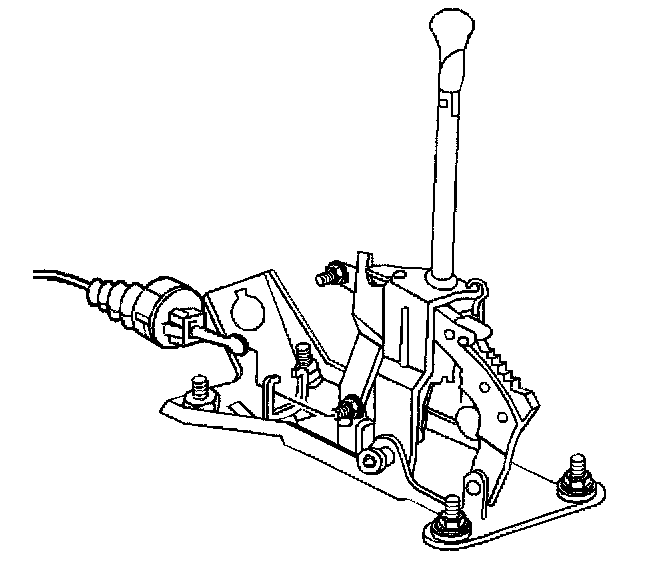

9. Push the cable connector lock button at the shifter base to the up position.
10. Snap the cable from the park/lock lever pin
11. Depress the two cable latches. Remove the control cable latches from the automatic transmission control.
12. Remove the control cable clips.
Installation Procedure

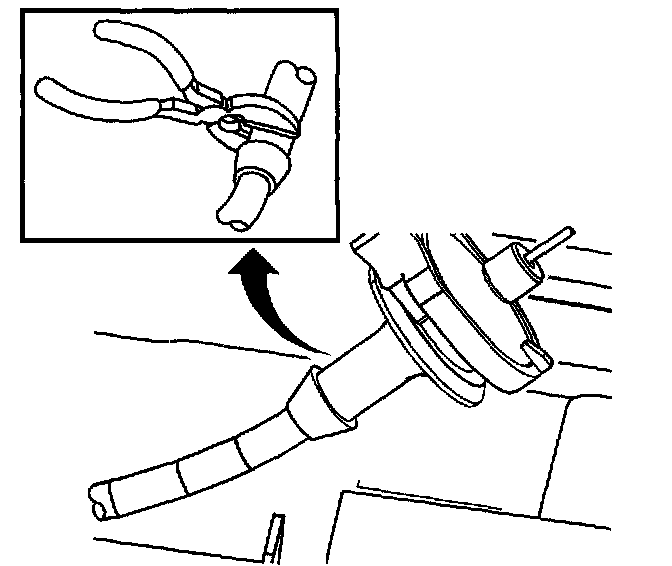

1. Cut the park lock cable adjuster and cable off at the location just before the end of the adjuster barb.
2. Tie the inhibitor end of the new cable to the old cable in an overlapping fashion using zip ties or electrical tape.
3. Carefully use the old cable to route the new cable. If the cable becomes stuck, move the lower part of the cable toward the RH side of the vehicle while pulling the upper half gently.
4. The cable is routed between the HVAC plenum and the vehicle cowl.
Important: When installing a new park/lock cable, keep the shipping cover gage attached until you are instructed to detach it. The shipping cover gage will aid in the proper positioning of the cable.
5. Ensure that the cable lock button is in the up position. Place the shift lever in P (Park).

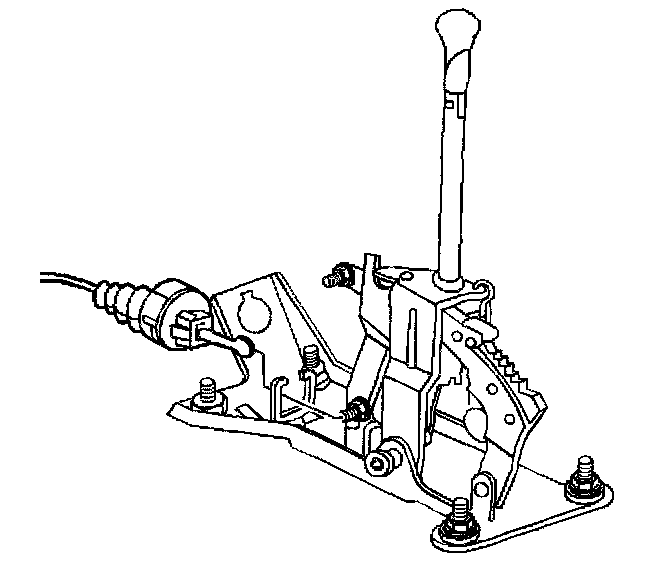

6. Snap the control cable connector into the automatic transmission control.
7. Place the ignition key in the RUN position.
Important: Do not insert the cable with the key in any other position.

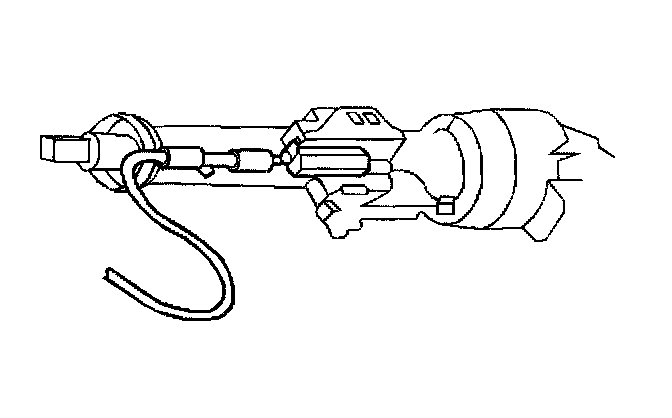

8. Snap the control cable into the inhibitor housing until the snap lock is seated.
9. Remove the shipping cover gauge.
10. Turn the key to the OFF position.

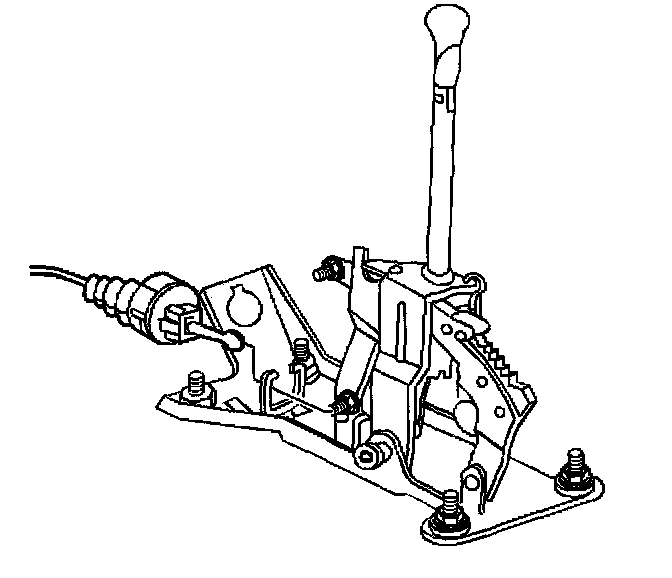

11. Snap the control cable end onto the shift park/lock lever pin.
12. Push the cable connector hose forward in order to remove any slack.
13. With no load applied to the connector nose. snap the cable connector lock button down.
Important: Test for proper operation of the park/lock control cable before installing the steering column to the instrument panel.
14. Raise and connect the steering column.
15. Tighten the lower steering column bracket bolts.
16. Install the knee bolster.
17. Install the left sound insulator.
18. Install the console.
19. Connect the negative battery cable.
Inspection Procedure
Important:
^ No gap may exist between the metal terminal stop and the protruding end of the white plastic collar. If a gap does exist between the terminal stop and the collar, adjust the position of the park lock cable.
^ The white plastic collar must be flush or recessed about 1 mm (0.04 inch) within the ignition park lock housing. If the white plastic collar is not in the proper location, adjust the position of the park lock cable.

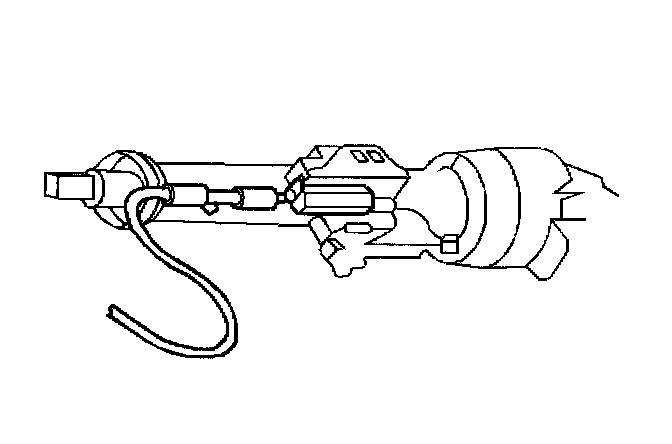

1. Ensure that the terminal stop on the end of the park/lock cable is touching the white collar that protrudes from the ignition switch. Complete the following steps in order to inspect:
1.1. Turn the lock cylinder to the OFF position.
1.2. Place the floor shift lever into the P (Park) position.
1.3. Verify the correct position of the terminal stop.
2. Ensure that the lock cylinder remains in the Lock position.
3. Ensure that the floor shift lever remains in the P (Park) position.
4. Gently depress the park/lock button on the floor shift lever until resistance is felt.
5. Verify that the white plastic collar travels no more than 1.5 mm (0.06 inch). The floor shift lever must not come out of P (Park).
6. With the lock cylinder On, verify proper movement of the floor shift lever through all of the gear selections.
7. While moving the floor shift lever through all of the drive gears, verify that the lock cylinder cannot be turned to the OFF position.
Important: Five inspections are used in order to verify proper installation. The installation must pass all 5 tests. If one or more of the tests fail, adjust the park/lock cable.
8. Ensure that the key can be removed with the lock cylinder in the OFF position and the floor shift lever in the P (Park) position.
