Service Procedure

The following procedure provides instructions for installing a plastic retainer in the seat belt connector on both the driver and front seat passenger seat belt lower webbing attachment point.





1. Open the driver's door and locate the seat belt webbing (3) lower attachment point (2) directly below and inboard of the seat recliner handle (1).





2. Raise the seat recliner handle to access the opening in the seat belt connector (4).

Important

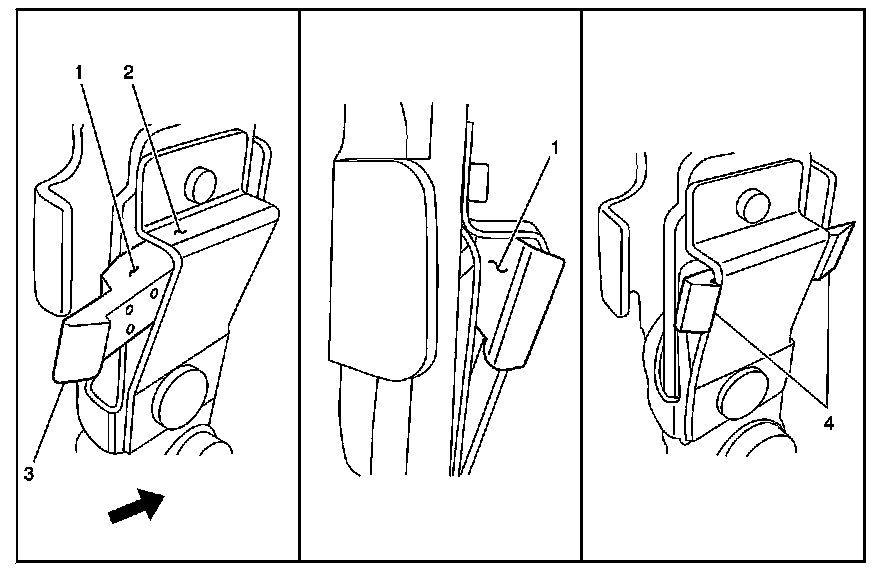

Visually inspect the retainer (3) and note the taper on the backside. The wider portion of the retainer (1) must be at the top (2) of the seat belt connector when installing.

3. Using long nose pliers, install one plastic retainer in the opening in the seat belt connector as shown. When properly installed, the wider portion of the retainer (1) will be at the top and a snap type sound will be heard when the locking feature (4) on each end of the retainer engage the edges of the seat belt connector.

4. Repeat this procedure on the right front passenger seat belt connector.
