Starter Motor: Service and Repair

STARTER MOTOR REPLACEMENT

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Raise vehicle. Refer to Vehicle Lifting.

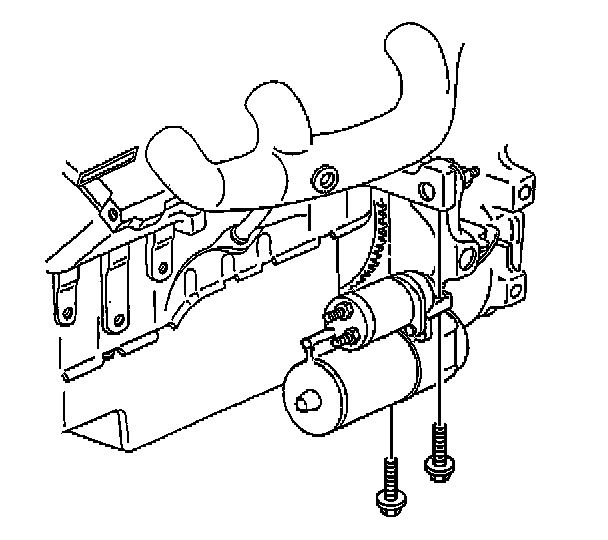

3. Remove the flywheel inspection cover bolts.
4. Remove the flywheel inspection cover.

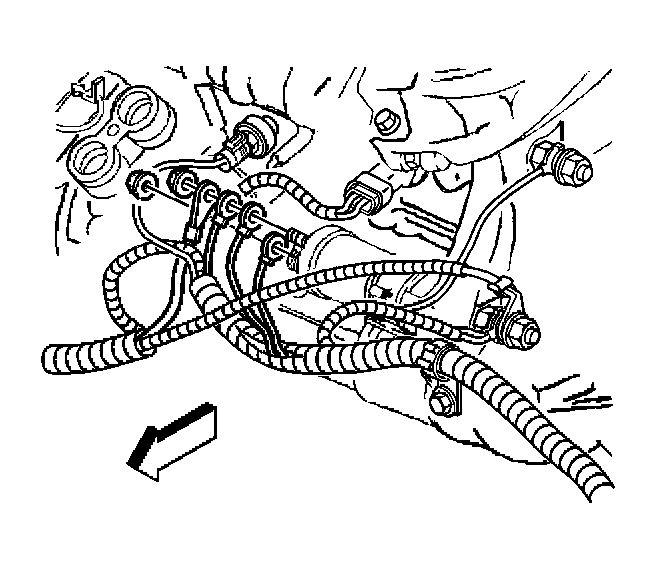

5. Remove the electrical connections from the starter motor.




6. Remove the starter motor mounting bolts.
7. Remove the starter motor.

INSTALLATION PROCEDURE

NOTE: Before installing the starter motor to the engine, tighten the nut next to the cap on the solenoid BAT terminal. If this terminal is not tight in the solenoid cap, the cap may be damaged during installation of electrical connections and cause the starter motor to fail later.

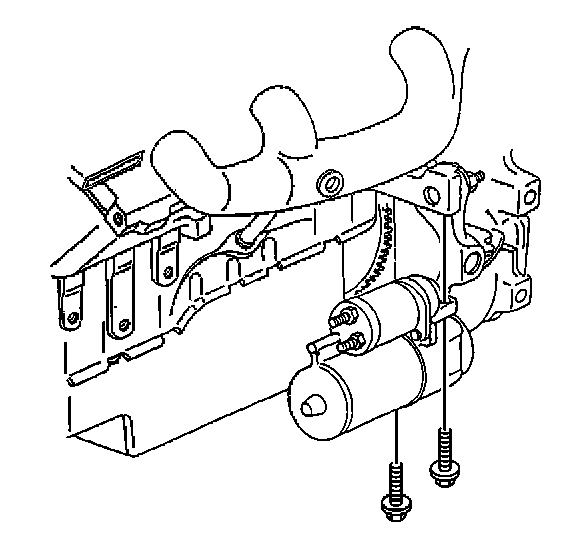

1. Install the starter motor to the engine.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the starter motor mounting bolts.

Tighten
Tighten the bolts to 40 N.m (30 lb ft).




3. Install the electrical connection to the battery terminal on the solenoid.

Tighten
Tighten the battery terminal nut to 17 N.m (13 lb ft).

4. Install the electrical connections to the S terminal on the solenoid.

Tighten
Tighten solenoid S terminal nut to 3 N.m (27 lb in).

5. Install the flywheel inspection cover.
6. Install the flywheel inspection cover bolts.

Tighten
Tighten the flywheel inspection cover bolts to 10 N.m (89 lb in).

7. Lower vehicle.
8. Connect the negative battery cable.
