Exhaust Manifold

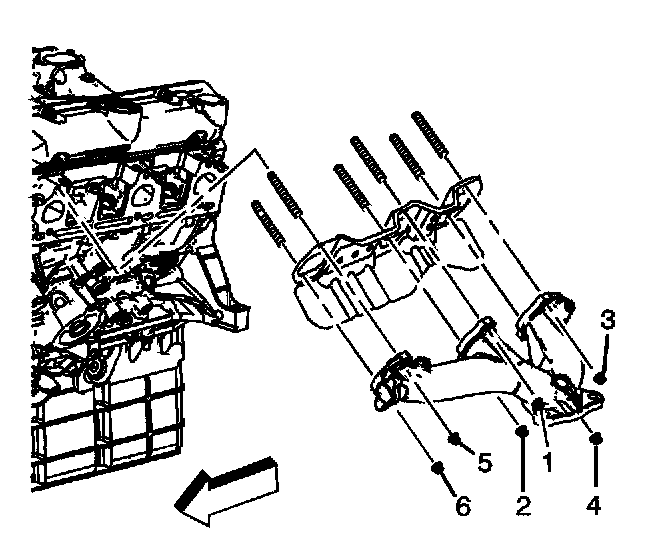

Exhaust Manifold Installation - Left sequence





Exhaust Manifold Installation - Right sequence

Exhaust Manifold Nut-3.5L 16 Nm (12 ft. lbs.)
Exhaust Manifold Heat Shield Bolt-3.5L 18 Nm (12 ft. lbs.)
Exhaust Manifold Pipe to Exhaust Manifold Nut 45 Nm (33 ft. lbs.)
