Front

SEAT BELT BUCKLE REPLACEMENT - FRONT

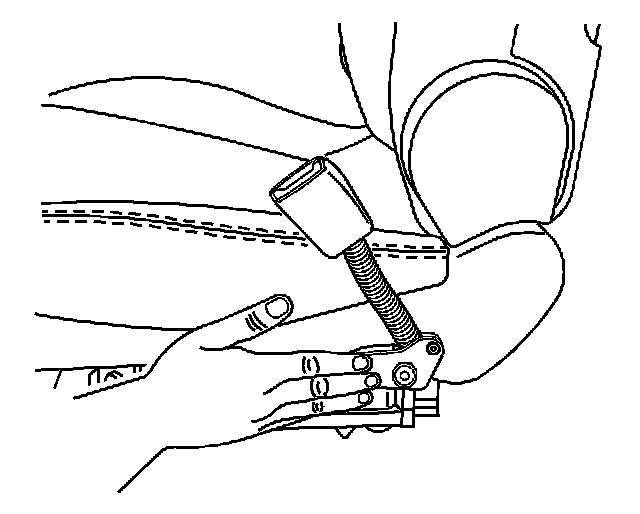

REMOVAL PROCEDURE
1. Remove the front seat.




2. Remove the seat belt buckle fastener.
3. Remove the seat belt buckle.

INSTALLATION PROCEDURE




1. Install the seat belt buckle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the seat belt buckle fastener.

Tighten
Tighten the fastener to 35 N.m (25 lb ft).

3. Install the front seat.
