Bracket Replacement - Knee Bolster

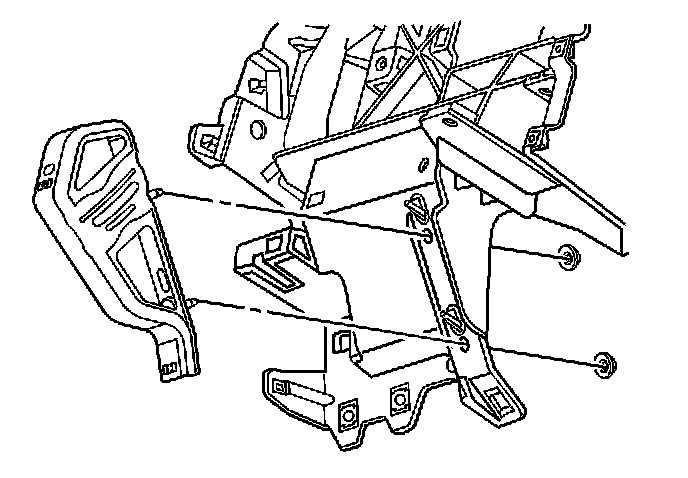

BRACKET REPLACEMENT - KNEE BOLSTERREMOVAL PROCEDURE
1. Remove the instrument panel (I/P) pad.
2. Remove the knee bolster bracket nuts.
3. Remove the knee bolster bracket.
INSTALLATION PROCEDURE
1. Install the knee bolster bracket.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the knee bolster bracket nuts.
Tighten
Tighten the nuts to 10 N.m (89 lb in).
3. Install the I/P pad.
