Recall - OBD II Misfire Monitor Disabled: Overview
Product Emission Recall - OBDII Misfire Monitor - Reprogram PCM # 03048 - (09/09/2003)03048 -- OBDII Misfire Monitor - Reprogram PCM
2004 Chevrolet Malibu
With 3.5L V6 Engine (RPO LX9 - VIN Code 8) Engine
Condition
General Motors has decided to conduct a Voluntary Emission Recall involving certain 2004 Chevrolet Malibu model vehicles equipped with 3.5L V6 (RPO LX9 - VIN Code 8) engine. These vehicles were built with a condition that incorrectly disables the On-Board Diagnostic (OBD) misfire monitor above 35 mph.
Correction
Dealers are to reprogram the Powertrain Control Module (PCM).
Vehicles Involved

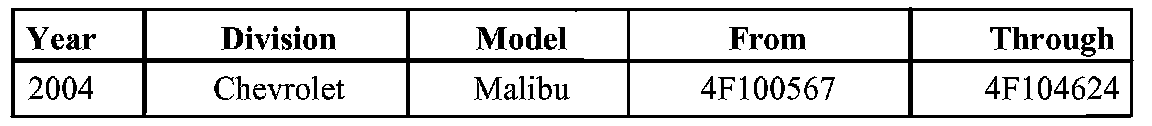

Involved are certain 2004 Chevrolet Malibu model vehicles equipped with 3.5L V6 (RPO LX9 - VIN Code 8) engine and built within the VIN breakpoints shown.
Important
Dealers should confirm vehicle eligibility through GMVIS (GM Vehicle Inquiry System) prior to beginning recall repairs. [Not all vehicles within the above breakpoints may be involved].
Involved vehicles have been identified by Vehicle Identification Number, Computer listings containing the complete Vehicle Identification Number, customer name and address data have been prepared, and are being furnished to involved dealers with the recall bulletin. The customer name and address data furnished will enable dealers to follow-up with customers involved in this recall. Any dealer not receiving a computer listing with the recall bulletin has no involved vehicles currently assigned.
These dealer listings may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any other purpose is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this listing to the follow-up necessary to complete this recall.
Parts Information
The service calibration is included in TIS 2000 data version 9.5, broadcast to dealers via GM Access on September 8, 2003; and on TIS 2000 CD-ROM version 10, scheduled for mailing to dealers on September 26, 2003.
Service Procedure
1. Prep the vehicle for Powertrain Control Module (PCM) reprogramming.
2. Program the PCM using TIS 2000 data version 9.5, broadcast to dealers via GM Access on September 8, 2003, or TIS 2000 CD-ROM version 10, scheduled for mailing to dealers on September 26, 2003. Refer to up-to-date Techline equipment user instructions.
3. CALIFORNIA VEHICLES ONLY. Complete a "Proof of Correction Certificate" upon campaign completion.
4. Install the GM Recall Identification Label.
Recall Identification Label
Place a Recall Identification Label on each vehicle corrected in accordance with the instructions outlined in this Product Recall Bulletin. Each label provides a space to include the recall number and the five (5) digit dealer code of the dealer performing the recall service. This information may be inserted with a typewriter or a ball point pen.
Put the Recall Identification Label on a clean and dry surface of the radiator core support in an area that will be visible to people servicing the vehicle. When installing the Recall Identification Label be sure to pull the tab to allow the adhesion of the clear protective covering. Additional Recall Identification Labels for US dealers can be obtained from Dealer Support Materials by either ordering on the web from DWD Store.
Courtesy Transportation
The General Motors Courtesy Transportation program is intended to minimize customer inconvenience when a vehicle requires a repair that is covered by the New Vehicle Limited Warranty. The availability of courtesy transportation to customers whose vehicles are within the warranty coverage period and involved in a product recall is very important in maintaining customer satisfaction. Dealers are to ensure that these customers understand that shuttle service or some other form of courtesy transportation is available and will be provided at no charge. Dealers should refer to the General Motors Service Policies and Procedures Manual for Courtesy Transportation guidelines.
Claim Information

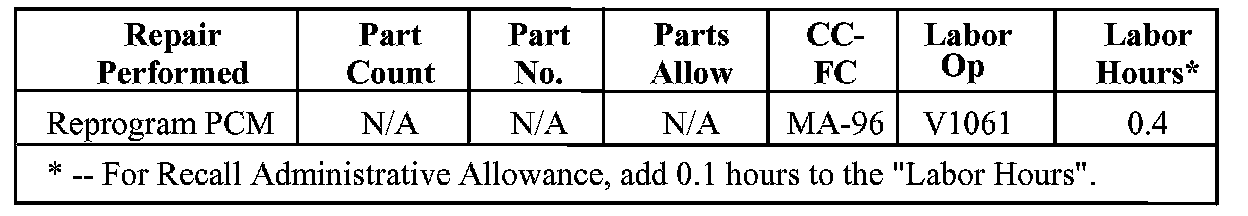

Submit a Product Recall claim with the information shown.
Refer to the General Motors WINS claim Processing Manual for details on Product Recall claim Submission.
Customer Notification
Customers will be notified of this recall on their vehicles by General Motors (see copy customer letter shown in this bulletin).
In order to ensure full protection under the emission warranty, and the right to participate in future recalls, the customer notification letter recommends that customers have their vehicles serviced as soon as possible. It also advises that failure to do so could legally be determined to be lack of proper maintenance. The vehicle may fail a state or local emission inspection test if the recall work is not completed.
Dealer Recall Responsibility
All unsold new vehicles in dealers' possession and subject to this recall MUST be held and inspected/repaired per the service procedure of this recall bulletin BEFORE customers take possession of these vehicles.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. This could be done by mailing to such customers a copy of the customer letter shown in this bulletin. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this recall enters your vehicle inventory, or is in your dealership for service in the future, please take the steps necessary to be sure the recall correction has been made before selling or releasing the vehicle.
When a California emissions recall is completed by a GM dealer, the dealer must provide the vehicle owner a "Proof Of Correction Certificate" which the owner may need to present to the California Department Of Motor Vehicles (DMV) when renewing their vehicle registration. Without this correction certificate, the owner may be unable to renew their vehicle registration.
Additional Certificates can be obtained, at no charge, from Dealer Support Materials.
