Converter (Bank 2)

Catalytic Converter Replacement (Bank 2)
^ Tools Required
- J 39194-B Heated Oxygen Sensor Wrench

Removal Procedure

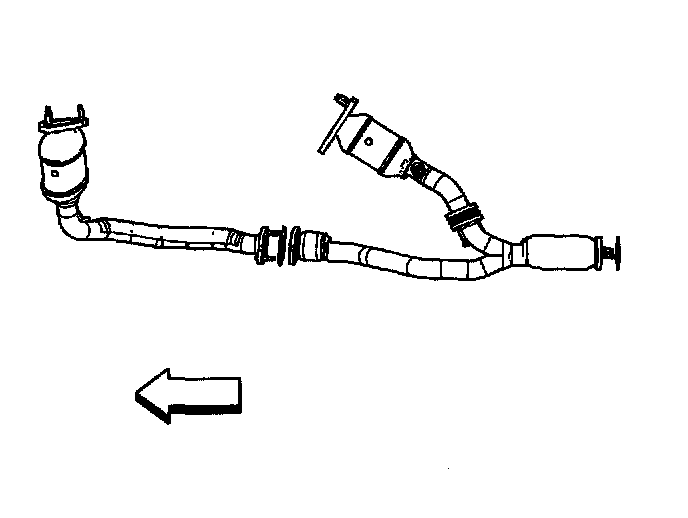

Important: The rear exhaust pipe and catalytic converter are only serviced as an assembly; components are not serviced separately.

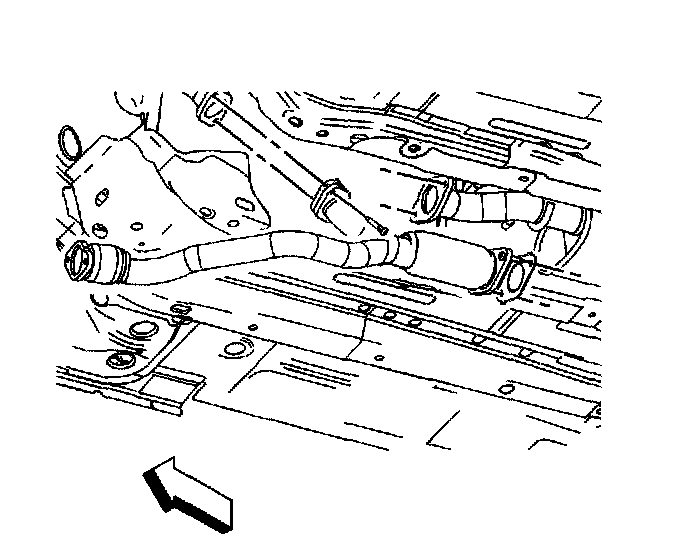

1. Remove the exhaust crossover pipe.





Important: The heated oxygen sensor (HO2S) 2 uses a permanently attached pigtail and connector. This pigtail should not be removed from the sensor. Damage or removal of the pigtail or connector will affect proper operation of the sensor.

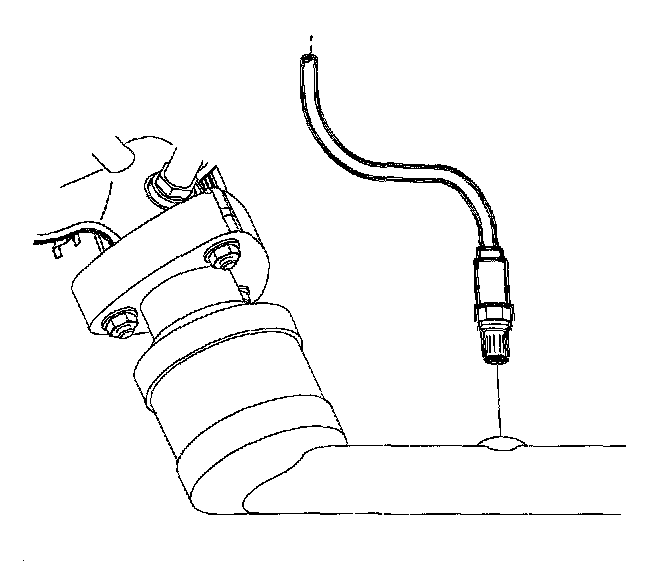

2. Remove HO2S 2 using the J 39194-B.





3. Remove the 2 bolts and 1 exhaust pipe nut at the manifold.
4. Remove the nuts at the outlet of the catalytic converter to crossover pipe.
5. Inspect the exhaust pipe-to-exhaust manifold flange.
Exhaust Pipe to Manifold Flange Warpage:
^ Service Limit: 0.7 mm (0.028 inch) max.
^ Standard: 0.7 mm (0.028 inch) max.

Installation Procedure





1. Install a new gasket on the exhaust manifold studs.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the rear exhaust pipe-to-manifold nut and bolts.
^ Tighten the exhaust pipe-to-manifold nut and bolts to 31 Nm (23 ft. lbs.).
3. Install the catalytic converter outlet gasket and fasten the outlet to crossover pipe with the nuts.
^ Tighten the catalytic convertor to crossover pipe nuts to 31 Nm (23 ft. lbs.).
4. Install the HO2S2 using the J 39194-B.
^ Tighten the oxygen-sensor-to-exhaust manifold to 45 Nm (33 ft. lbs.).
5. Lower the vehicle to the ground, start the engine, and check for exhaust leaks.
