Inlet

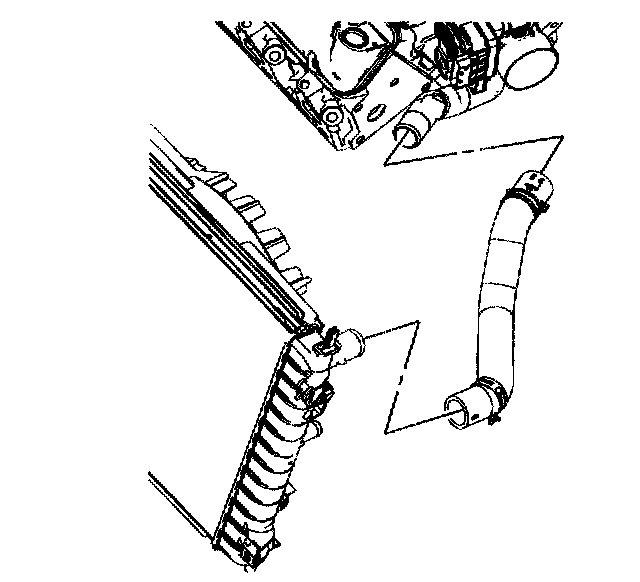

Radiator Hose Replacement- Inlet (LX9)
^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure





1. Drain the coolant.
2. Remove the left headlamp.
3. Reposition the radiator inlet hose clamp at the radiator using the J 38185.
4. Remove the radiator inlet hose from the radiator.
5. Reposition the radiator inlet hose clamp at the engine using the J 38185.
6. Remove the radiator inlet hose from the engine.
7. Remove the radiator inlet hose clamps from the radiator inlet hose.

Installation Procedure





1. Install the radiator inlet hose clamps to the radiator inlet hose.
2. Install the radiator inlet hose to the engine.
3. Reposition the radiator inlet hose clamp at the engine using the J 38185.
4. Install the radiator inlet hose to the radiator.
5. Reposition the radiator inlet hose clamp at the radiator using the J 38185.
6. Install the left headlamp.
7. Fill the coolant.
