Home >> Chevrolet >> 2004 >> Malibu V6-3.5L VIN 8 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Compressor Clutch Does Not Disengage

Compressor Clutch Does Not Disengage

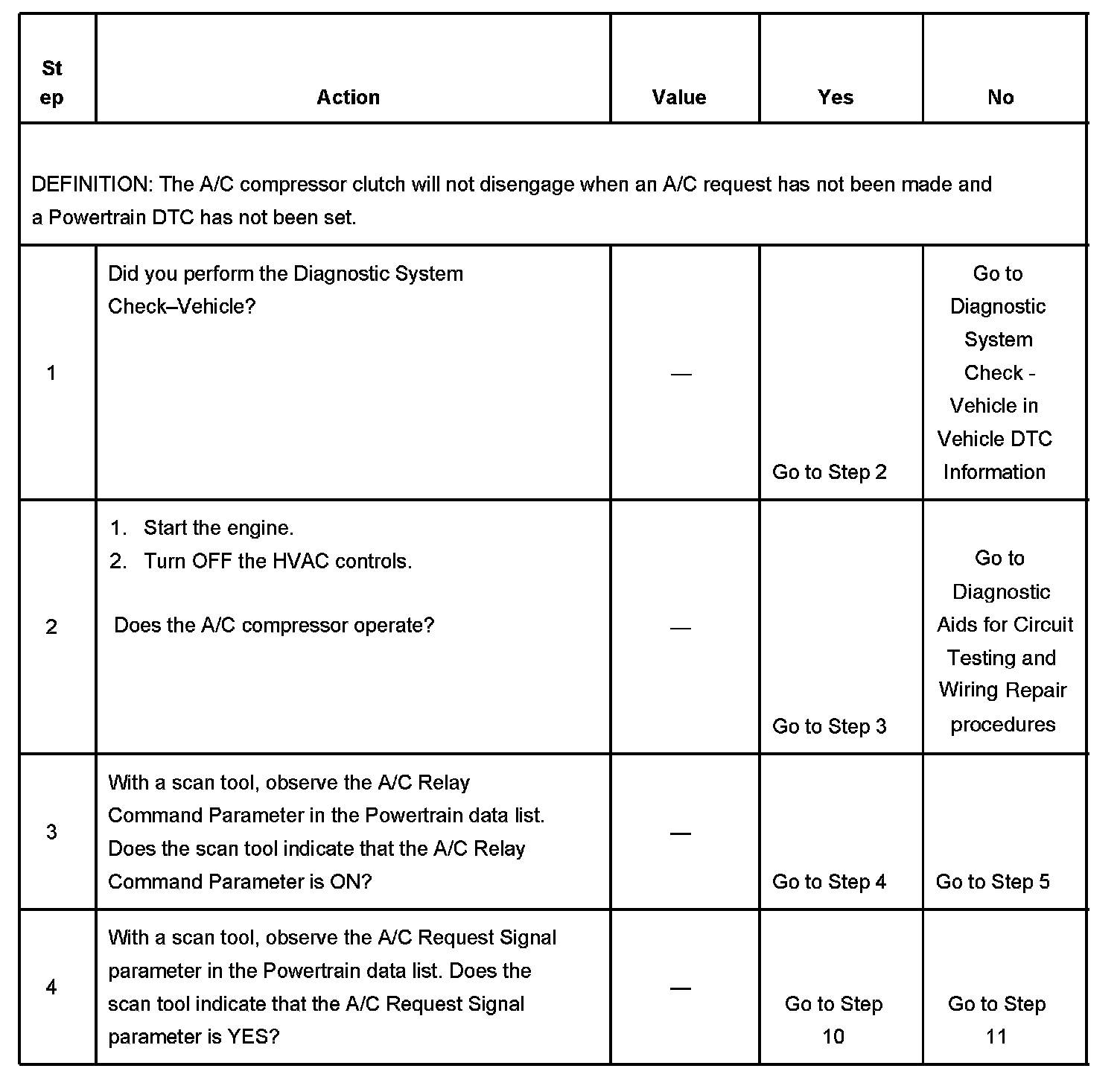

Steps 1 - 4:

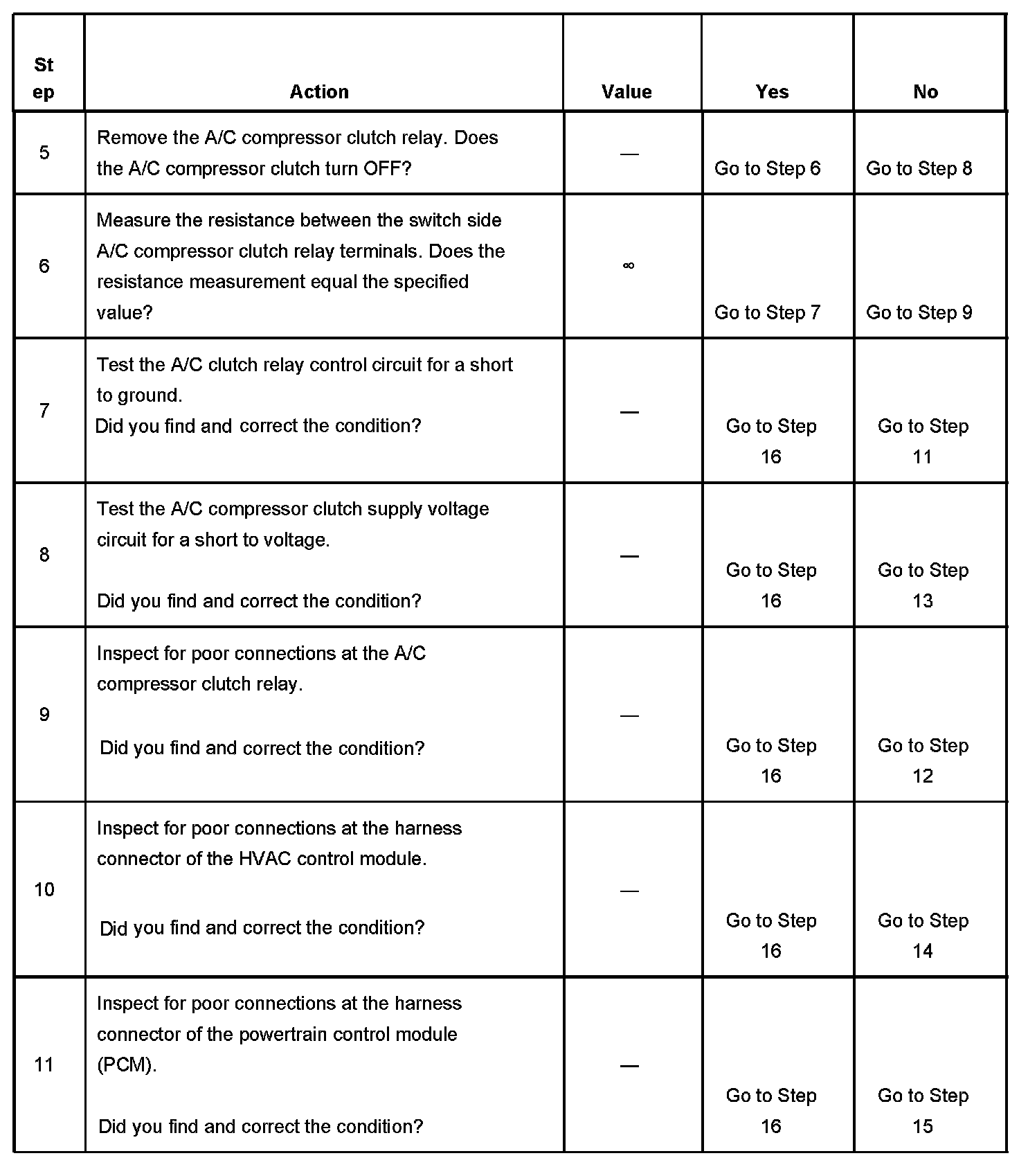

Steps 5 - 11:

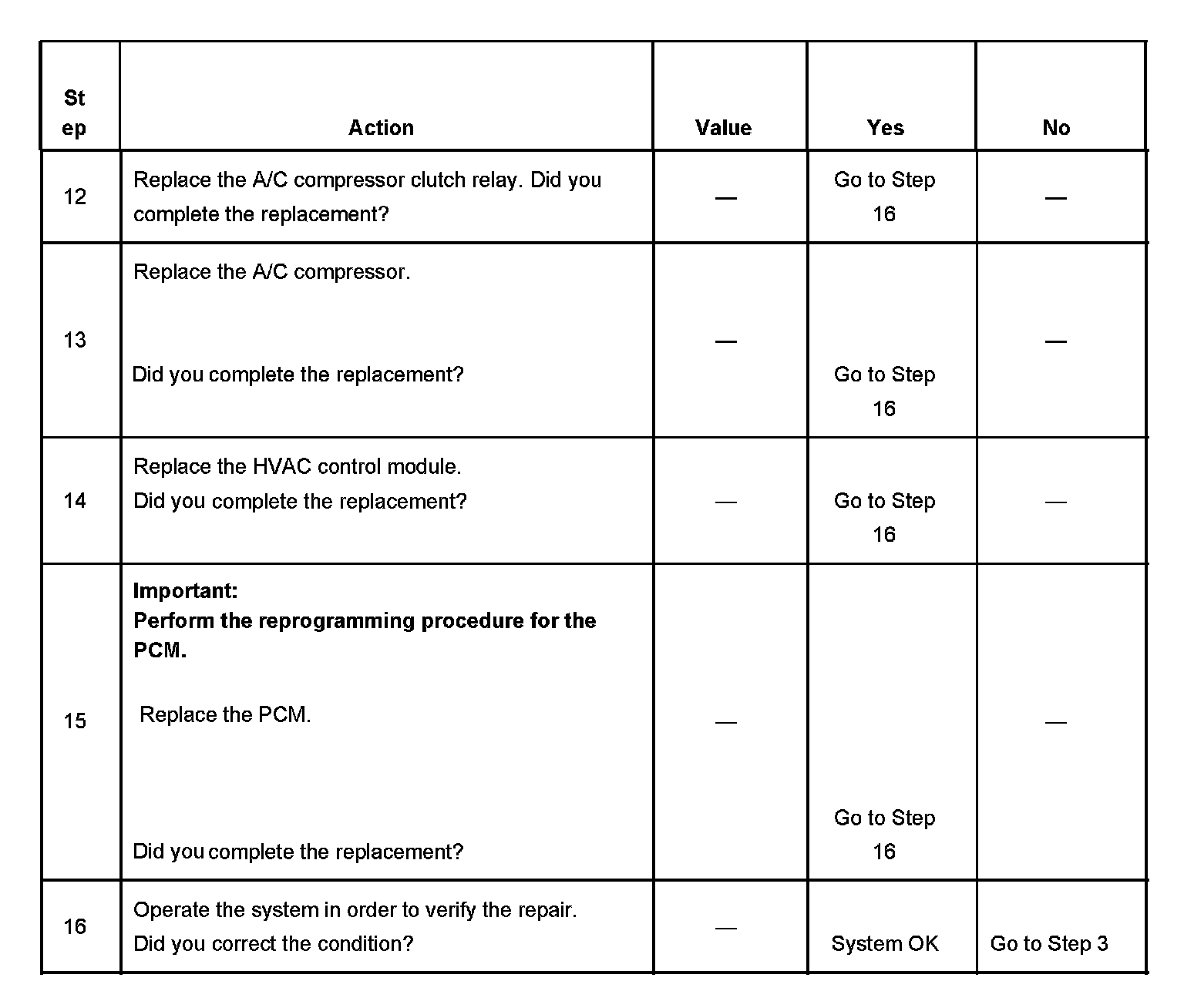

Steps 12 - 16:
