Compressor Clutch Does Not Engage

HVAC COMPRESSOR CLUTCH DOES NOT ENGAGE

TEST DESCRIPTION

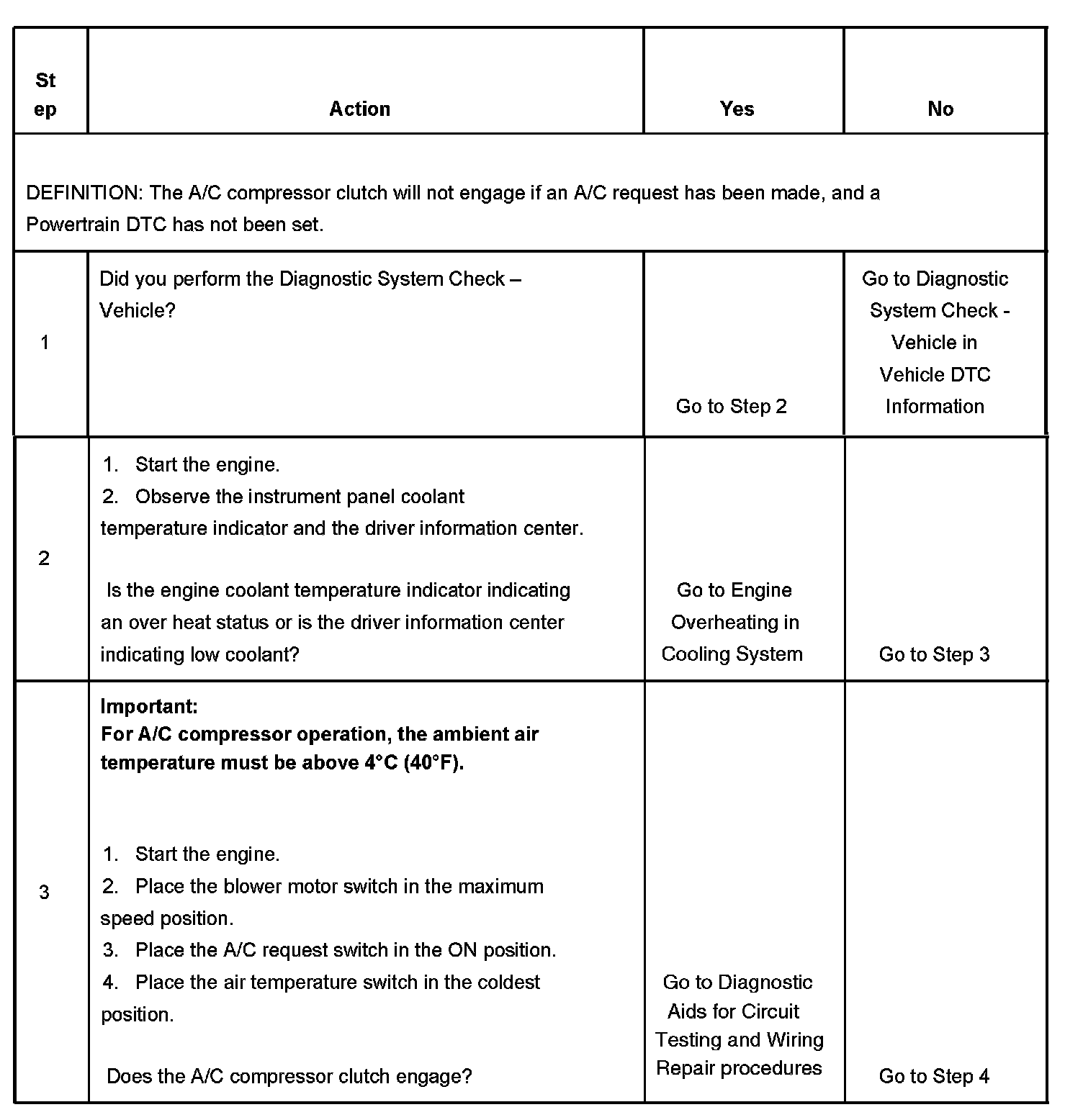

Steps 1-3:

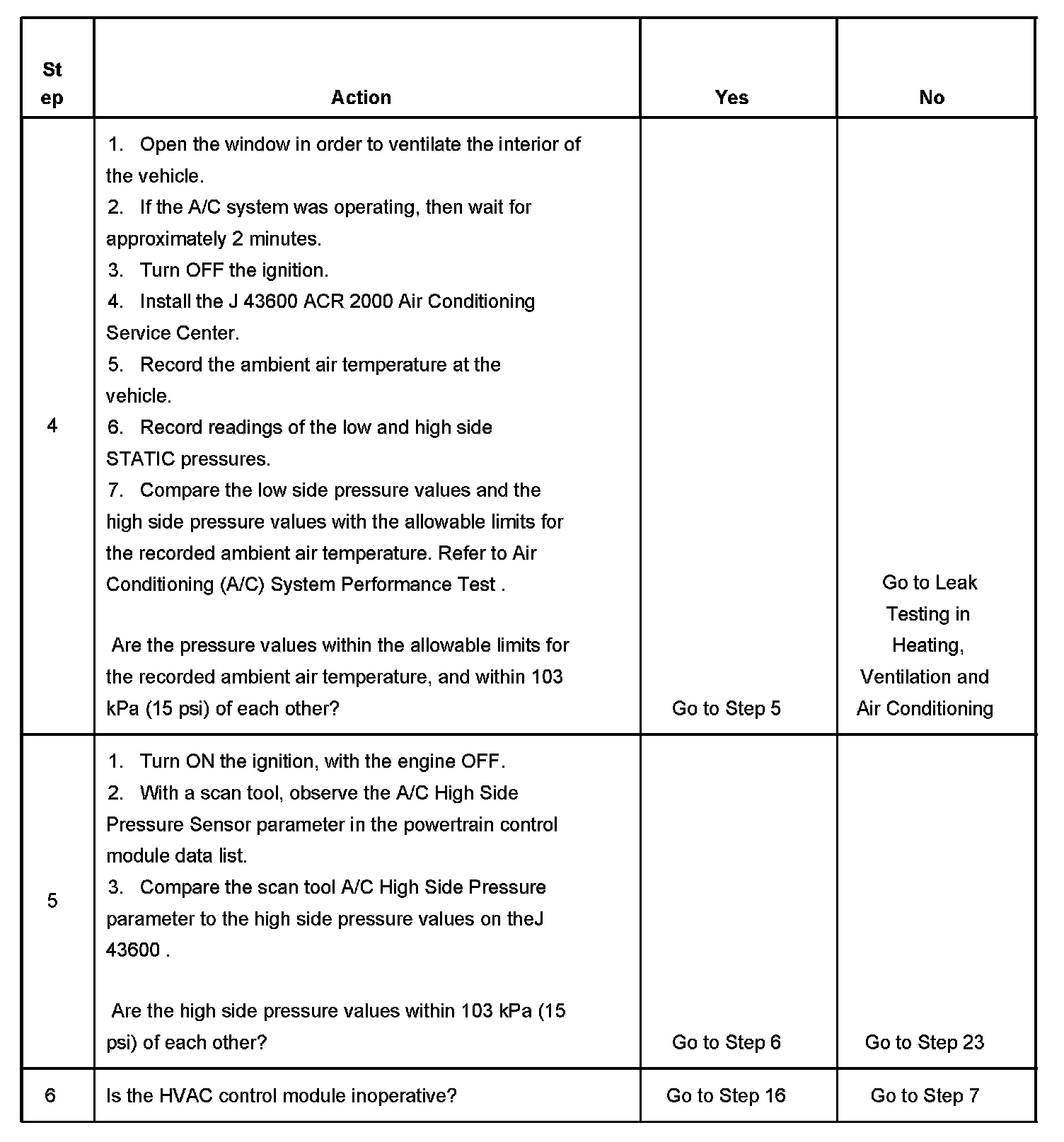

Steps 4-6:

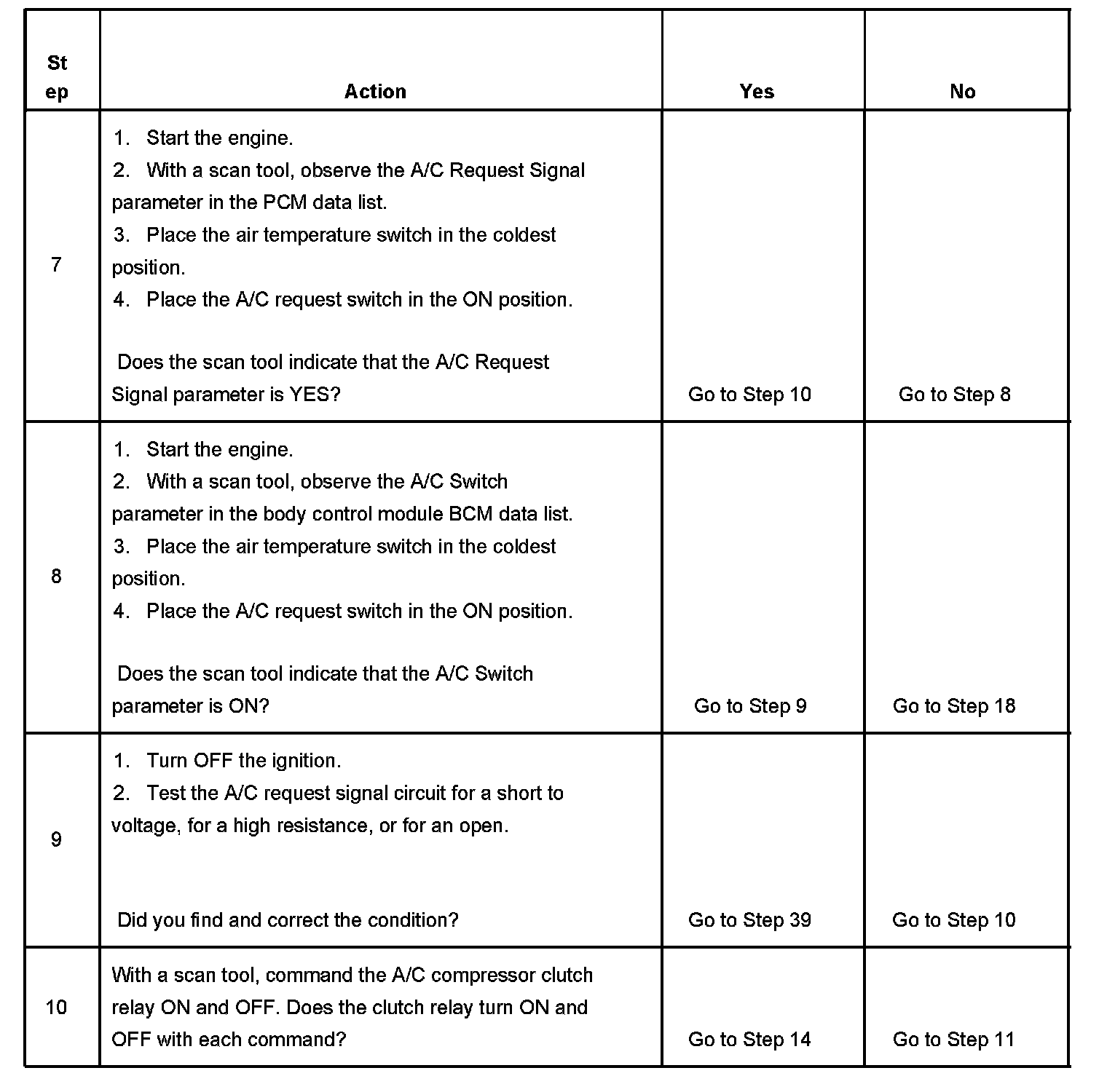

Steps 7-10:

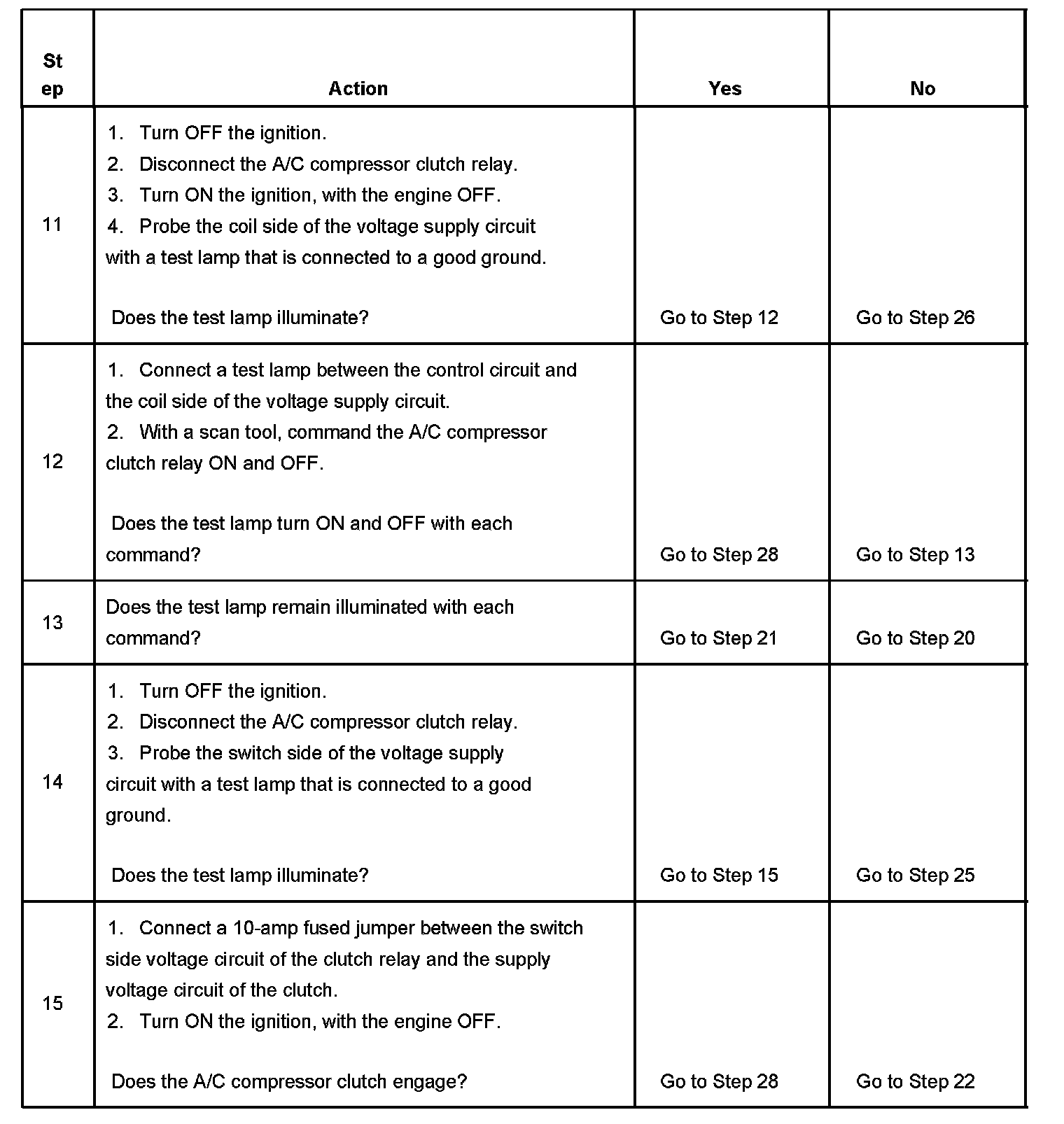

Steps 11-15:

Steps 16-21:

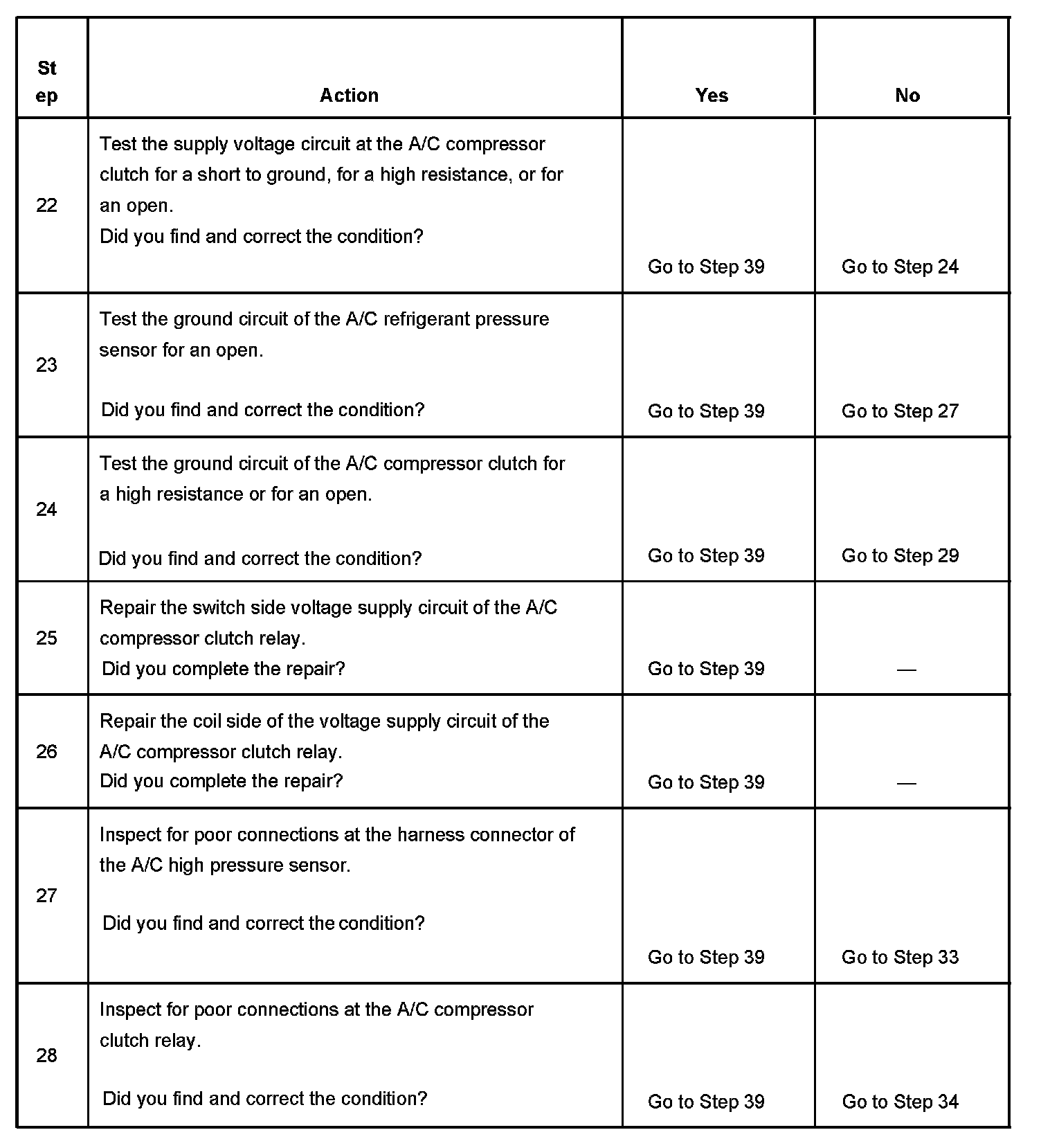

Steps 22-28:

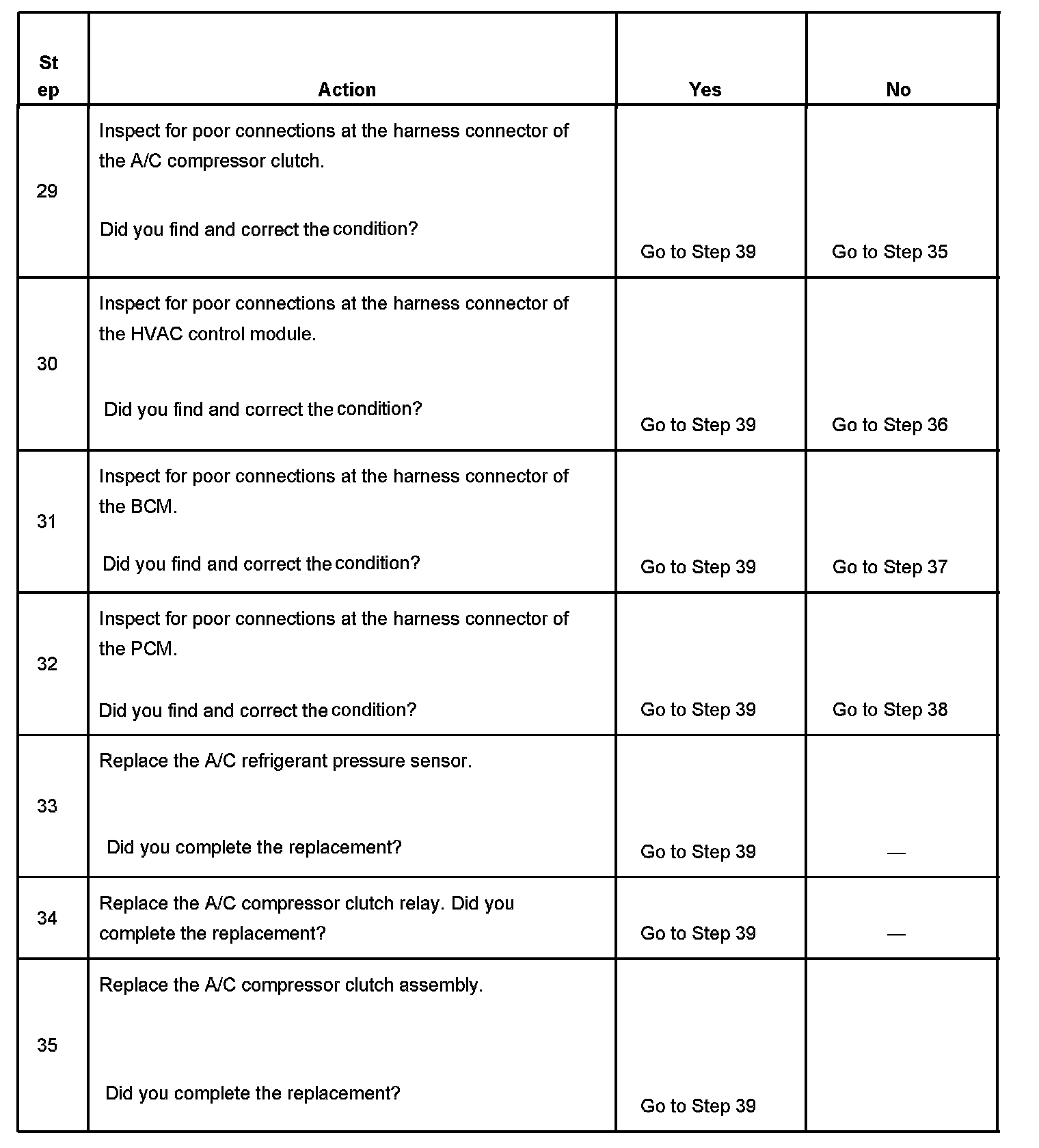

Steps 29-35:

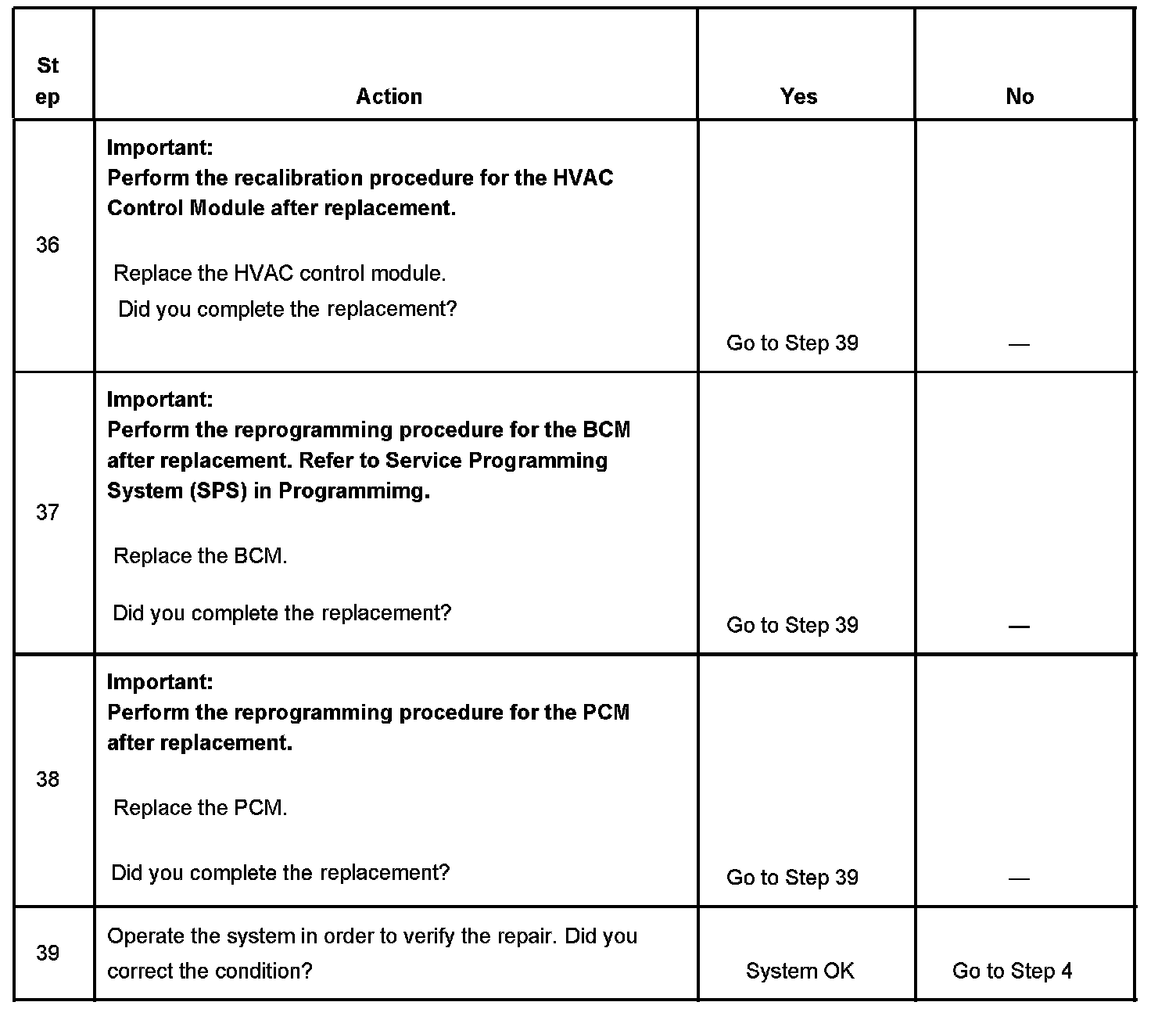

Steps 36-39:

The numbers below refer to the step numbers on the diagnostic table.
2. The A/C compressor relay output is disabled if engine coolant temperature is above 128°C (262°F). The instrument panel engine coolant indicator will indicate overheating.
3. Place the mode switch in any position except OFF, and place the air temperature control switch in a cold setting. Use the bi-level mode for consistent testing of the A/C system operation.
6. The HVAC control module is inoperative if the module does not respond to any operator control requests.
