AIR OUTLET DUCT REPLACEMENT - INSTRUMENT PANEL (I/P) - UPPER LEFT

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) assembly.
2. Disconnect the wire harness clip at the left air outlet duct.
3. Remove the left air outlet duct screws.




4. Remove the left air outlet duct.

INSTALLATION PROCEDURE

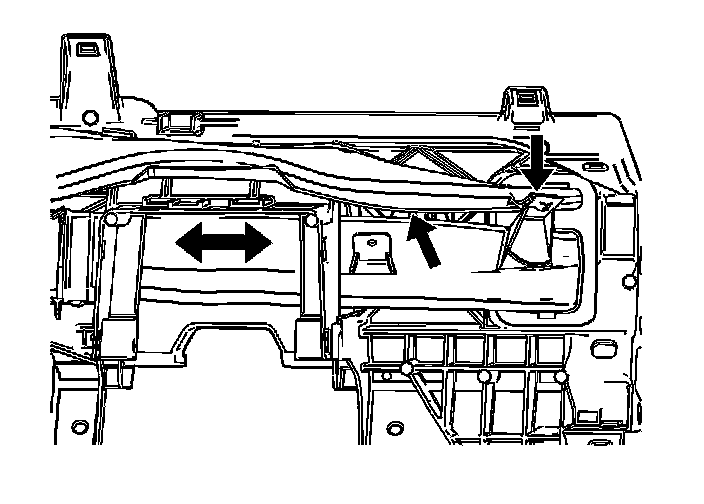

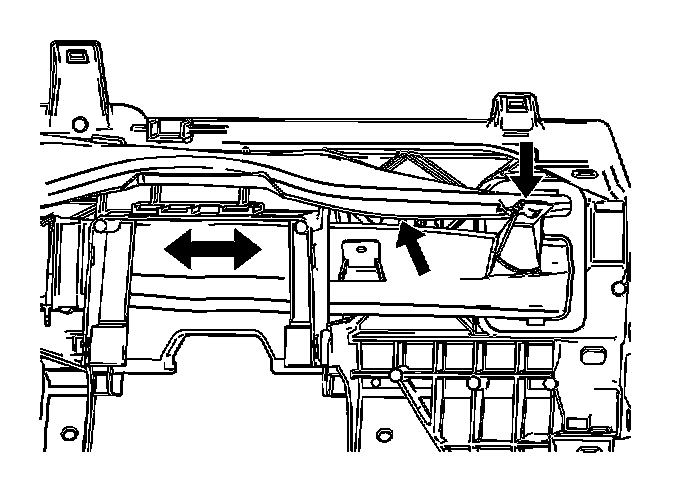

IMPORTANT: Align the left air outlet duct to the left air outlet duct extension.




1. Install the left air outlet duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the left air outlet duct screws.

Tighten
Tighten the left air outlet duct screws to 2.5 N.m (22 lb in).

3. Connect the wire harness clip at the left air outlet duct.
4. Install the I/P assembly.
