Exhaust Crossover Pipe: Service and Repair

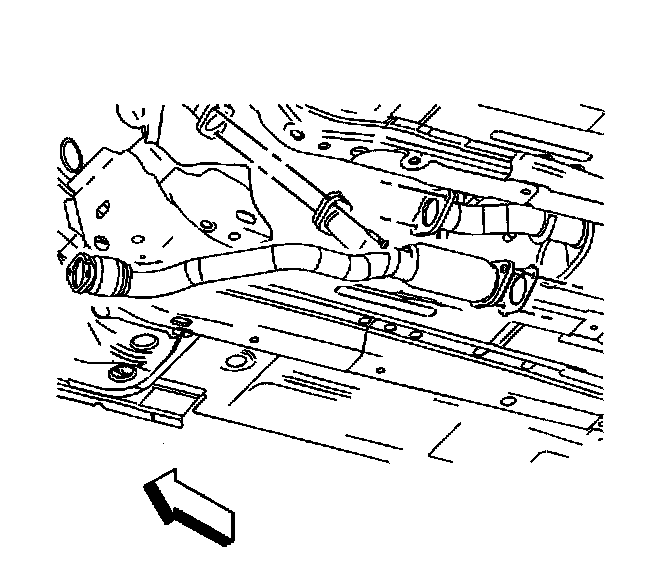

Exhaust Crossover Pipe ReplacementRemoval Procedure
1. Remove the exhaust crossover pipe nuts.
2. Remove the exhaust crossover pipe.
3. If any of the studs on the exhaust system break, they can be replaced in a manner similar to a wheel lug.
4. Using a hammer and drift, drive out the broken portion of the stud.
5. Install a new stud by driving the replacement stud flange using a ball pein hammer.
Installation Procedure
1. Using new gaskets, install the exhaust crossover pipe.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the exhaust crossover pipe nuts.
^ Tighten the nuts to 25 Nm (18 ft. lbs.).
