90. Engine Mount Support and Strut Bracket Installation

Engine Mount Support and Strut Bracket Installation

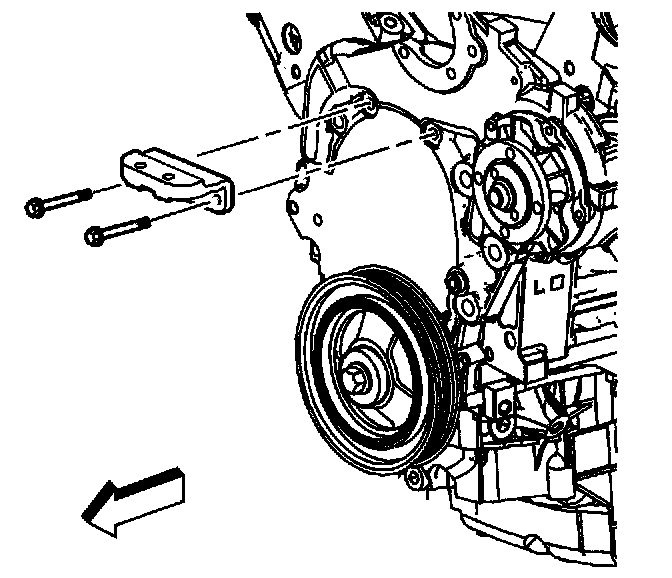

1. Install the engine mount support and strut bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount support and strut bracket bolts.
^ Tighten the engine mount support and strut bracket bolts to 25 Nm (18 ft. lbs.).
