70. Engine Front Cover Installation

Engine Front Cover Installation





1. Install the engine front cover gasket.

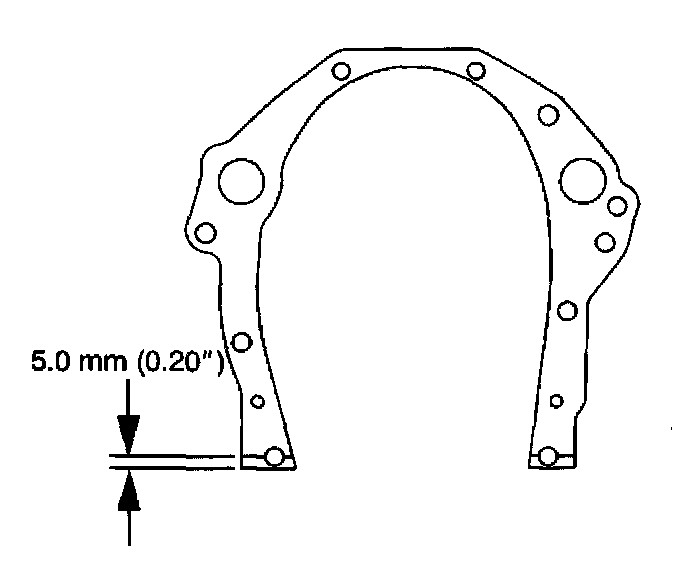

2. Apply sealer GM P/N 12346004 (Canadian P/N 10953480) or equivalent to both sides of the lower tabs of the engine front cover gasket. Apply the sealer no less than 5.0 mm (0.20 inch) wide.

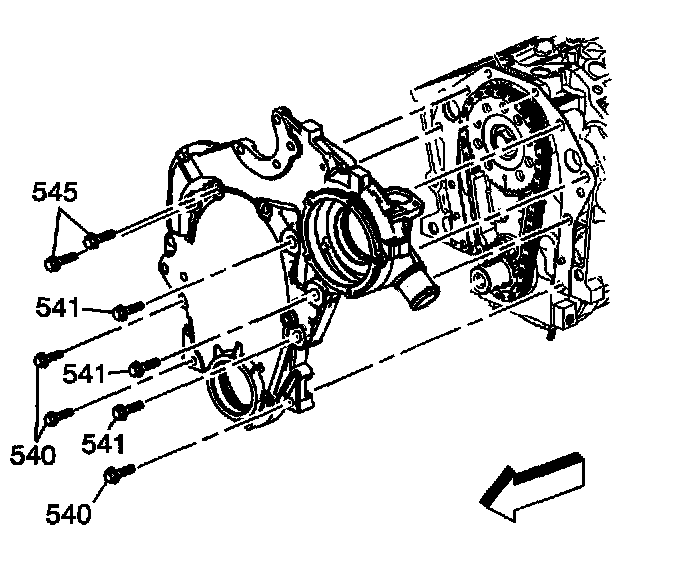

3. Install the engine front cover.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the engine front cover bolts (545).
^ Tighten the engine front cover bolts to 27 Nm (20 ft. lbs.).
5. Install the engine front cover bolts (540, 541).
^ Tighten the engine front cover bolts to 55 Nm (41 ft. lbs.).
