Cooling System: Locations

Cooling System Component Views

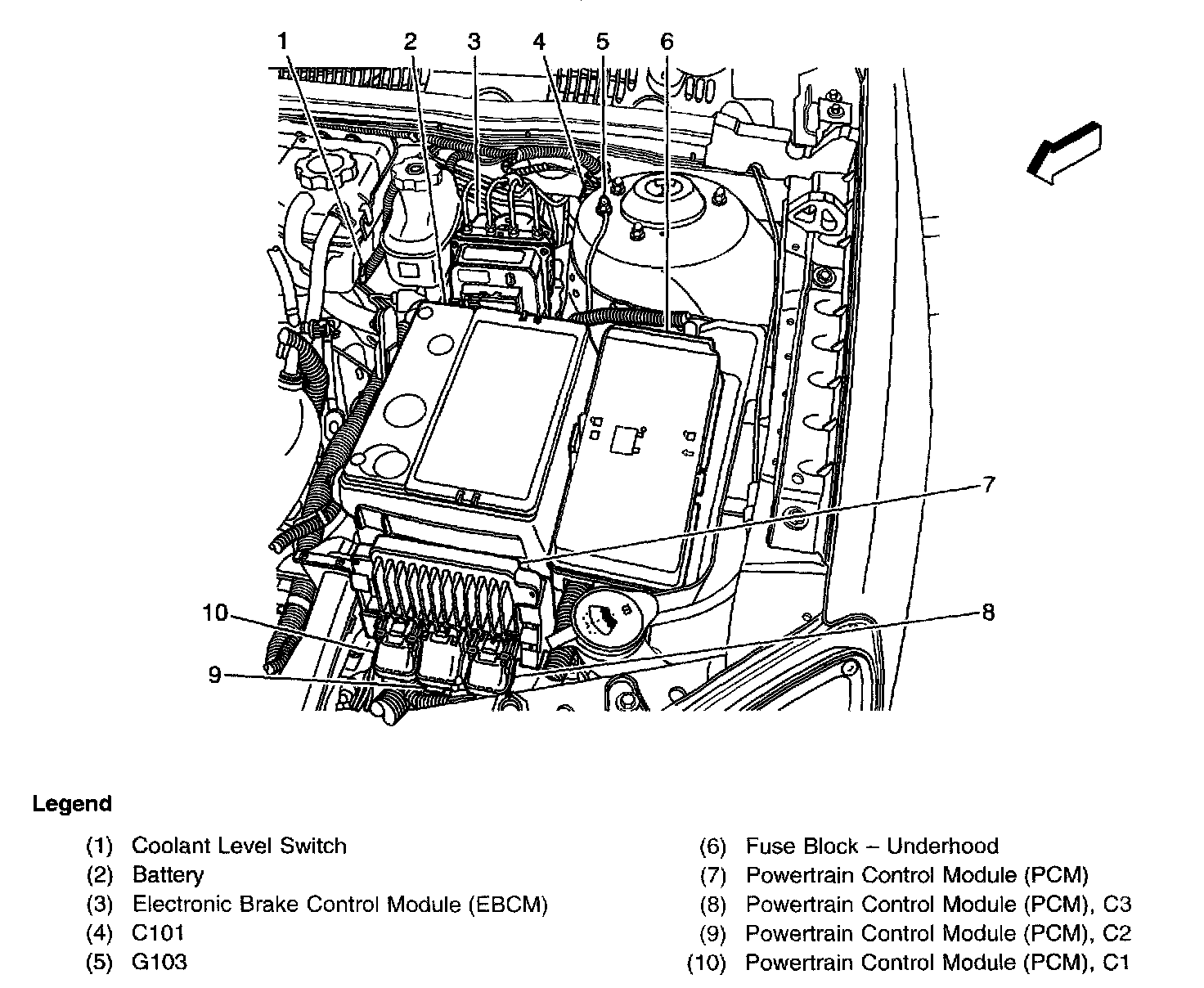

Front of Engine Compartment

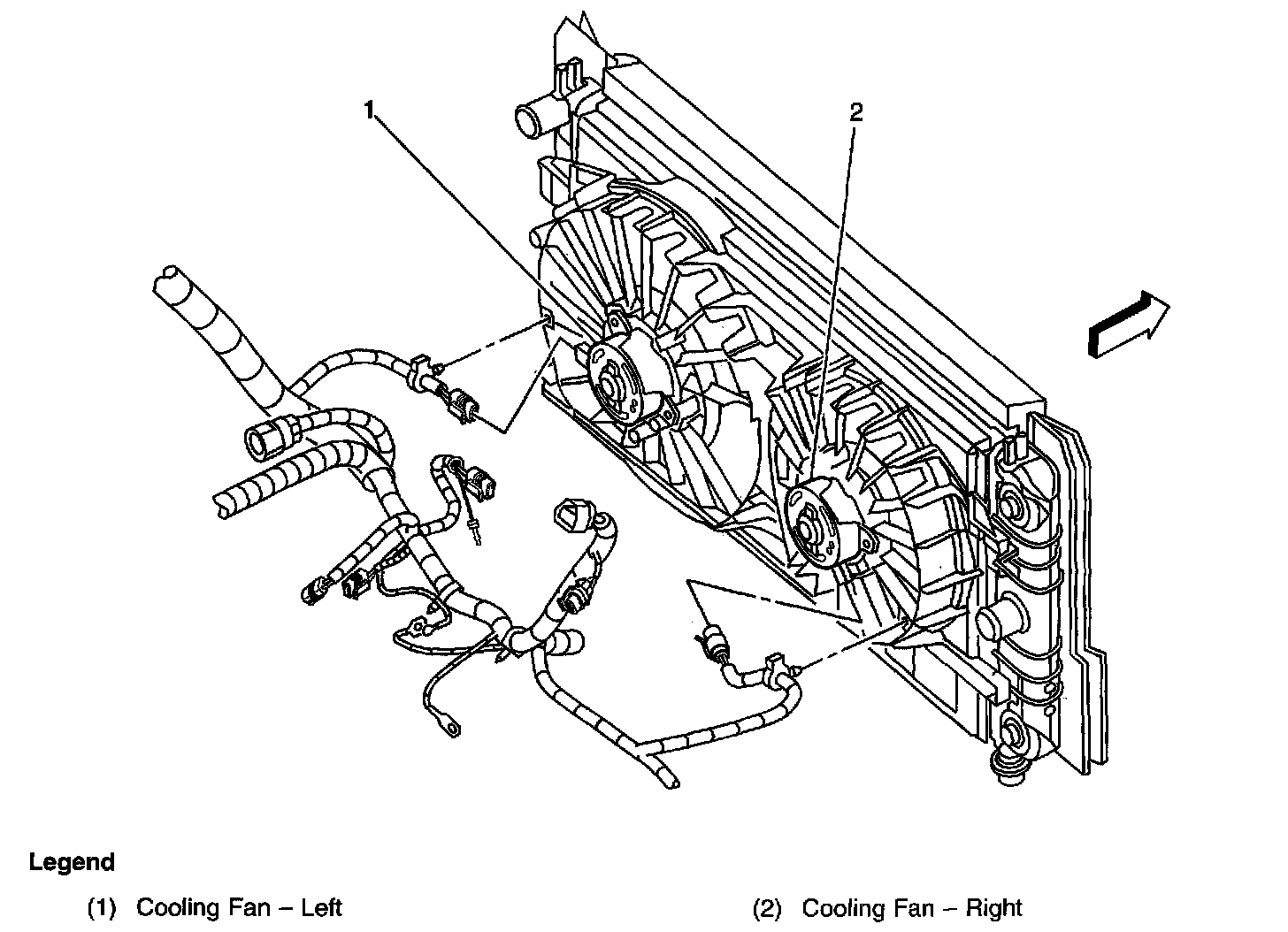

Left Rear of Engine Compartment
