Home
>>
Chevrolet
>>
2004
>>
Malibu V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Brake Switch - TCC
Brake Switch - TCC

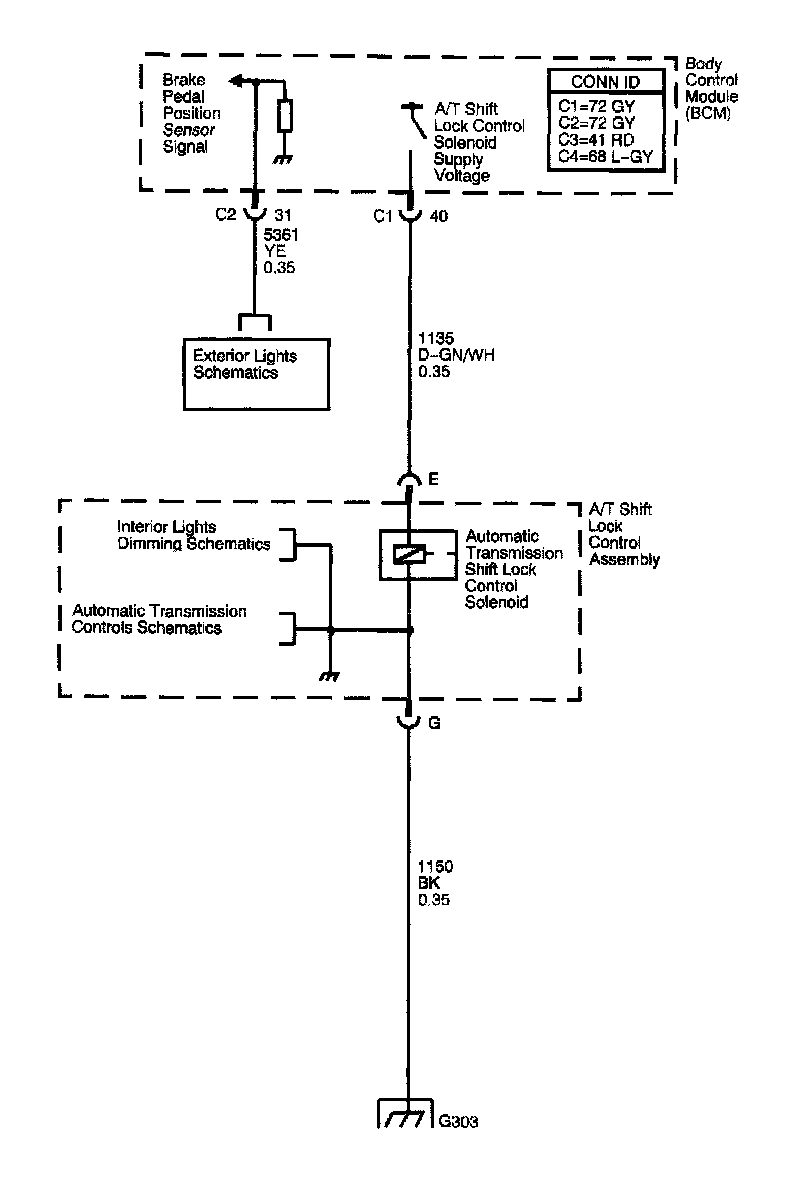

Automatic Transmission Shift Lock Control Diagrams:
