Home
>>
Chevrolet
>>
2004
>>
Malibu V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Systems
>>
System Diagram
System Diagram

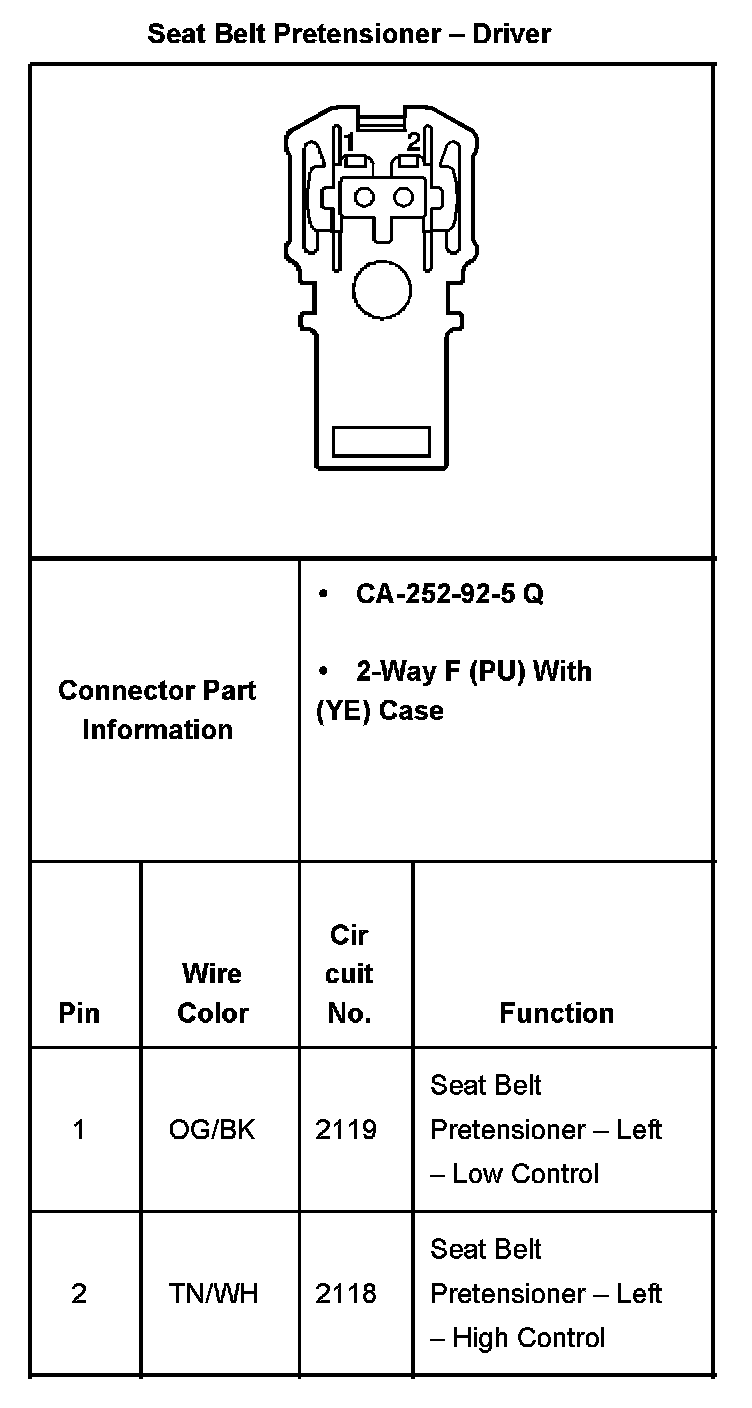

Seat Belt Pretensioner - Driver:

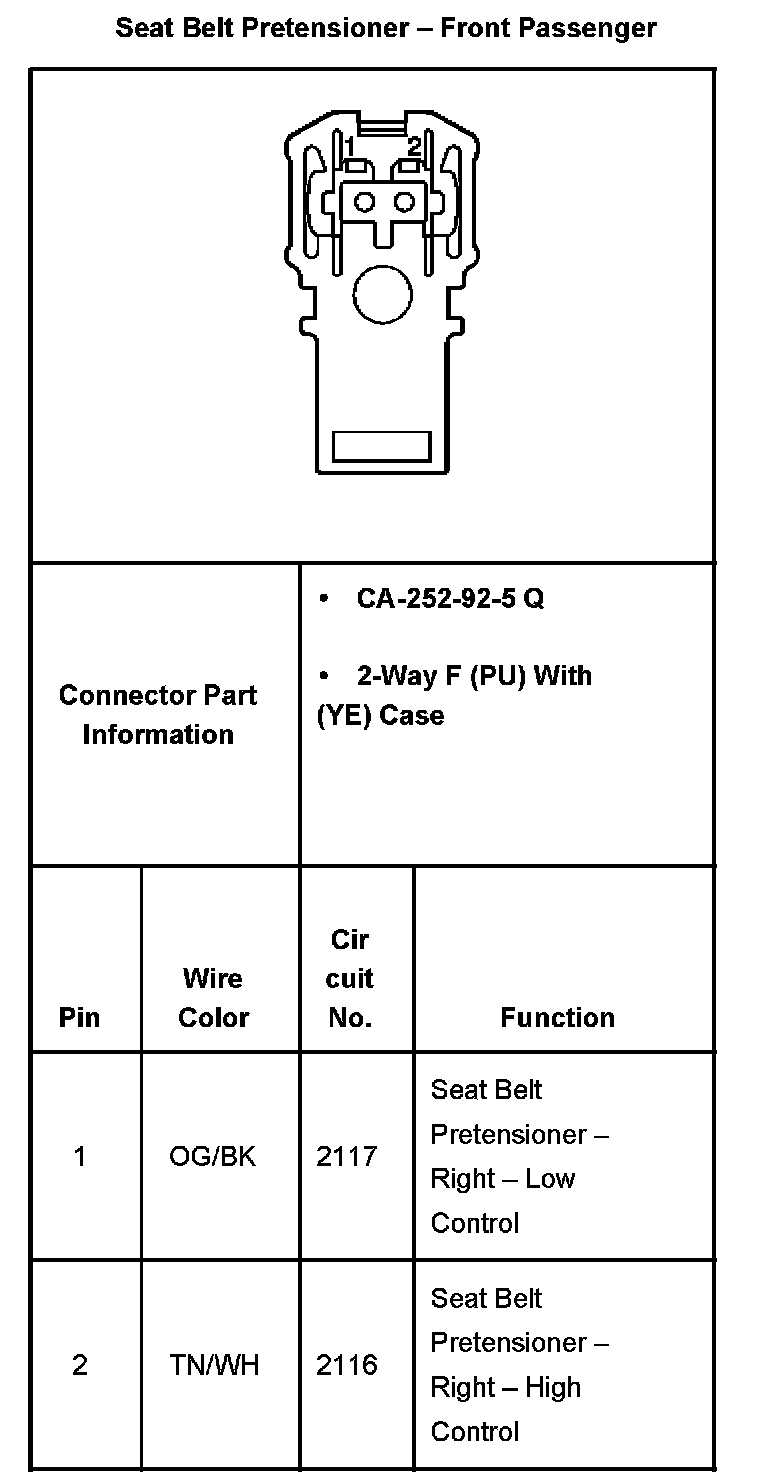

Seat Belt Pretensioner - Front Passenger:
