Power Seat Motor
Power Seat Motor
Seat Front Vertical Motor:

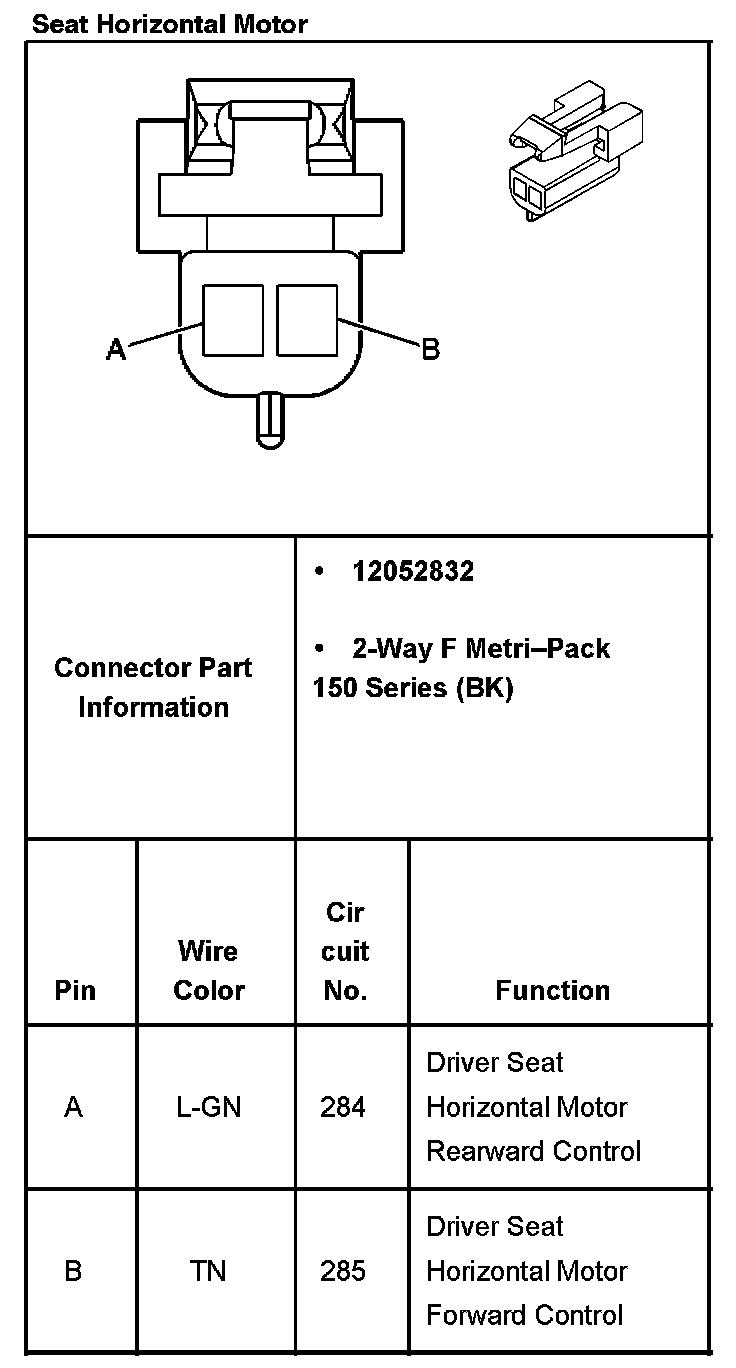

Seat Horizontal Motor:

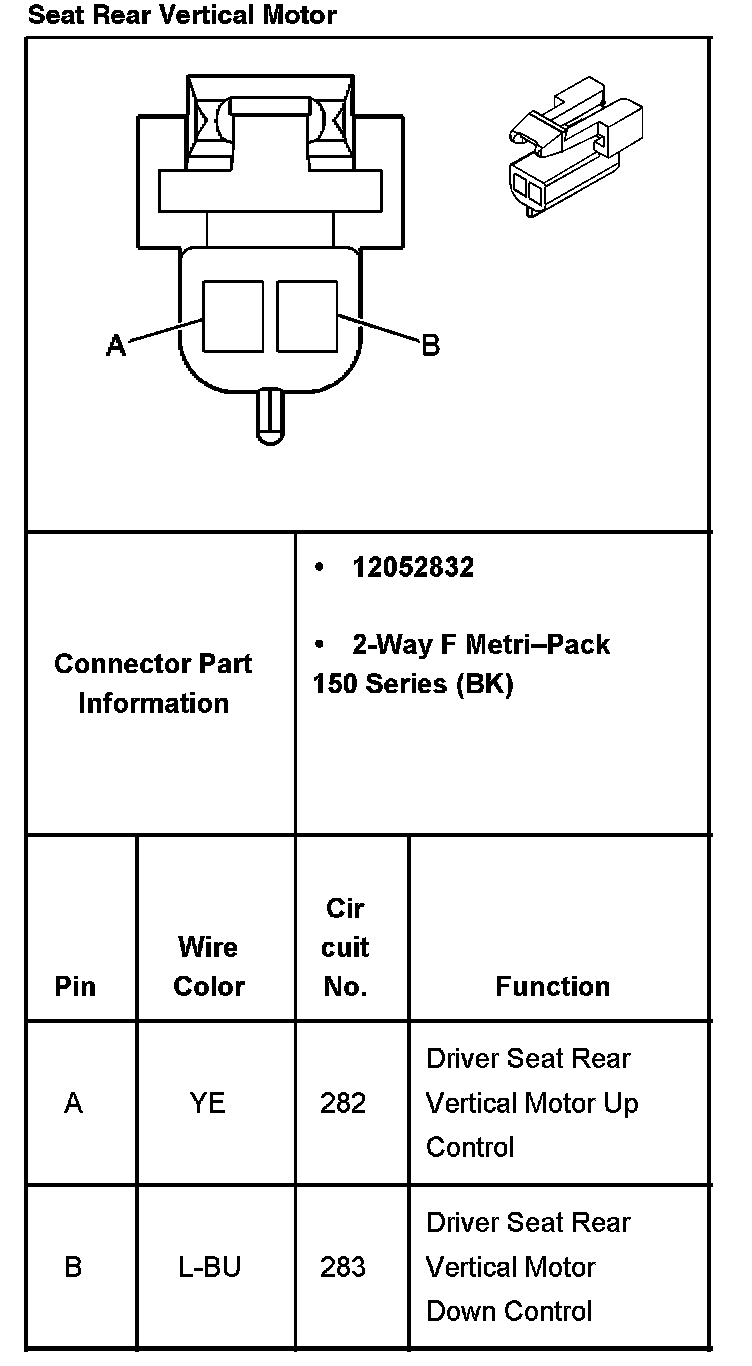

Seat Rear Vertical Motor:

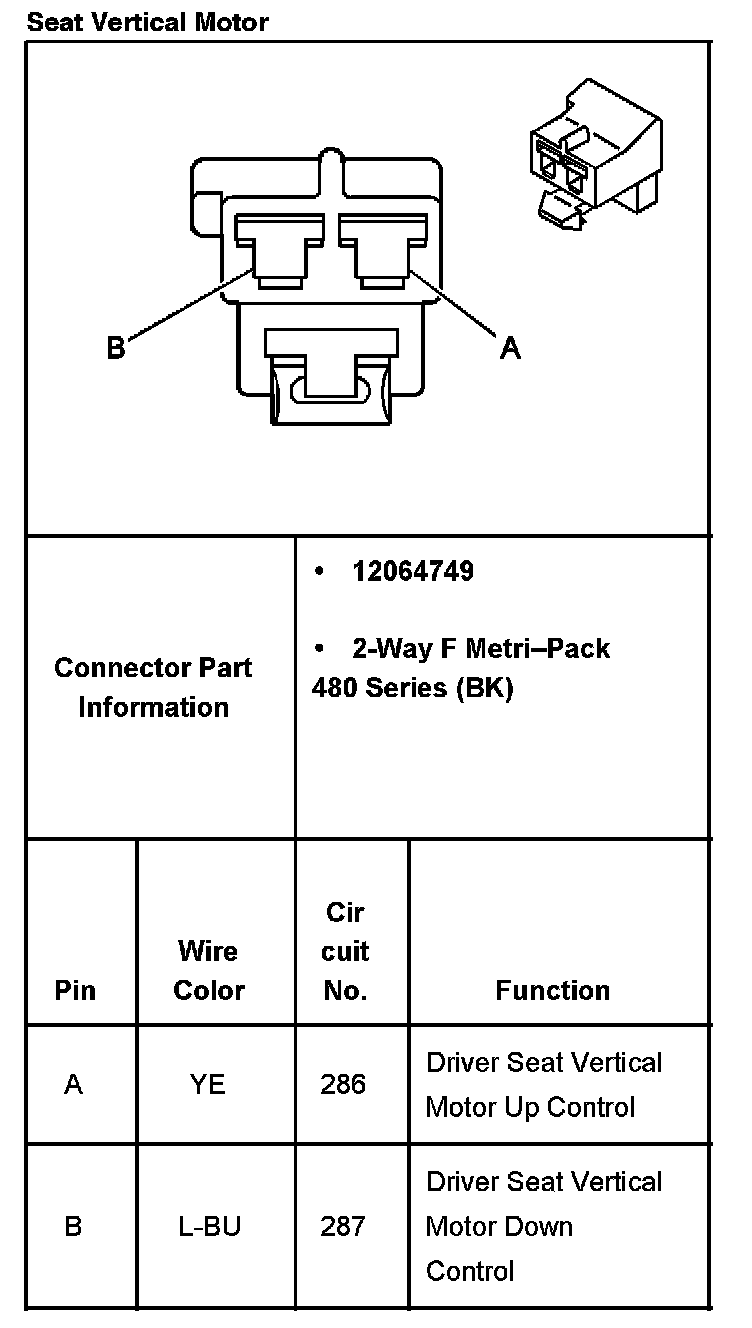

Seat Vertical Motor:
