Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Malibu V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pedal Positioning Sensor
Pedal Positioning Sensor

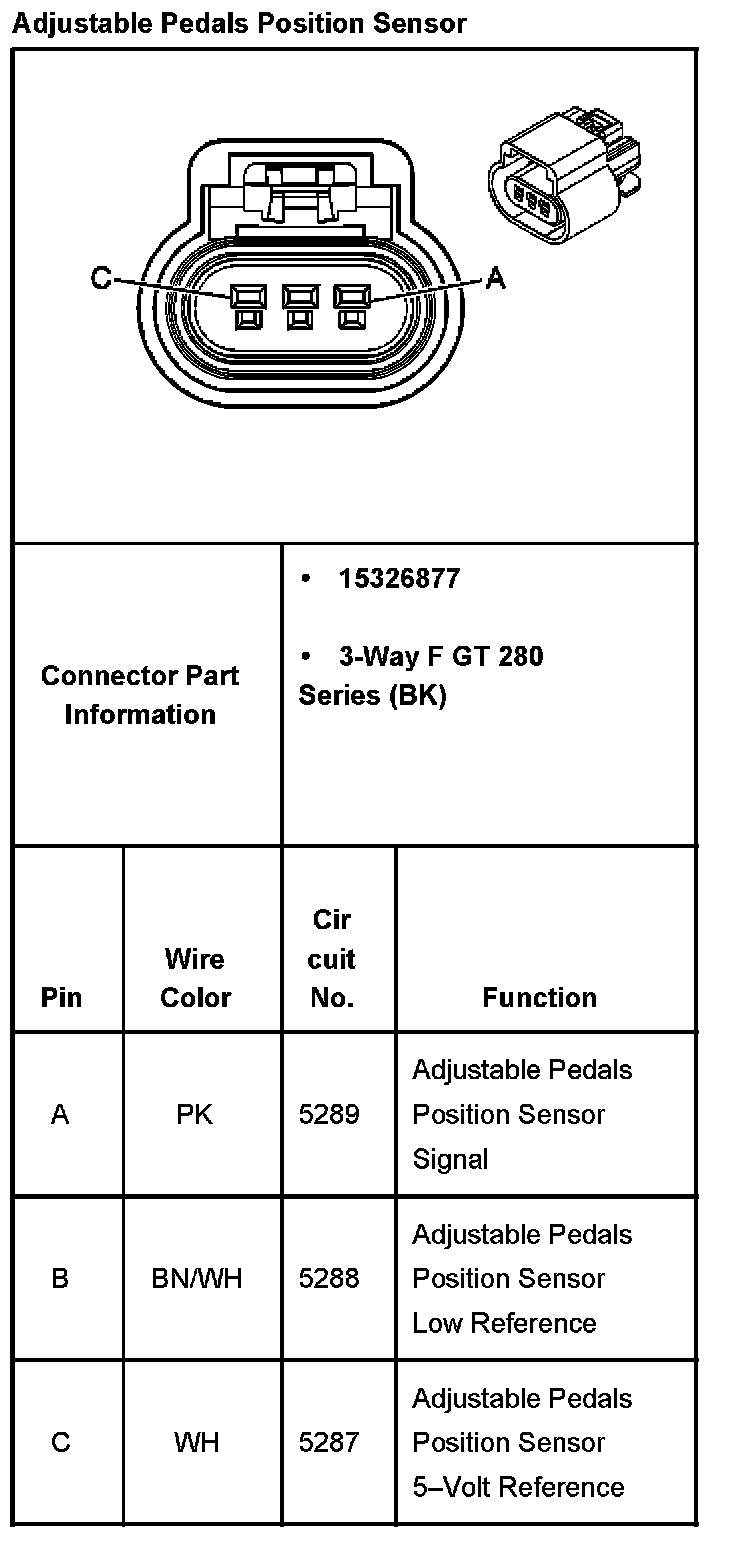

Adjustable Pedals Position Sensor:

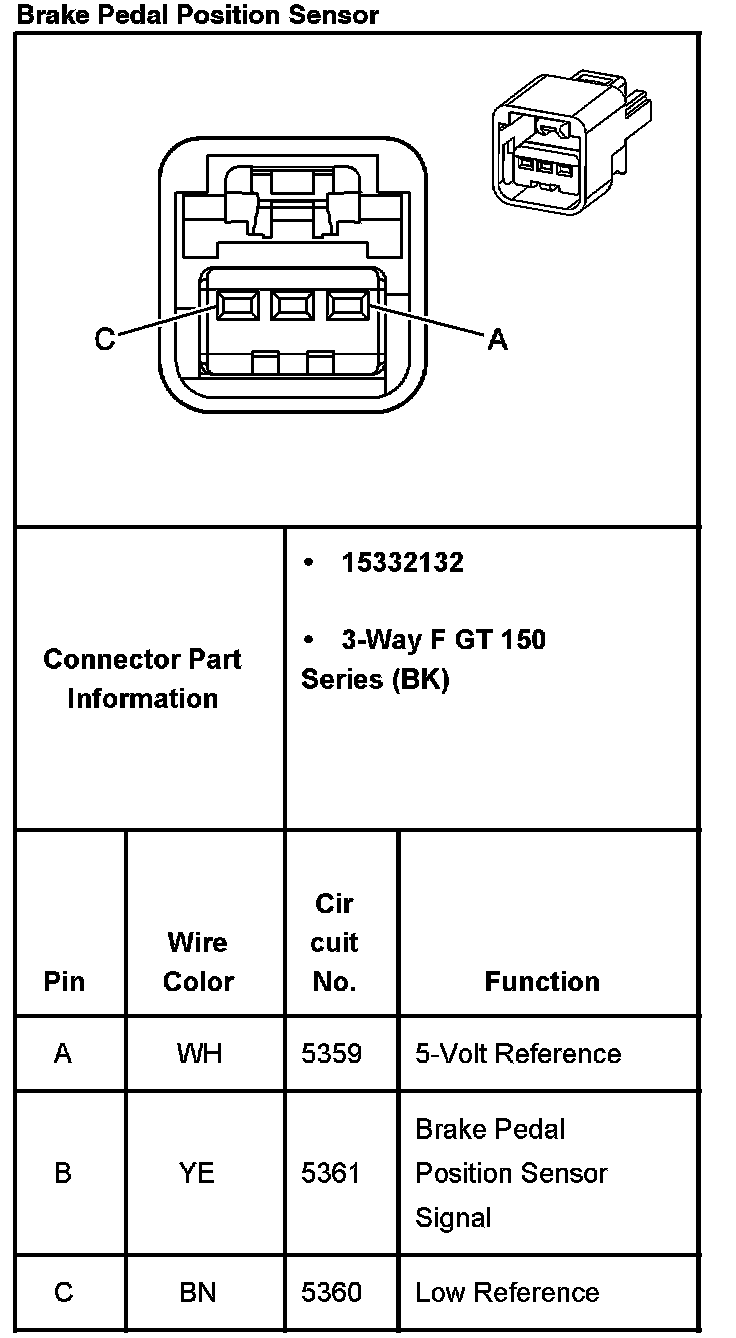

Brake Pedal Position Sensor:
Brake Pedal Position Sensor:
