Oxygen Sensor
Oxygen Sensor

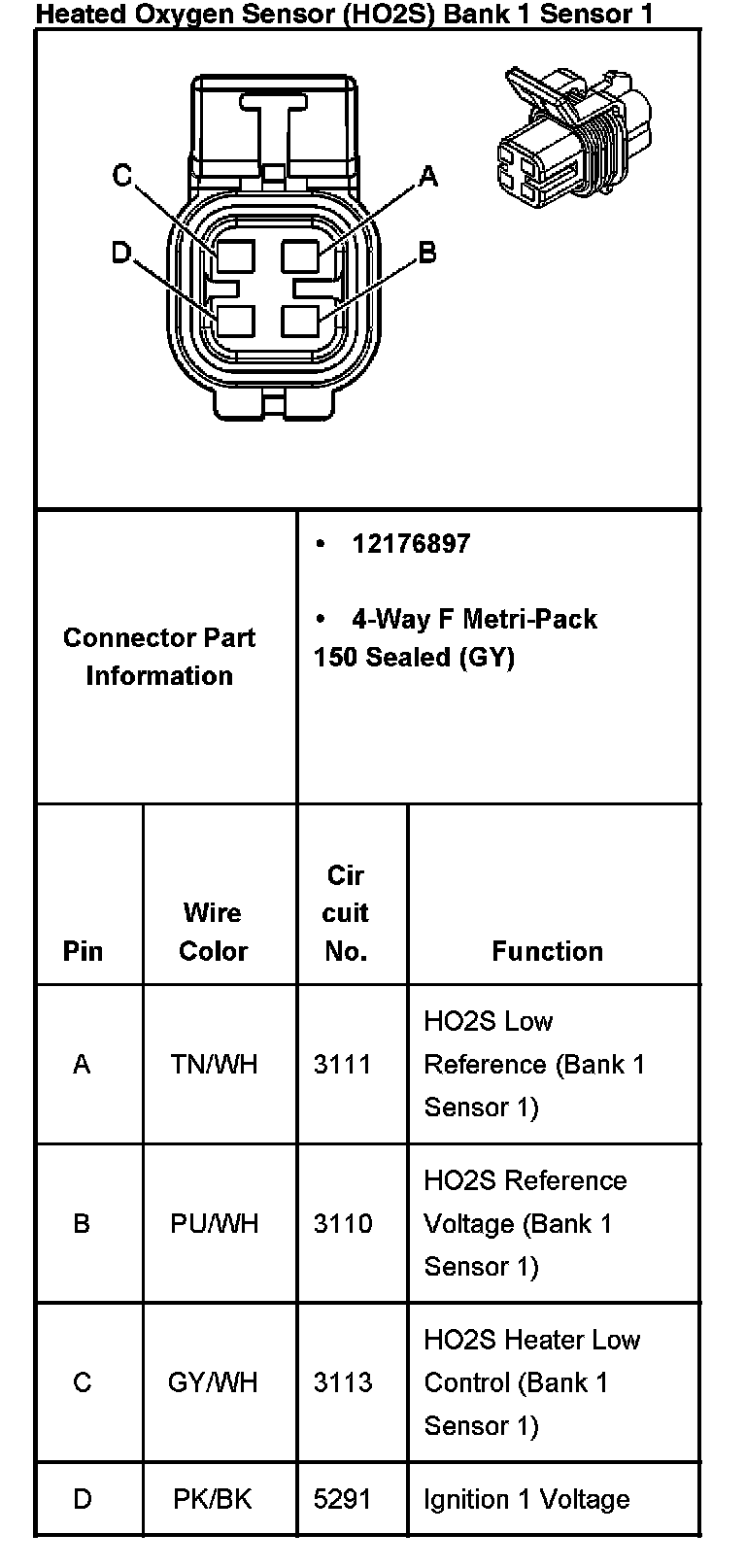

Heated Oxyged Sensor (HO2S)Bank 1 Sensor 1:

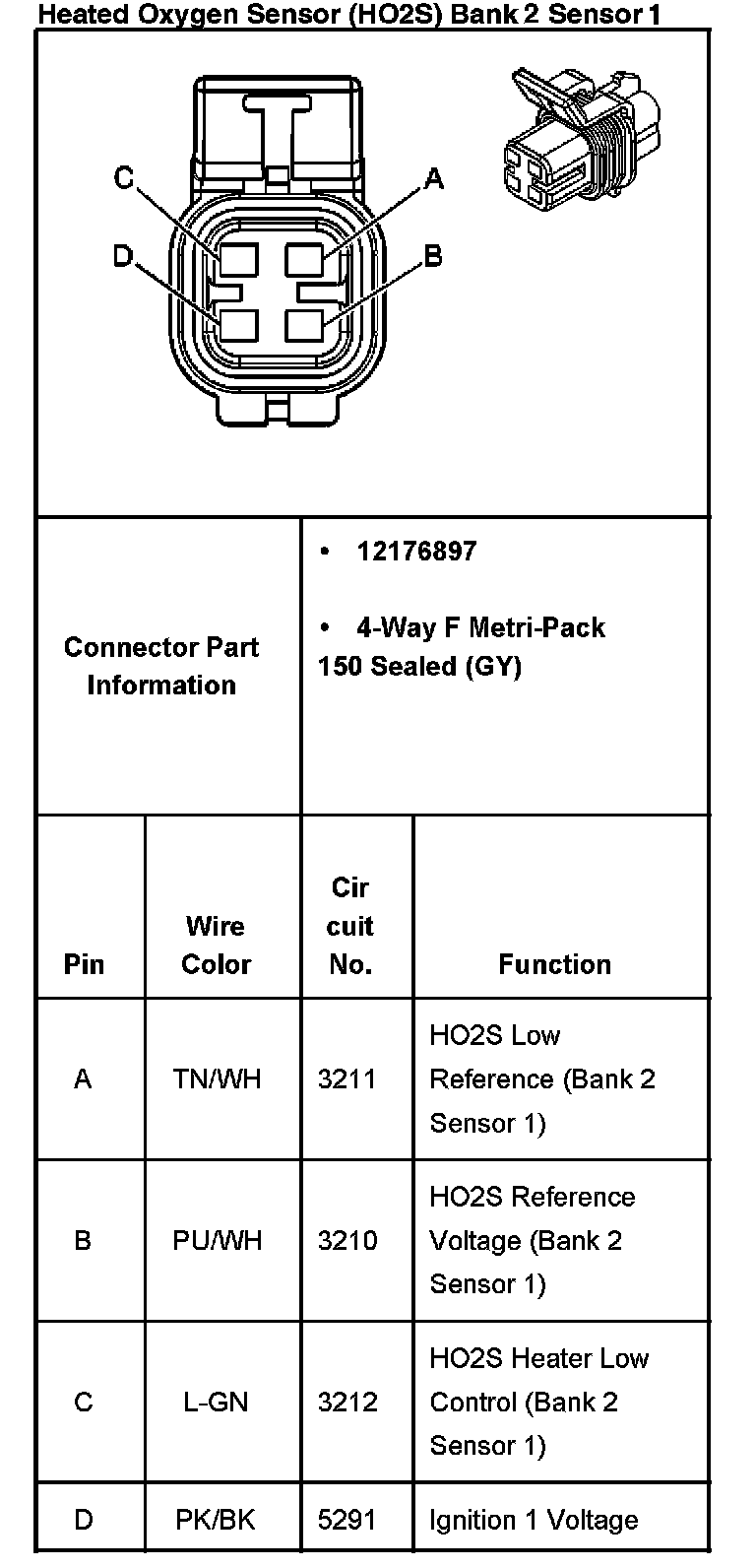

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1:

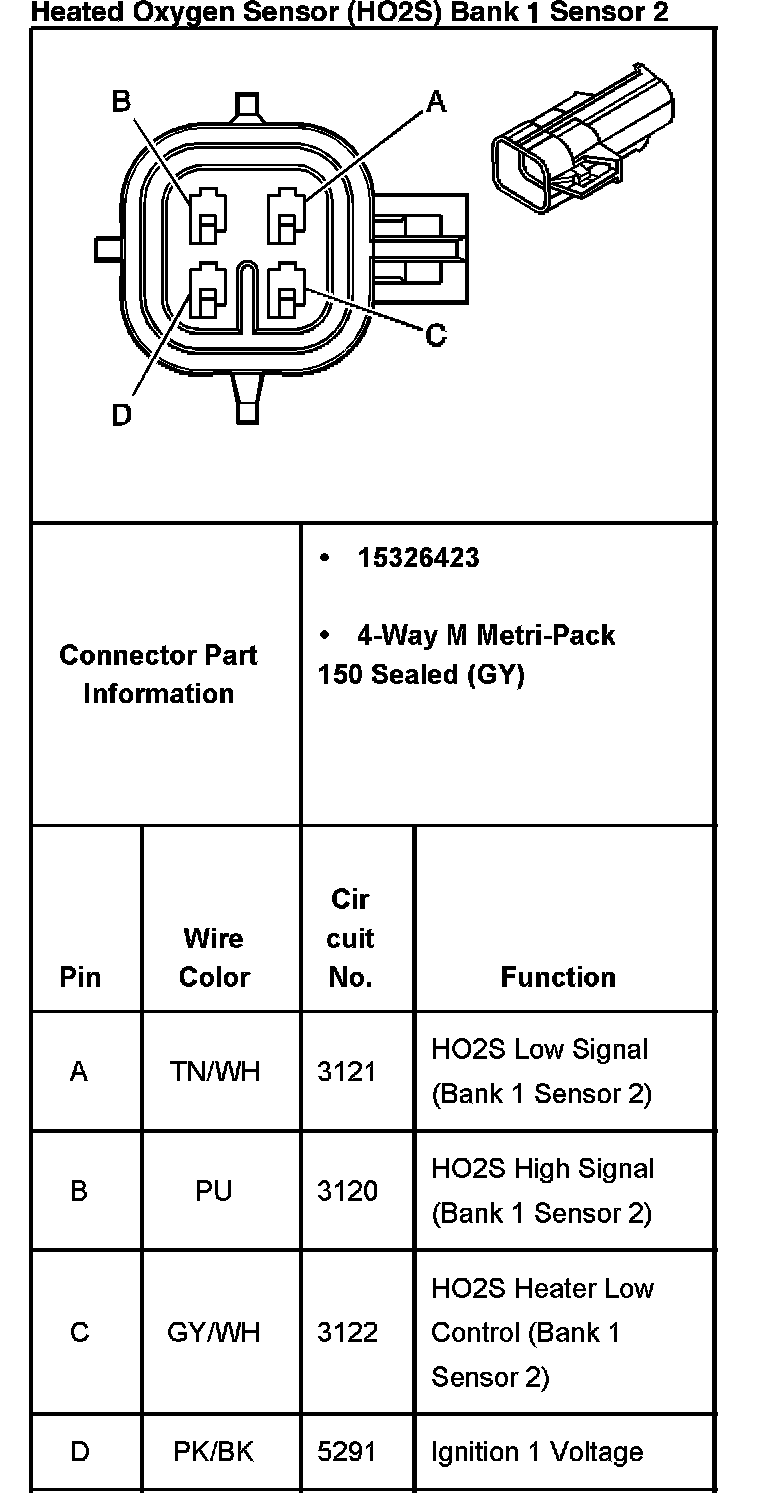

Heated Oxyged Sensor (HO2S) Bank 1 Sensor 2:
Heated Oxyged Sensor (HO2S) Bank 2 Sensor 2:
