Discharge Air Temperature Sensor / Switch, HVAC
>>

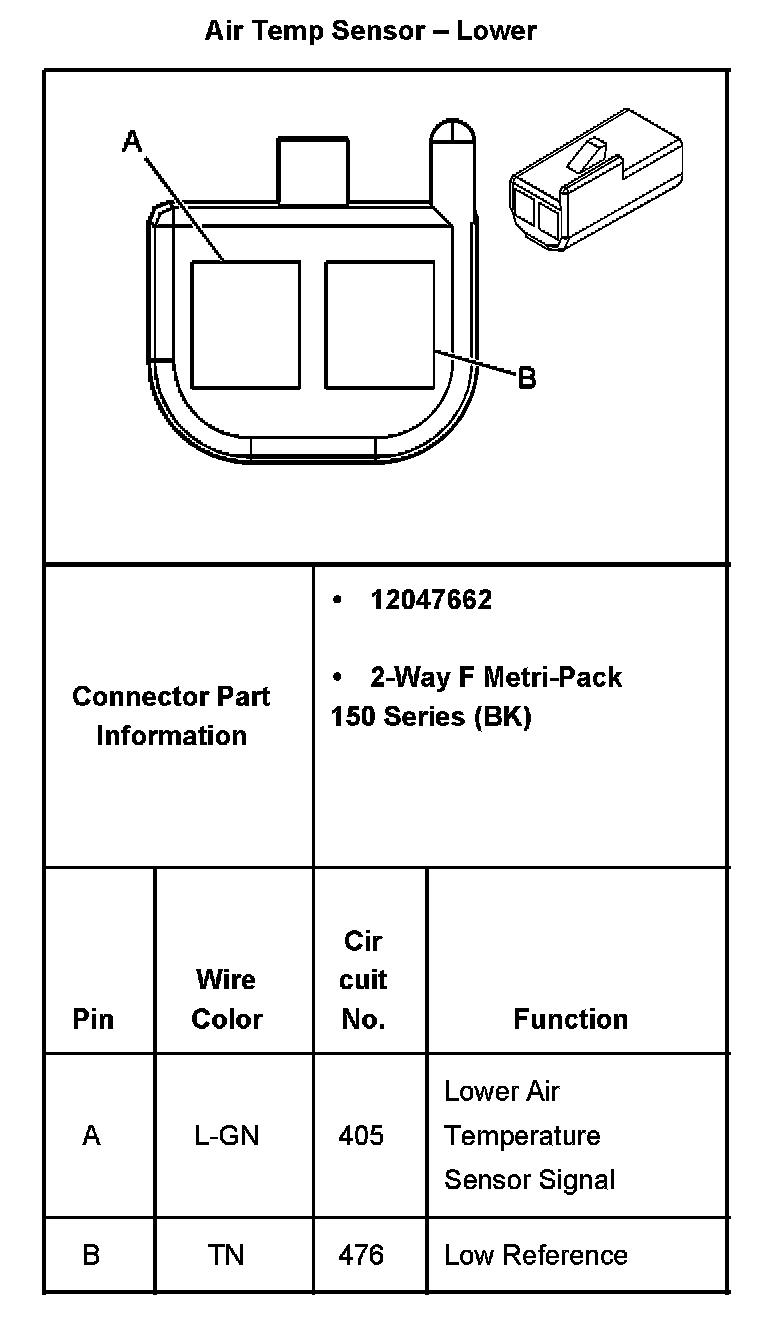

Air Temp Sensor - Lower
Air Temp Sensor - Lower
Air Temp Sensor - Lower:
